Driver Side Door UNLOCK Detection Switch Circuit: Wiring Diagram

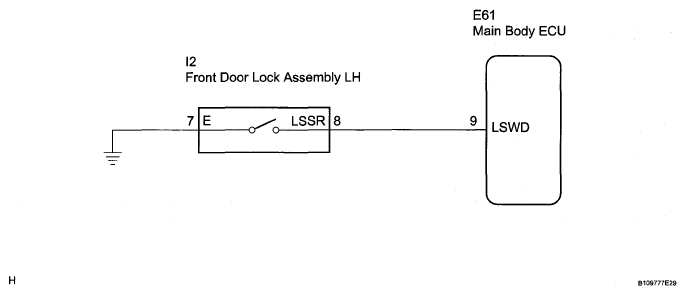

Fig 1: Driver Side Door UNLOCK Detection Switch Circuit - Wiring Diagram

G05252667

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
