Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - TELEVISION CAMERA ASSEMBLY)
    1. Disconnect the E63 connector from the multi-display.
    2. Disconnect the R15 connector from the television camera assembly.

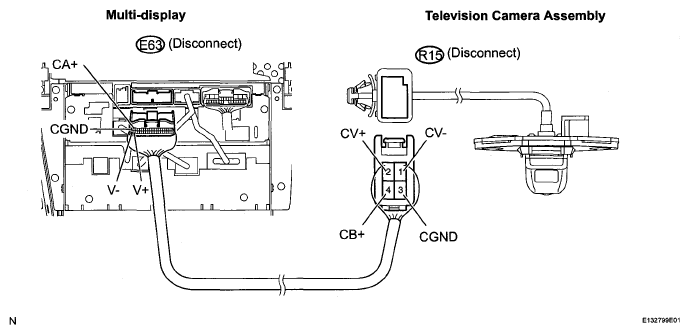

      Fig 1: Disconnecting E63 Connector From Multi-Display
      G05253461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection (Terminal No.) Condition Specified condition
      CB+ (R15-4) - CA+ (E63-13) Always Below 1 Ω
      CGND (R15-3) - CGND (E63-14) Always Below 1 Ω
      CV+(R15-2) - V+(E63-27) Always Below 1 Ω
      CV-(R15-1) - V-(E63-28) Always Below 1 Ω
      CB+ (R15-4) - Body ground Always 10 kΩ or higher
      CGND (R15-3) - Body ground Always 10 kΩ or higher
      CV+ (R15-2) - Body ground Always 10 kΩ or higher
      CV- (R15-1) - Body ground Always 10 kΩ or higher

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step.

  2. INSPECT MULTI-DISPLAY
    1. Reconnect the multi-display E63 connector.

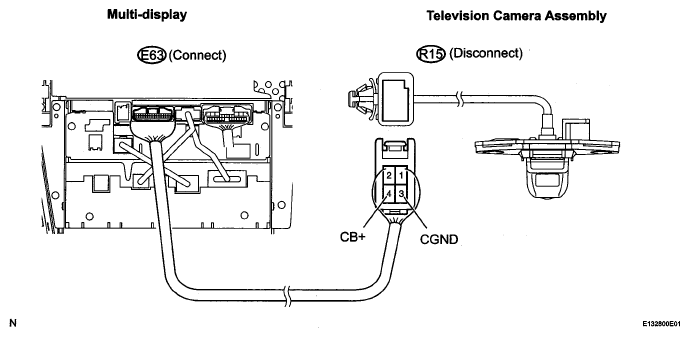

      Fig 2: Disconnecting E63 Connector From Multi-Display
      G05253462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified condition
      CB+ (R15-4) - CGND (R15-3) Engine switch on (IG)
      Shift lever R position
      Approx. 6 V

    NG: REPLACE MULTI-DISPLAY

    OK: Go to next step.

  3. INSPECT TELEVISION CAMERA ASSEMBLY
    1. Reconnect the television camera assembly R15 connector.

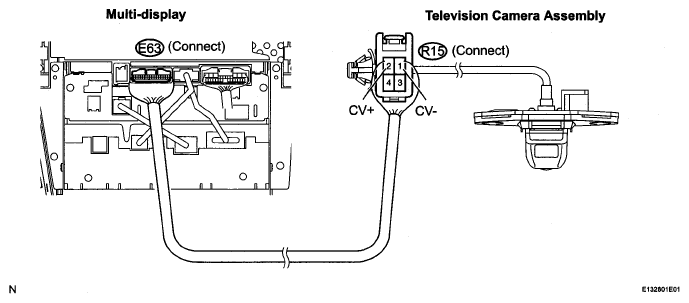

      Fig 3: Disconnecting E63 Connector From Multi-Display
      G05253463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the waveform of the television camera assembly using an oscilloscope.
      Fig 4: Identifying Oscilloscope Waveform
      G04967064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard waveform

      TESTER CONNECTION SPECIFIED CONDITION

      Tester connection Condition Specified condition
      CV+(R15-2) - CV-(R15-1) Engine switch on (IG)
      Shift lever R position
      Shown in the illustration

    NG: REPLACE TELEVISION CAMERA ASSEMBLY

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
