Pattern Select Switch Circuit (Snow): Wiring Diagram

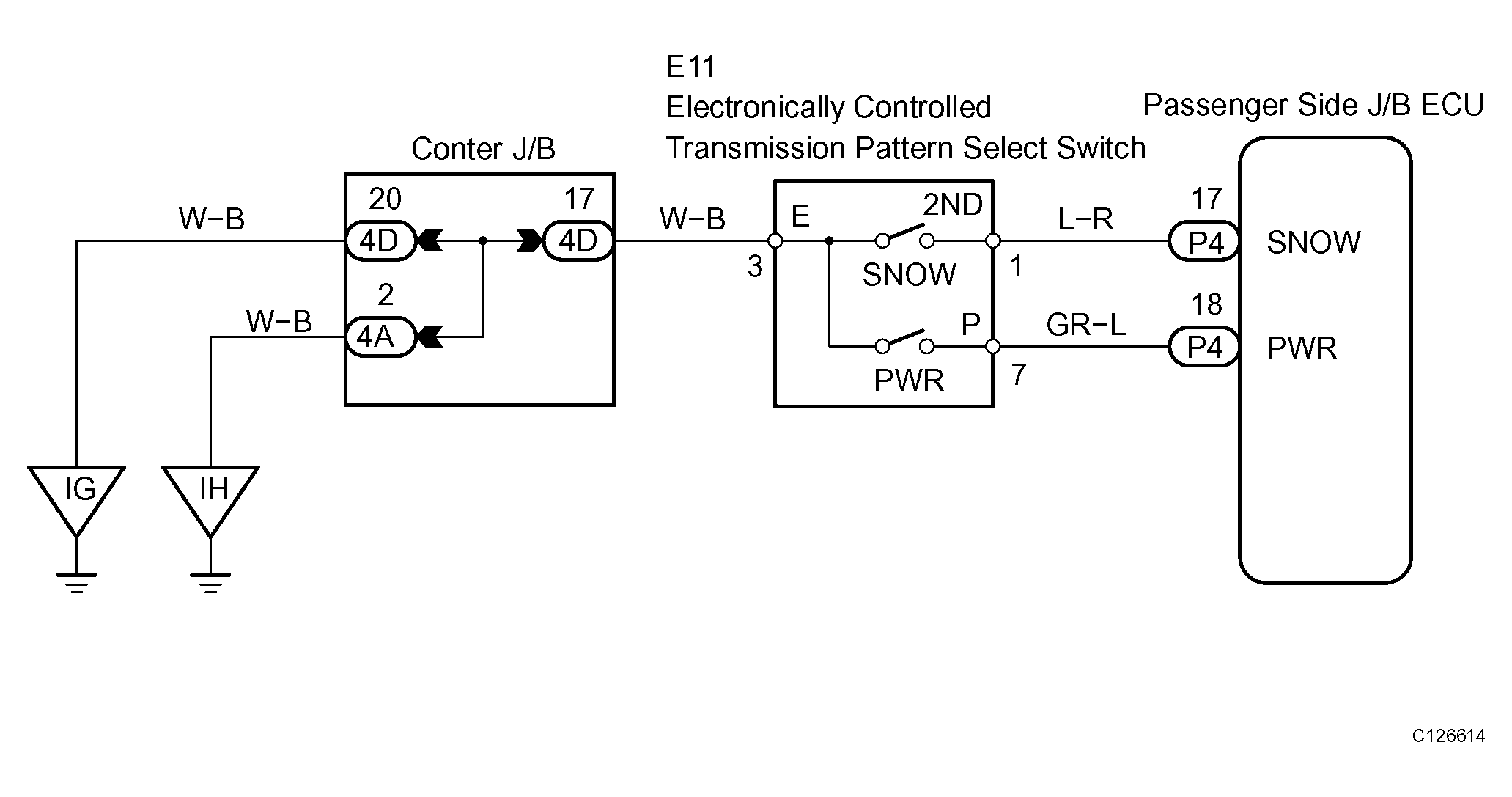

Fig 1: Wiring Diagram - Pattern Select Switch Circuit (SNOW)

G04105541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
