Pattern Select Switch Circuit (PWR): Wiring Diagram

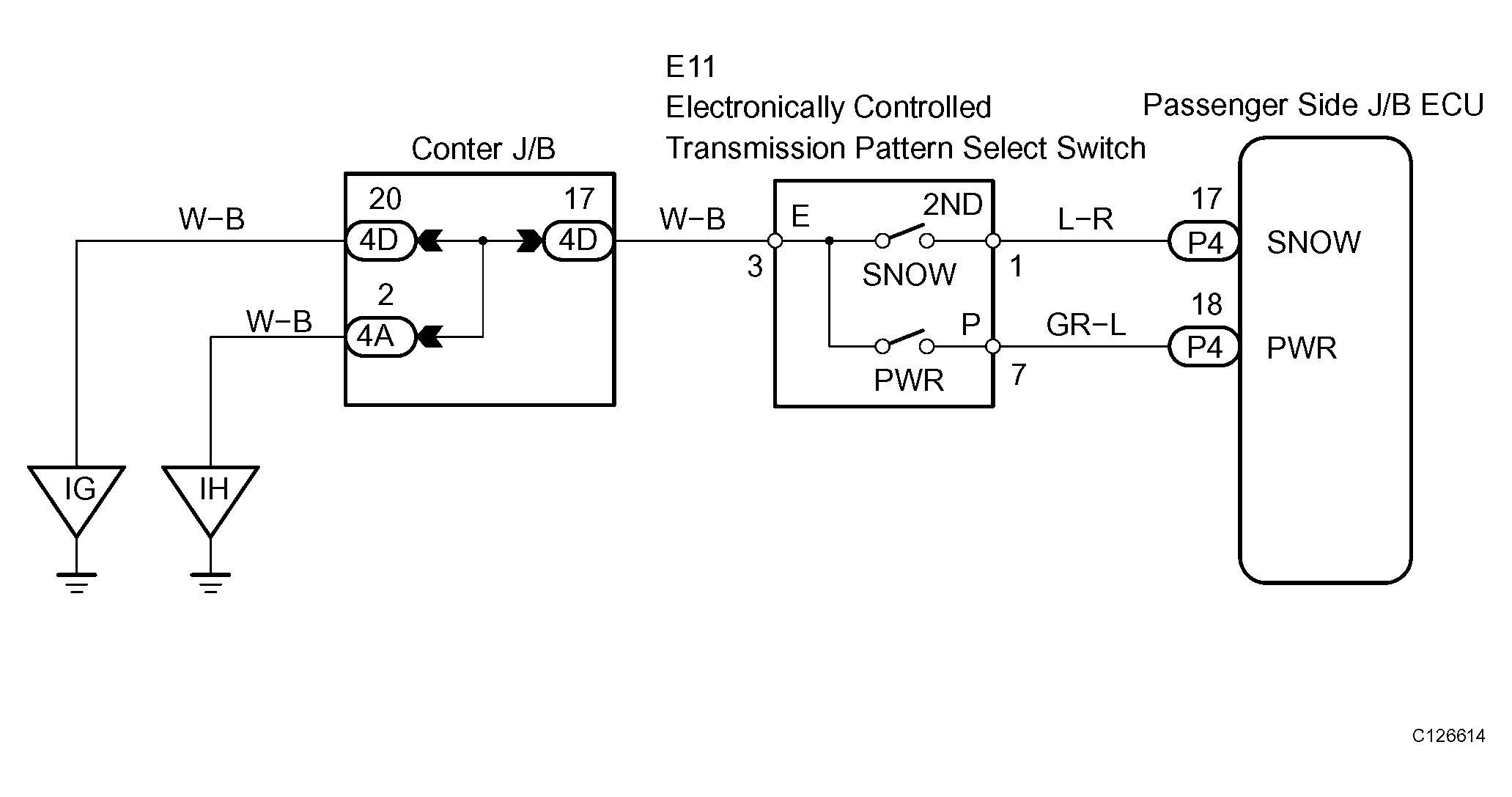

Fig 1: Wiring Diagram - Pattern Select Switch Circuit (PWR)

G04105537

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
