System Diagram

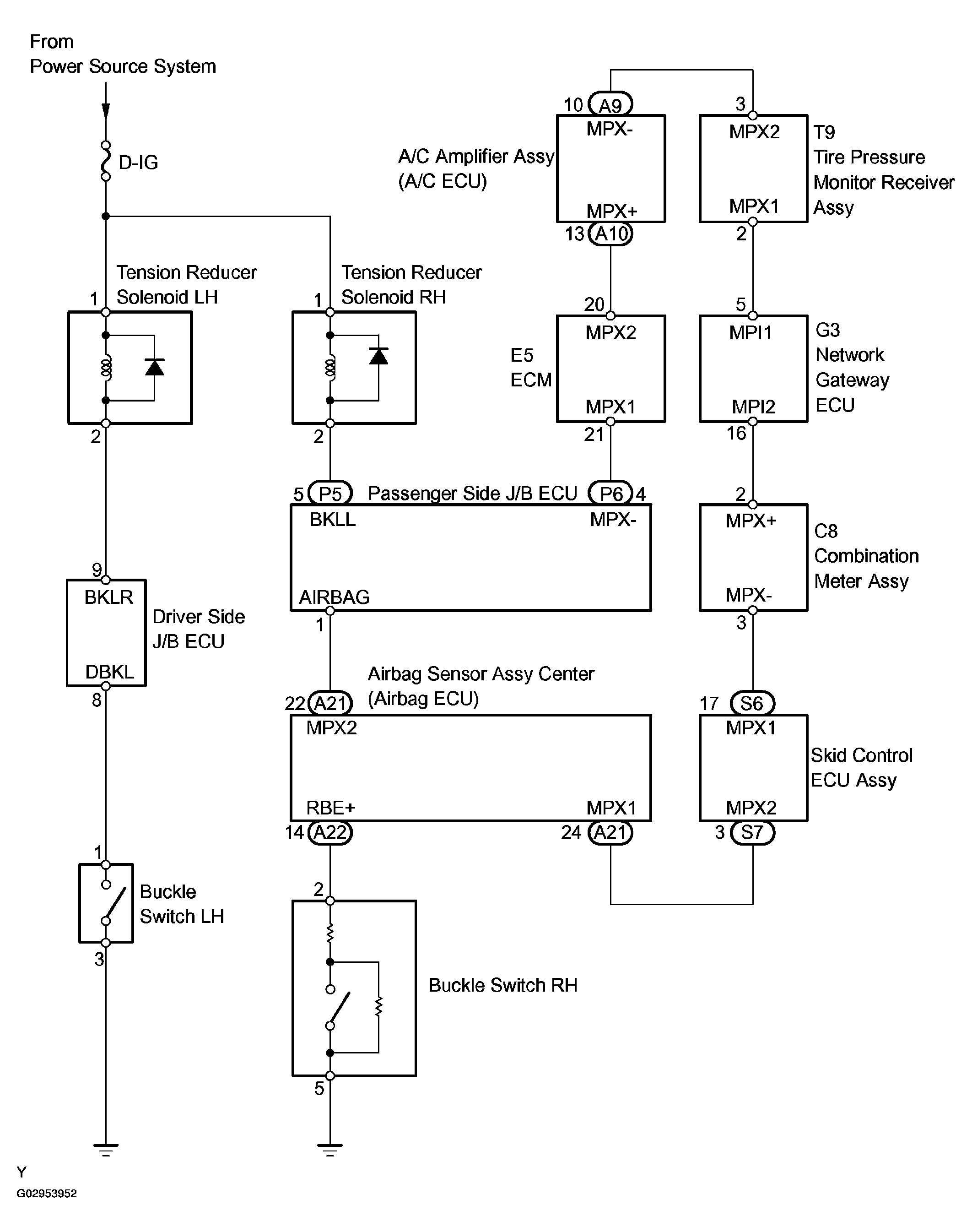

Fig 1: Seat Belt Tension Reducer System Diagram

G02953952

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
