Inspection Procedure

  1. READ DATA LIST (STOP LAMP SWITCH)
    1. Check the DATA LIST for proper functioning of the stop lamp switch.

      ECM (Cruise control):

      Fig 1: Reading Data List (Stop Lamp Switch) Table
      G02954999Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      OK: Display changes according to brake pedal operation described in  Fig 1  above.

      HINT:

      • Stop lamp SW1 has a function to disconnect the connection (OFF) when the pedal is depressed. However, the hand-held tester displays ON, as the ECM performs control using reverse logic.
      • Stop lamp SW1 indicates the input of ST1- terminal, and stop lamp SW2 indicates the input of STP terminal.
    1. NG: Go to step   2
    2. OK: REPLACE ECM (See  REPLACEMENT  )
  2. INSPECT STOP LAMP SWITCH ASSY
    1. Disconnect the stop lamp switch connector.
    2. Measure the resistance of the switch.

      Standard:

      STOP LAMP SWITCH ASSY SPECIFIED CONDITION

      Tester Connection Switch Condition Specified Condition
      1 - 2 Pin not pushed (Brake pedal depressed) Below 1 ohms
      3 - 4 Pin not pushed (Brake pedal depressed) 10 k ohms or higher
      1 - 2 Pin pushed (Brake pedal released) 10 k ohm or higher
      3 - 4 Pin pushed (Brake pedal released) Below 1 ohms
      Fig 2: Inspecting Stop Lamp Switch Assy
      G02955000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE STOP LAMP SWITCH ASSY (See  BRAKE PEDAL SUB-ASSY  )
    2. OK: Go to next step.
  3. CHECK WIRE HARNESS (ECM - BODY GROUND)
    1. Disconnect the E5 and E6 ECM connectors.
    2. Turn the ignition switch ON.
    3. Measure the voltage of the wire harness side connectors.

      Standard:

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Brake Pedal Condition Specified Condition
      E5-4 (STP) - Body ground Depressed 10 to 14 V
      E5-4 (STP) - Body ground Released Below 1 V
      E6-8 (ST1-) - Body ground Depressed Below 1 V
      E6-8 (ST1-) - Body ground Released 10 to 14 V
      Fig 3: Disconnecting E5 And E6 ECM Connectors
      G04107240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Result:

      RESULT CHART

      Result Proceed to
      OK A
      NG (STP terminal is NG) B
      NG (ST1- terminal is NG) C

    A: REPLACE ECM

    C: REPAIR OR REPLACE HARNESS AND CONNECTOR

    B

  4. INSPECT FUSE (STOP)
    1. Remove the STOP fuse from the driver side junction block ECU.
    2. Measure the resistance of the fuse.

    Standard resistance: Below 1 Ω

    NG: REPLACE FUSE

    OK: GO TO NEXT STEP

  5. CHECK WIRE HARNESS (DRIVER SIDE J/B ECU - BATTERY)
    1. Disconnect the D2 ECU connector.
    2. Measure the voltage of the wire harness side connector.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Brake Pedal Condition Specified Condition
      D2-13 (STPI) - Body ground Depressed 10 to 14 V
      D2-13 (STPI) - Body ground Released Below 1 V

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    Fig 4: Identifying Voltage Of Wire Harness Side Connector
    G04107241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK: GO TO NEXT STEP

  6. CHECK DRIVER SIDE JUNCTION BLOCK ECU
    1. Reconnect the D2 driver side J/B ECU connector.
    2. Measure the voltage according to the value(s) in the table below.

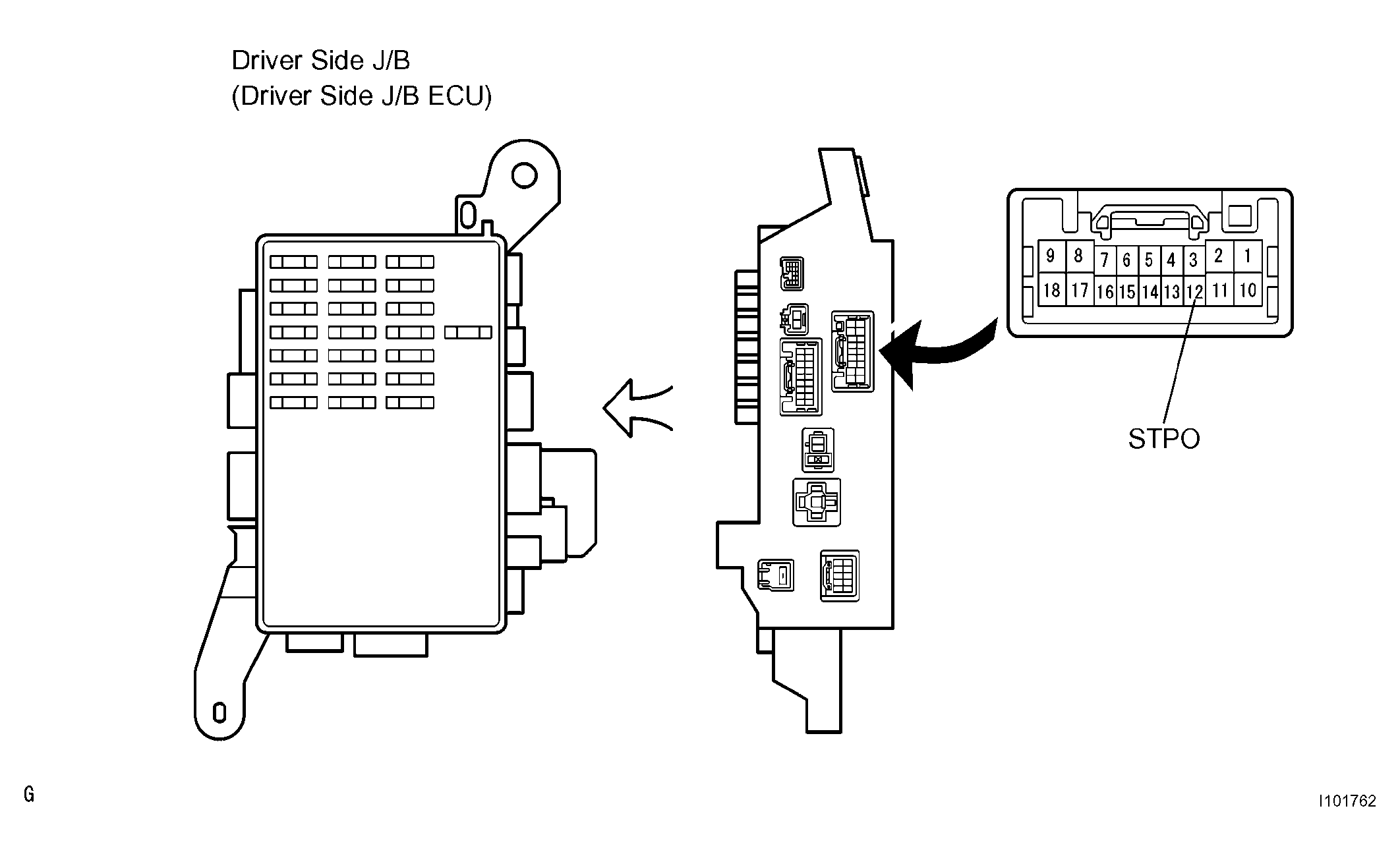

      Fig 5: Identifying Driver Side Junction Block ECU Terminal Connector
      G04107242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Brake Pedal Condition Specified Condition
      D2-12 (STPO) - Body ground Depressed 10 to 14 V
      D2-12 (STPO) - Body ground Released Below 1 V

    NG: REPLACE DRIVER SIDE JUNCTION BLOCK ECU

    OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (DRIVER SIDE J/B ECU - ECM)
