Rear Wiper and Washer: Notes

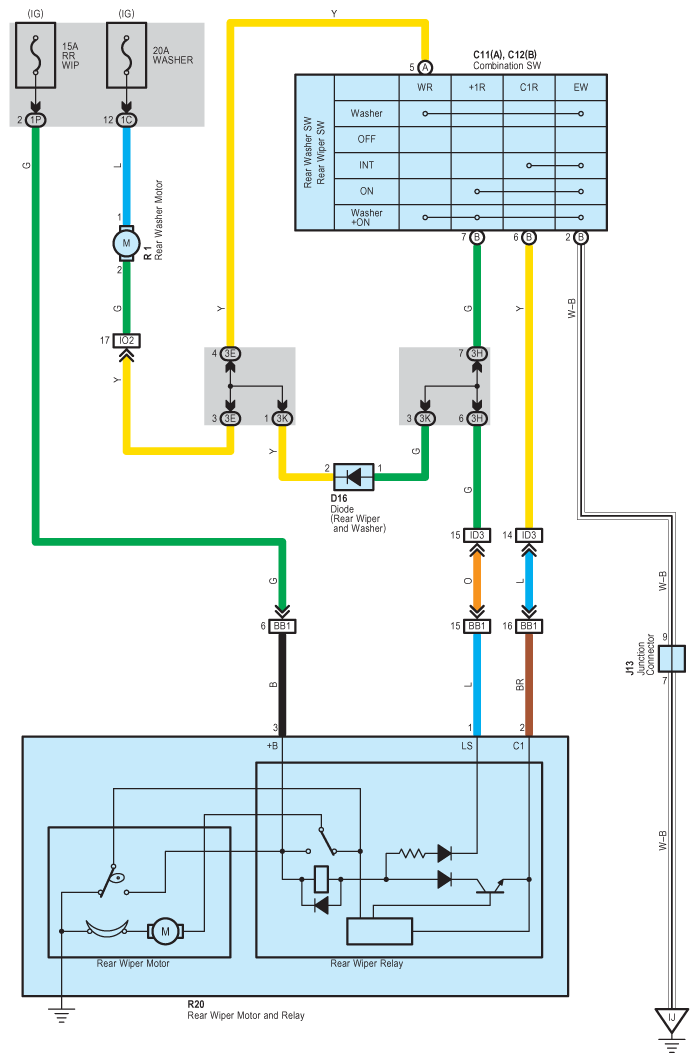

Fig 1: Rear Wiper And Washer Wiring Diagram

G08914855

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
