Transmission Control Switch Circuit: Wiring Diagram

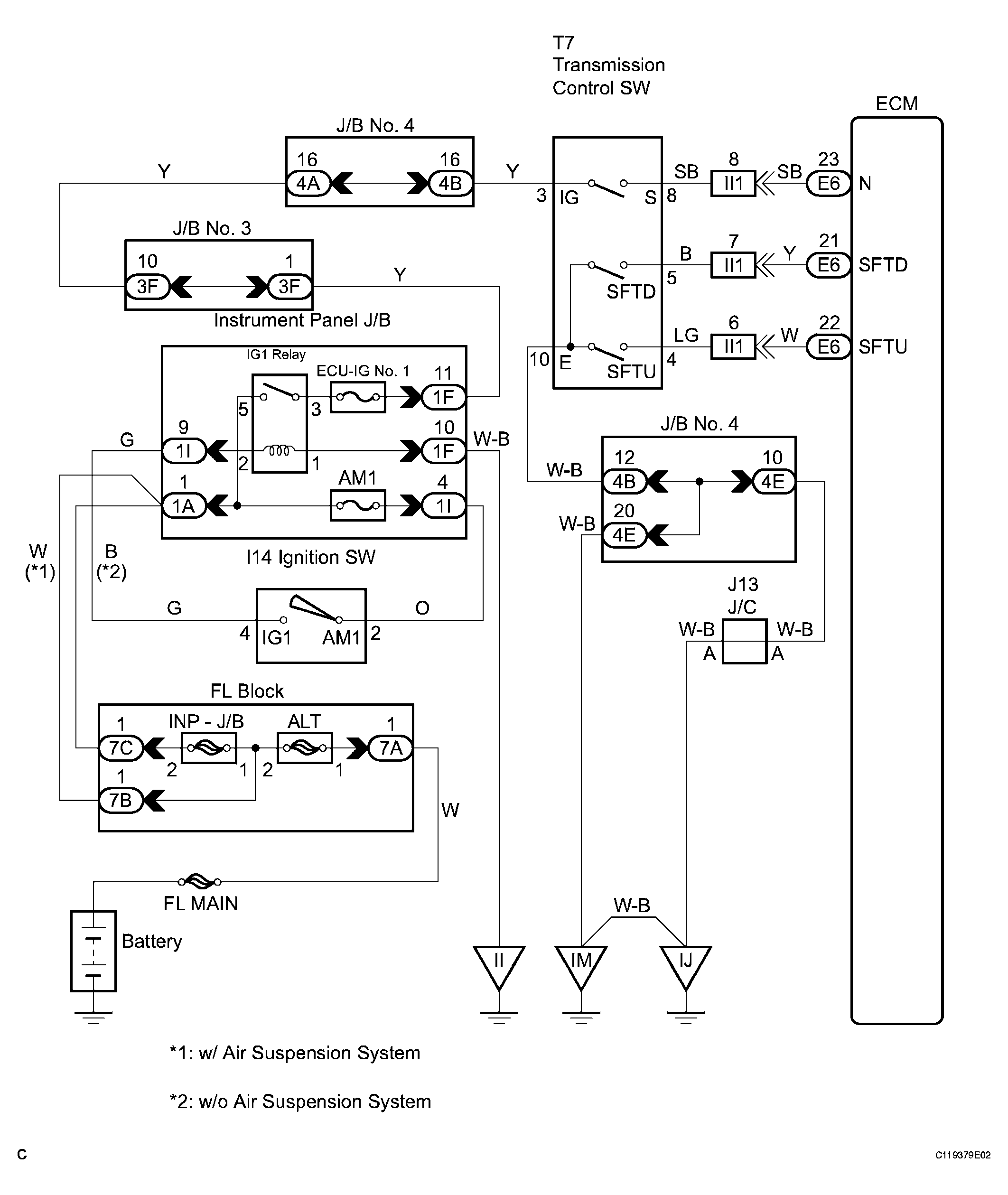

Fig 1: Wiring Diagram - Transmission Control Switch Circuit

G04089105

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
