W/Box Speaker ASSY No. 1: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

  1. REMOVE TONNEAU COVER RETRACTOR SUB-ASSY
  2. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
  3. REMOVE DECK BOARD SUB-ASSY (See  REPLACEMENT  )
  4. REMOVE DECK BOARD ASSY (See  REPLACEMENT  )
  5. REMOVE REAR FLOOR MAT SUPPORT PLATE REAR (See  REPLACEMENT  )
  6. REMOVE DECK FLOOR BOX RH (See  REPLACEMENT  )
  7. REMOVE DECK TRIM COVER REAR (See  REPLACEMENT  )
  8. REMOVE DECK TRIM SIDE BOARD UPR RH (See  REPLACEMENT  )
  9. REMOVE SIDE TRIM BOX ASSY RH (See  REPLACEMENT  )
  10. REMOVE REAR DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  11. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH (See  REPLACEMENT  )
  12. REMOVE DECK TRIM SIDE PANEL ASSY RH (See  REPLACEMENT  )
  13. REMOVE ROOF SIDE GARNISH ASSY INNER RH (See  REPLACEMENT  )
  14. REMOVE W/BOX SPEAKER ASSY NO.1
    1. Disconnect the connectors.
    2. Remove the 5 bolts and w/box speaker assy No.1.

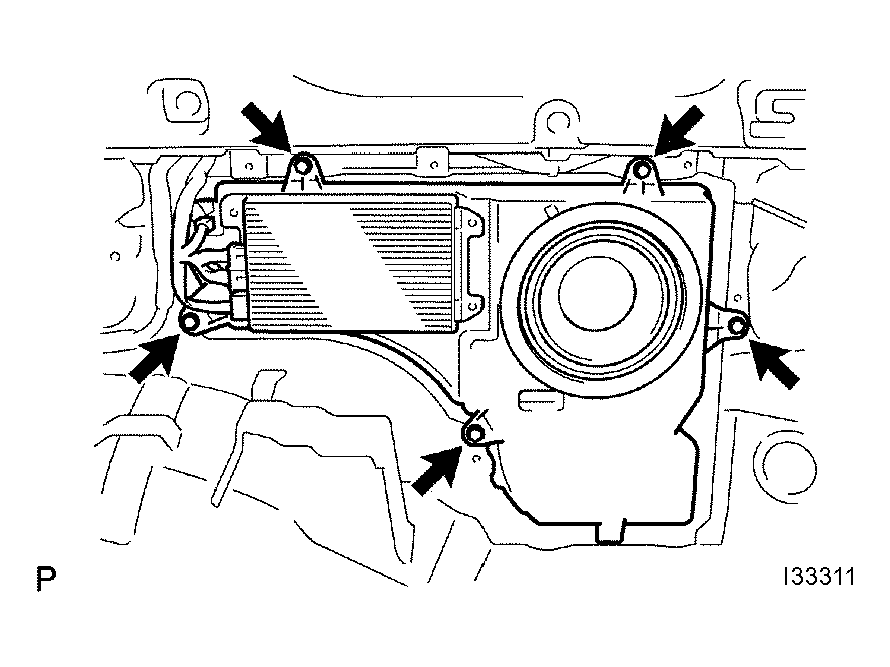

      Fig 1: Removing Bolts & With Box Speaker Assy No.1
      G04332057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
