Rear Speaker ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

See COMPONENTS

REMOVE REAR DOOR INSIDE HANDLE BEZEL LH (See OVERHAUL )
REMOVE REAR ARMREST ASSY LH (See OVERHAUL )
REMOVE REAR DOOR TRIM BOARD SUB-ASSY LH (See OVERHAUL )
REMOVE REAR SPEAKER ASSY
1. Disconnect the connector.
2. Remove the 3 screws and rear speaker assy.

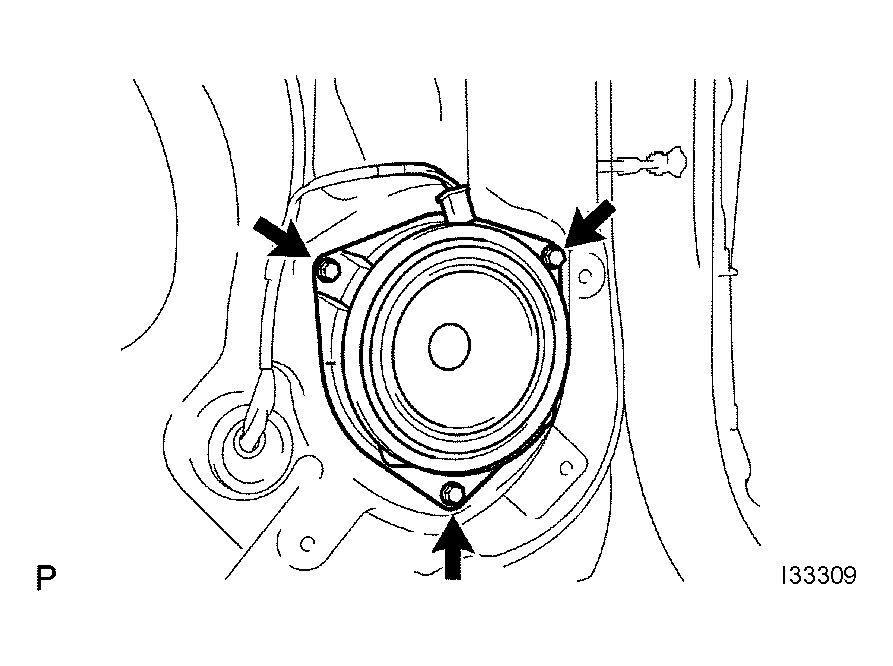

  Fig 1: Removing Screws & Rear Speaker Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SPEAKER ASSY
1. Install the rear speaker assy with the 3 screws.
  NOTE: Install them in the order shown in Fig 2.
2. Connect the connector.

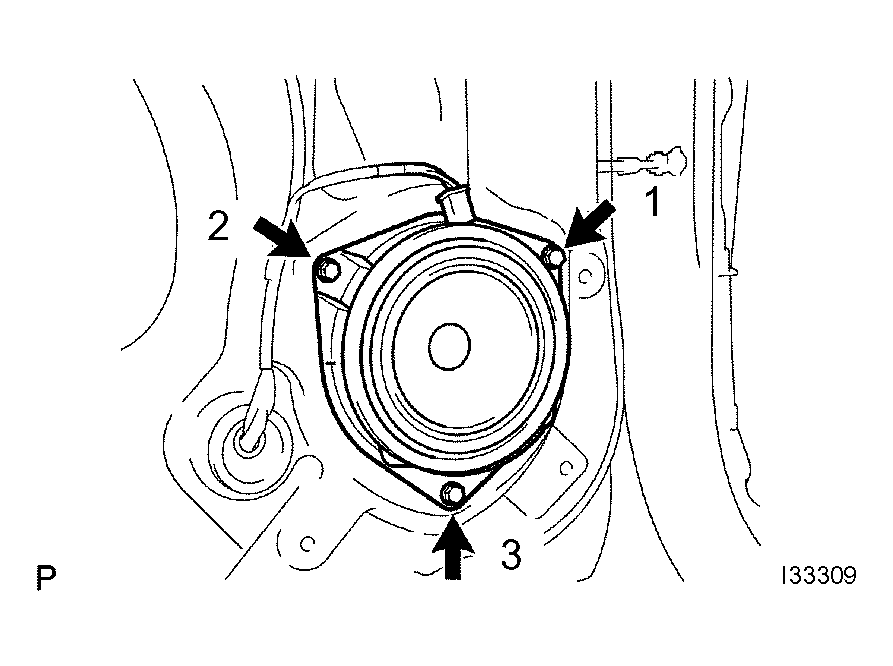

  Fig 2: Installing Rear Speaker Assy With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
