On-Vehicle Inspection

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK FLUID LEAKAGE

    Check the connections of tube and parts for fluid leakage.

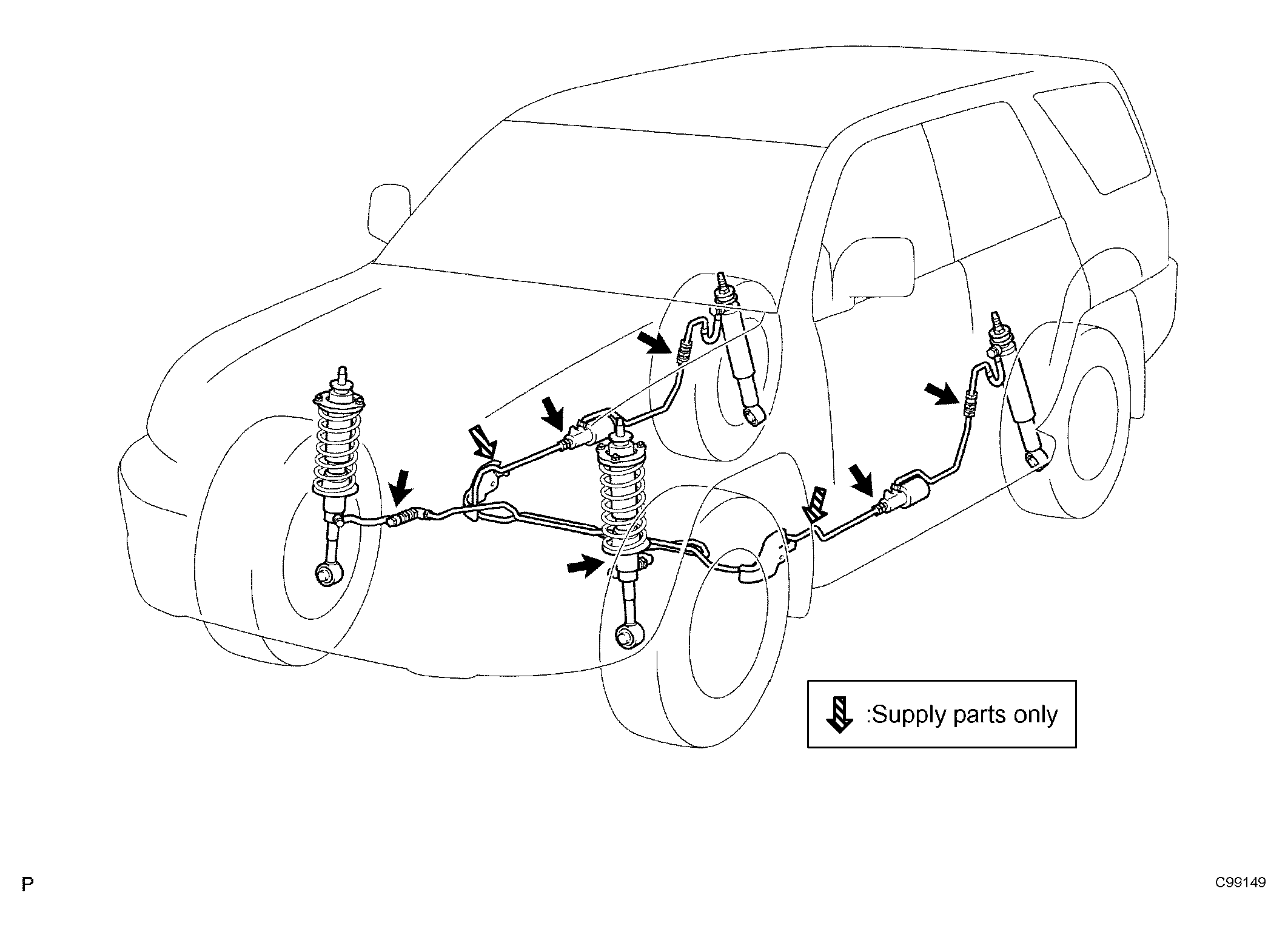

    Fig 1: Checking Connections Of Tube & Parts For Fluid Leakage
    G04333951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
