Cruise Control Switch Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

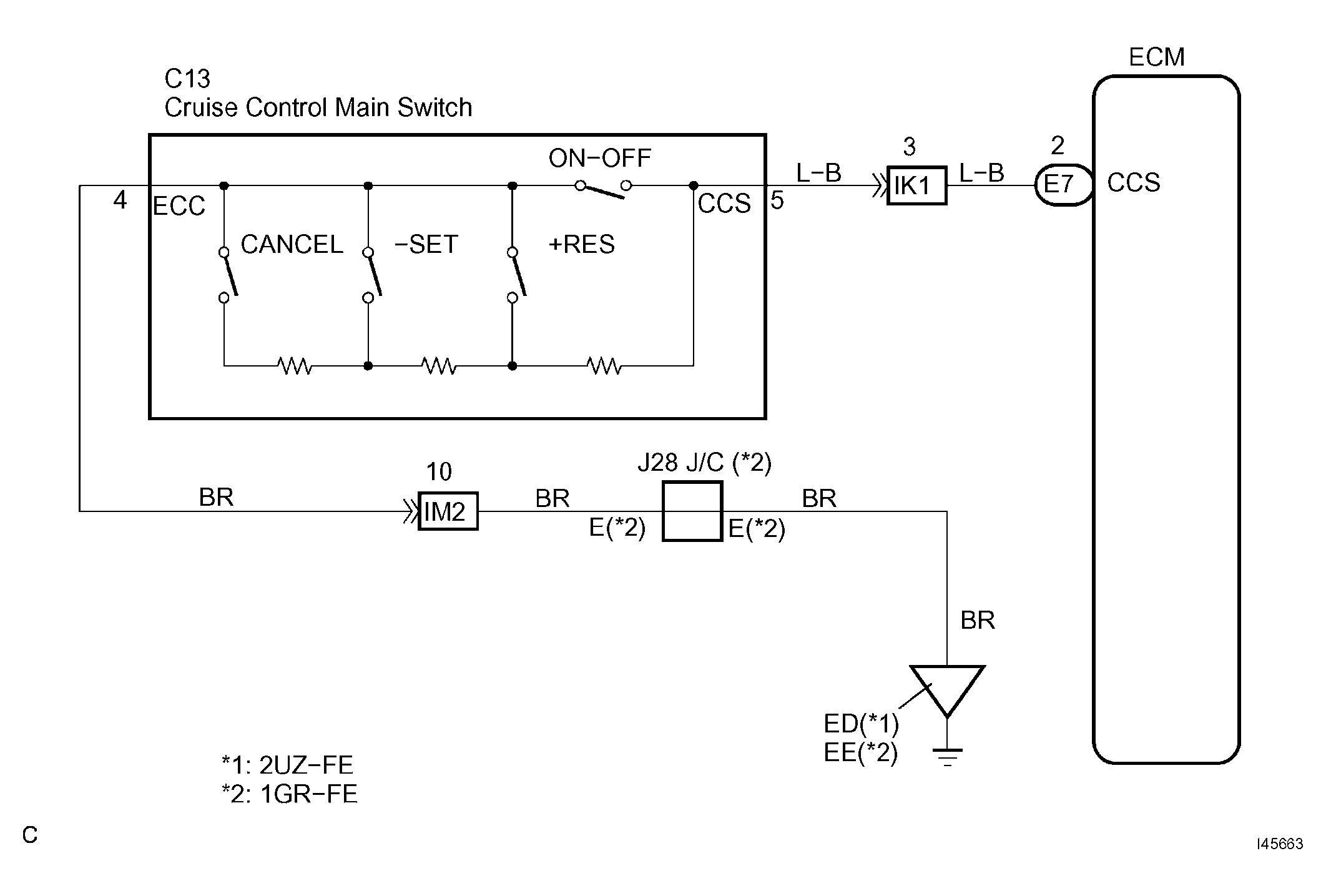

Fig 1: Cruise Control Switch Circuit - Wiring Diagram
G04337613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
