DTC C1249/49 Open in Stop Light Switch Circuit: Wiring Diagram

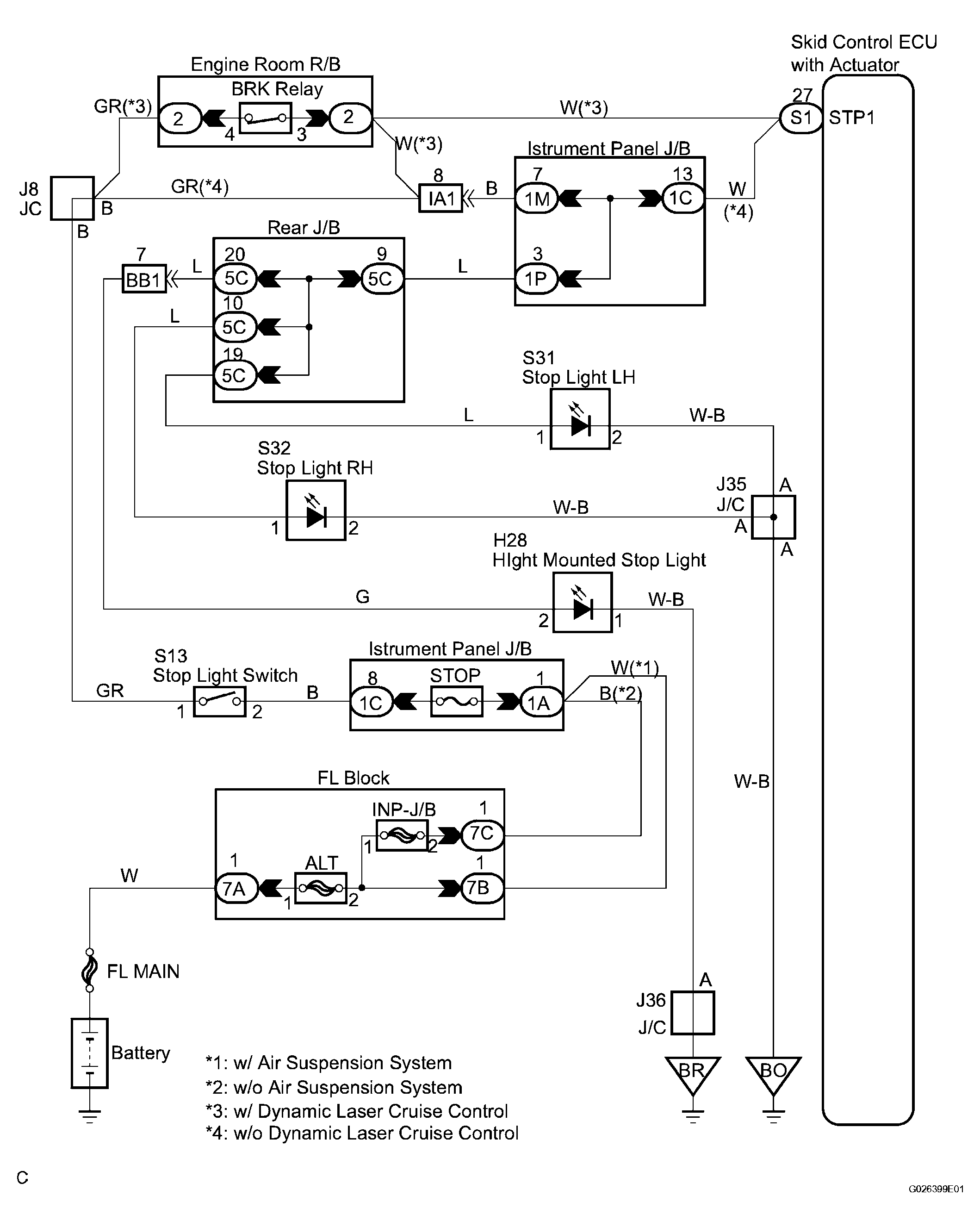

Fig 1: Identifying Stop Light Switch Wiring Diagram
G04090599Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
