Display Check Mode

HINT:

• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (See DTC CHECK/CLEAR  ).
   Fig 1: Display Diagnosis Menu Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select "Display Check" from the "Diagnosis MENU" screen.

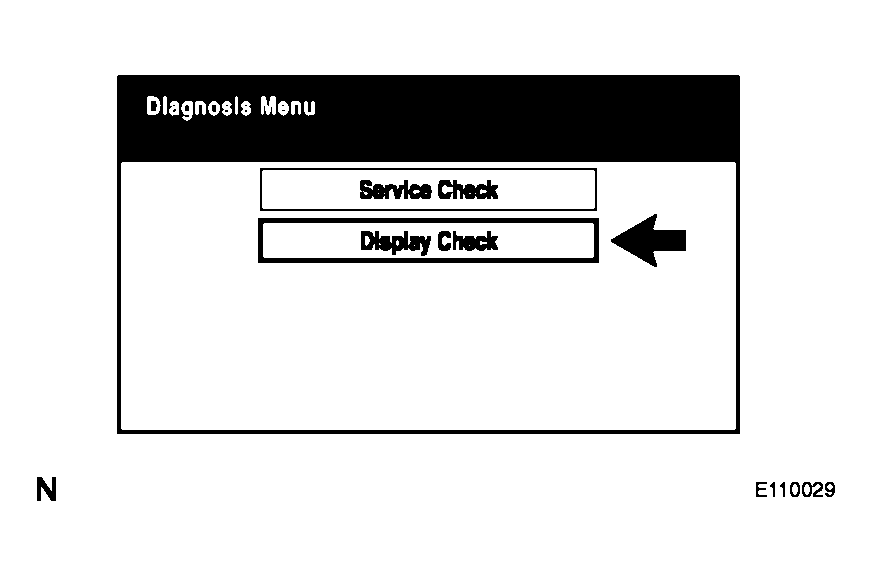

   Fig 2: Selecting Display Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Color Bar Check" from the "Display Check" screen.

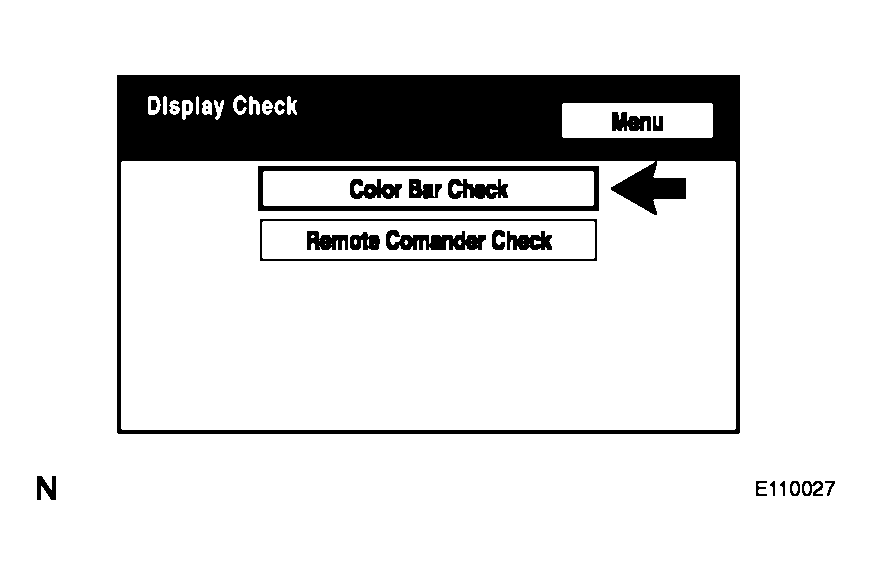

   Fig 3: Selecting Color Bar Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

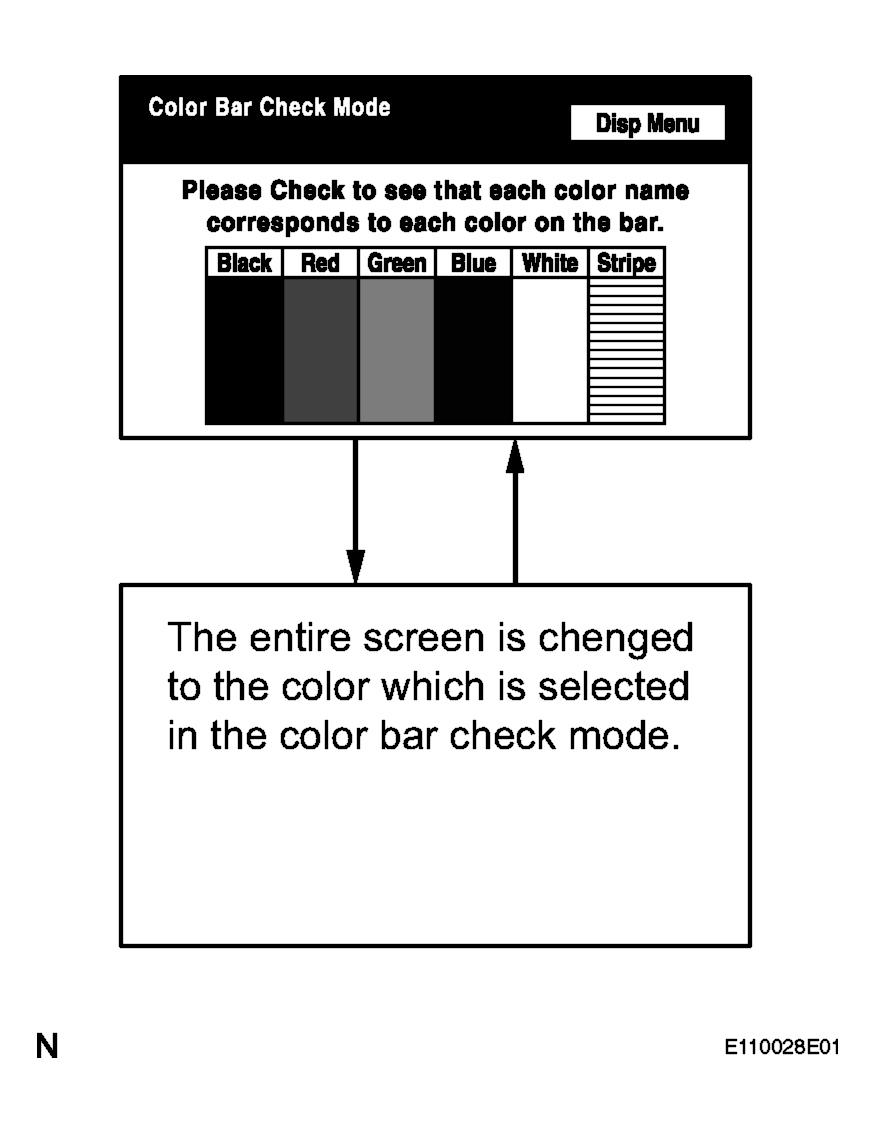

4. Select a color bar from the "Color Bar Check Mode" screen.

   HINT:

   • The entire screen turns to the color or stripe selected.
   • Touching the display will return to the "Color Bar Check" screen.

HINT:

• This mode checks the remote controller operation condition on the rear display.
• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.

1. Enter diagnostic mode (See DTC CHECK/CLEAR  ).
   Fig 4: Selecting Color Bar From Color Bar Check Mode Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select "Display Check" from the "Diagnosis Menu" screen.
   Fig 5: Selecting Display Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Remote Commander Check" from the "Display Check" screen.

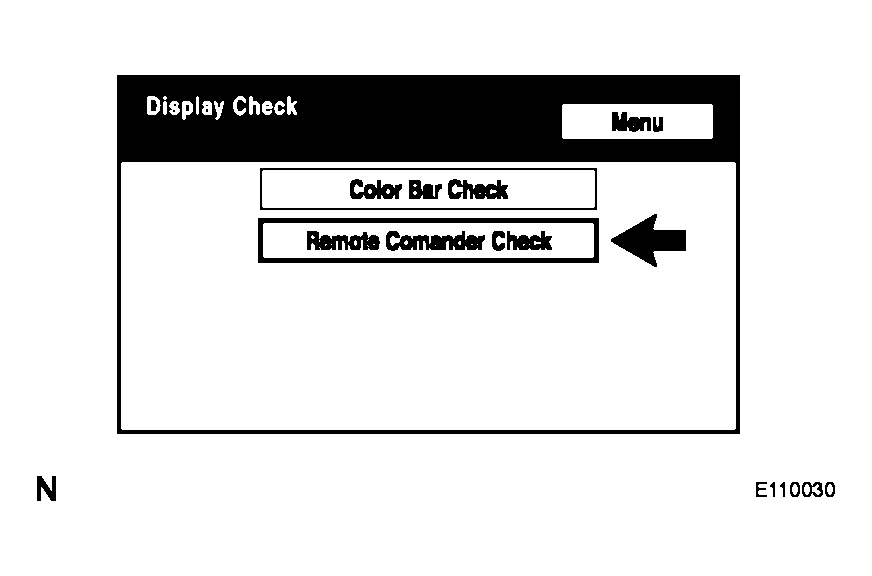

   Fig 6: Selecting Remote Commander Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Press each switch and make sure that it corresponds to the display on the screen.

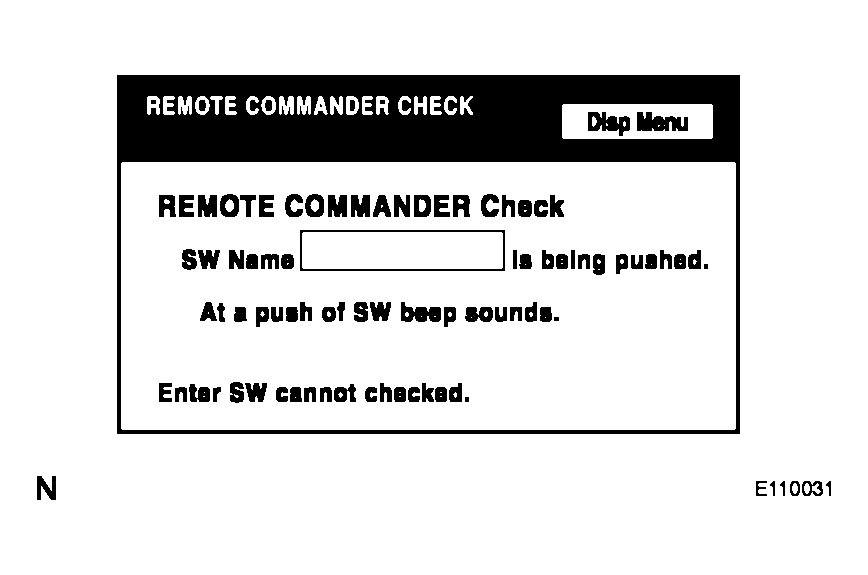

   Fig 7: Display Remote Commander Check Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
