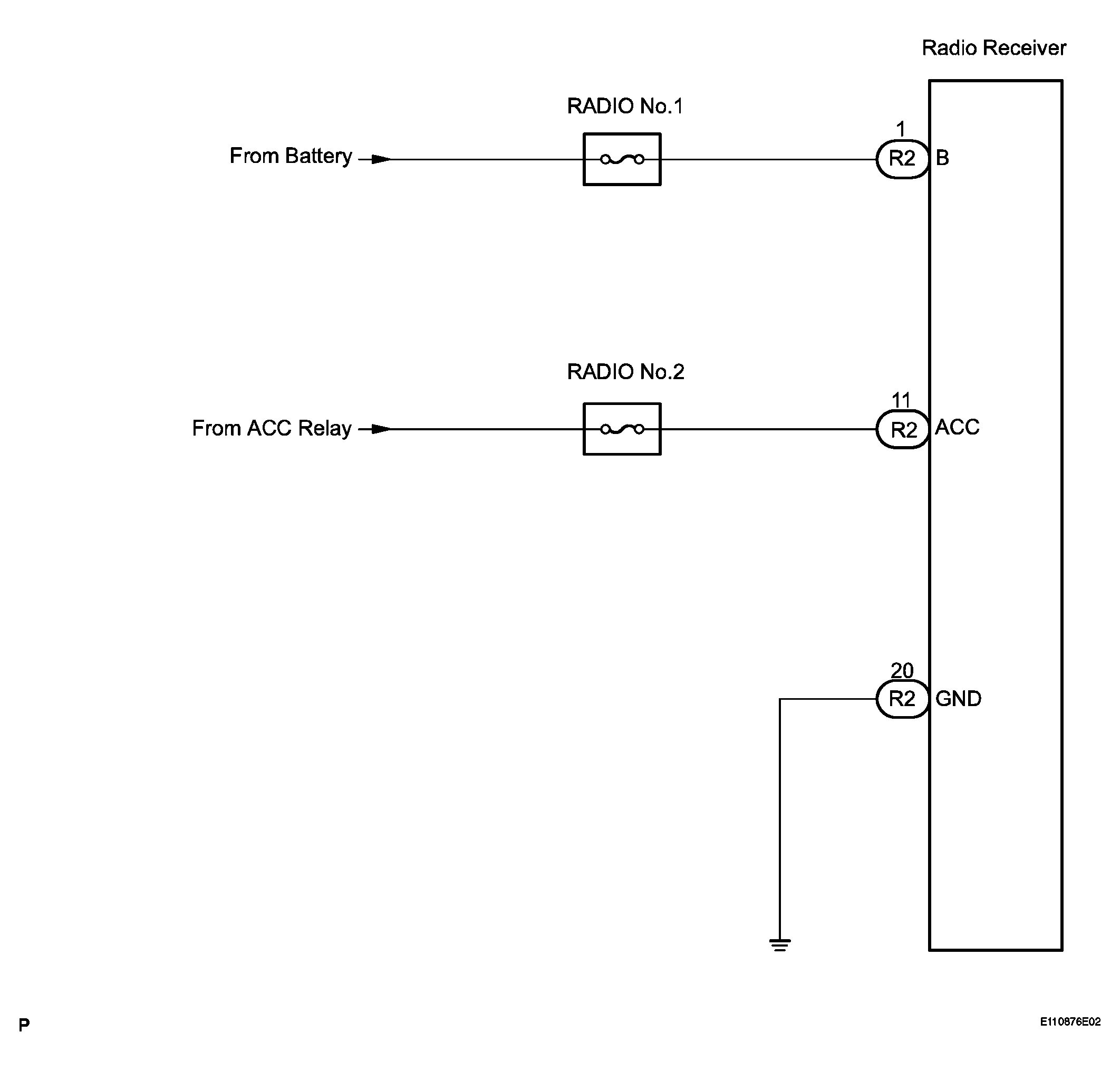

Radio Receiver Power Source Circuit: Wiring Diagram
- INSPECT RADIO RECEIVER
- Disconnect the radio receiver R2 connector.
- Measure the resistance according to the value in the table below.
Standard resistance
RESISTANCE SPECIFIED CONDITIONTester Connection Condition Specified Condition GND - Body ground Always Below 1 Ω - Measure the voltage according to the values in the table below.
Standard voltage
VOLTAGE SPECIFIED CONDITIONTester Connection Condition Specified Condition B - GND Always 10 to 14 V ACC - GND Ignition SW ACC 10 to 14 V NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: RETURN TO THE ORIGINAL INSPECTION FLOW BECAUSE THE CHECK RESULT IS NORMAL
