Laser Sensor: Components

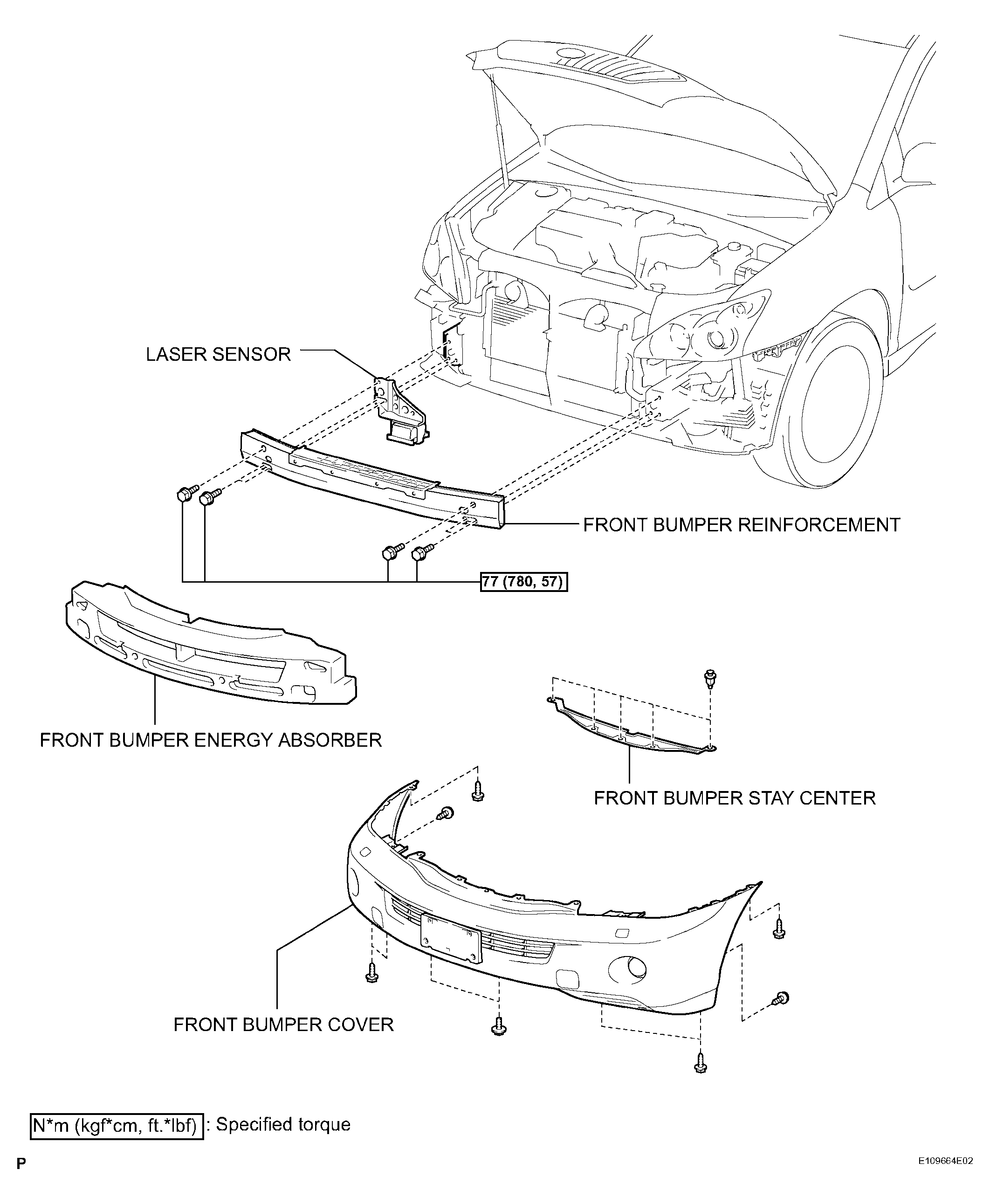

Fig 1: Laser Sensor Replacement Components With Torque Specifications

G04092041

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
