Rear Seat Outer Belt Assembly: Components

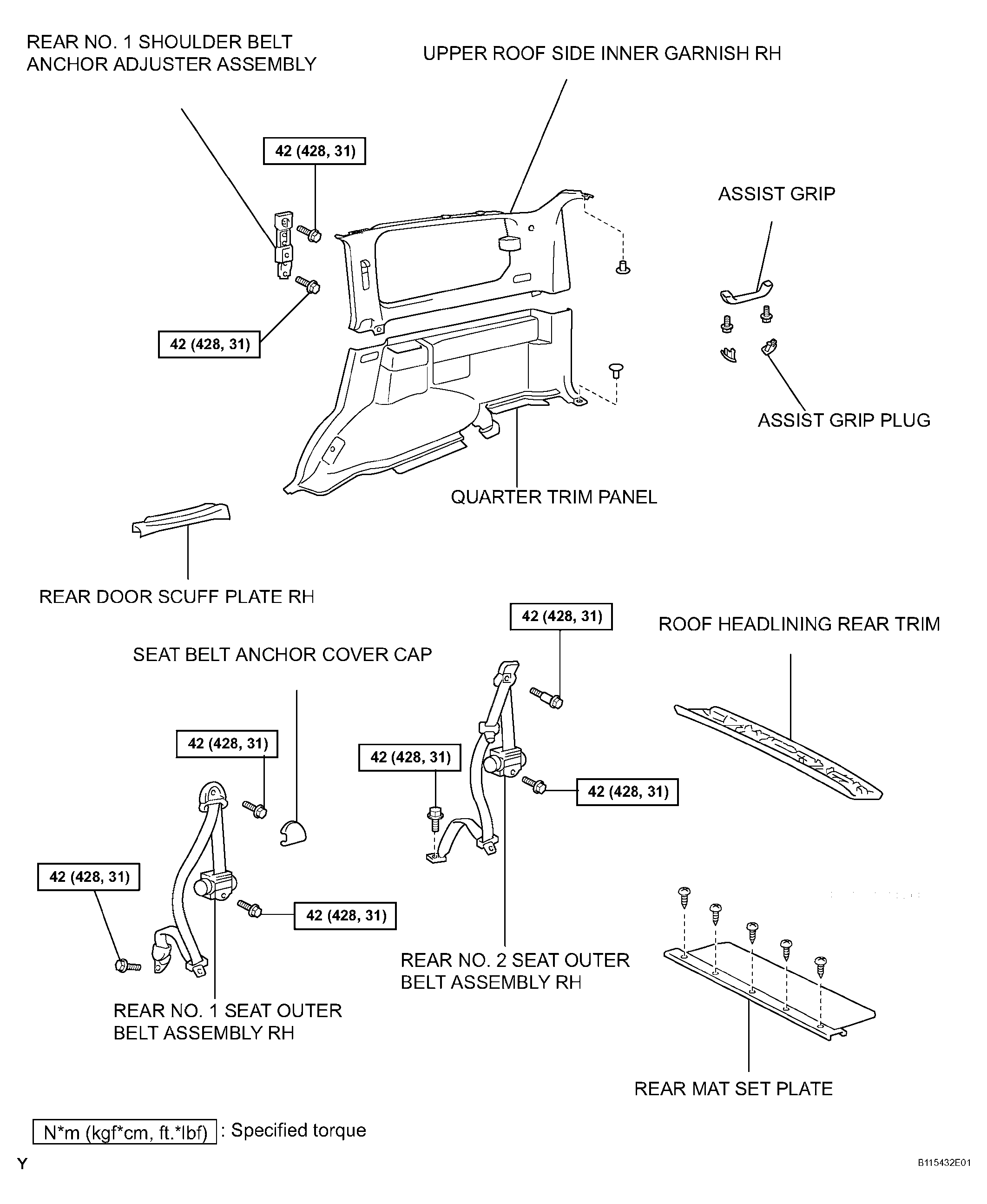

Fig 1: Identifying Rear Seat Outer Belt Assembly Components

G04064924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
