Throttle Body: Installation

  1. INSTALL THROTTLE BODY
    1. Install a new gasket and the throttle body with the 3 bolts and nut.

      Torque: 14 N*m (142 kgf*cm, 10 ft.*lbf)

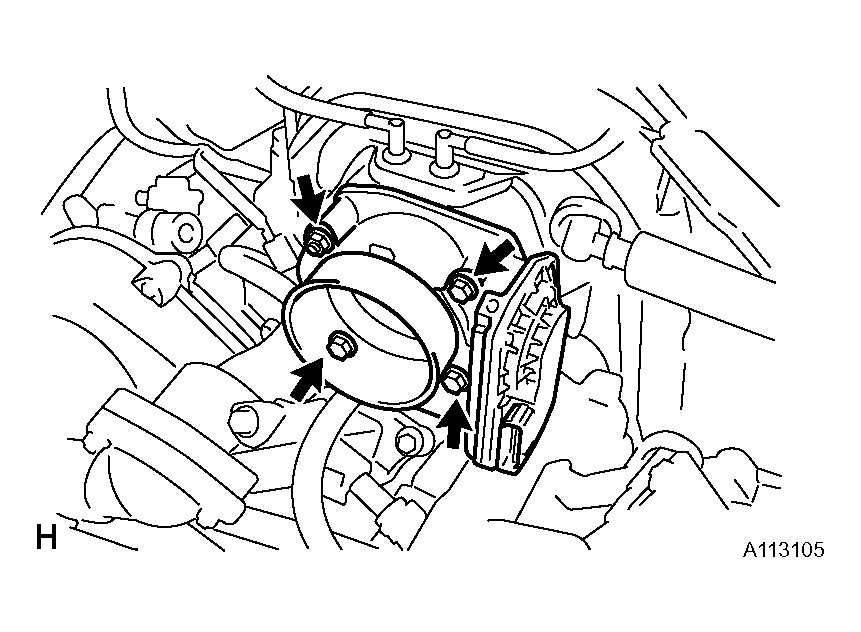

      Fig 1: Identifying Gasket And Throttle Body
      G04061669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 2 water by-pass hoses.
    3. Connect the throttle position sensor and control connector.
  2. INSTALL INTAKE AIR CONNECTOR PIPE (See  INSTALLATION   )
  3. INSTALL V-BANK COVER SUB-ASSEMBLY (See  INSTALLATION   )
  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  5. PERFORM INITIALIZATION
    1. Perform initialization (INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  6. ADD ENGINE COOLANT ( COOLANT  )
  7. CHECK FOR ENGINE COOLANT LEAKS
    1. Check for engine coolant leaks (COOLANT ).

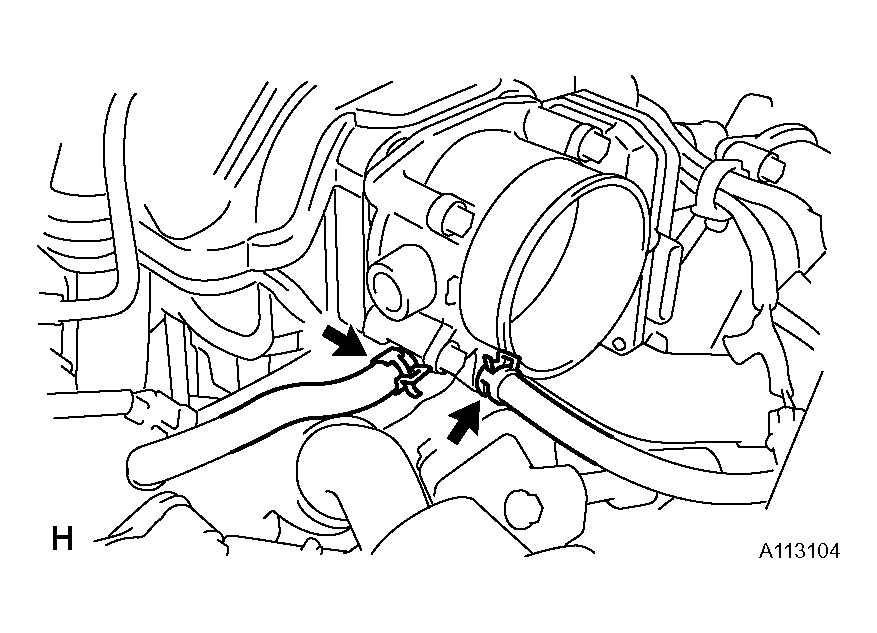

    Fig 2: Checking For Engine Coolant Leaks
    G04061670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
