Mass Air Flow Meter: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE MASS AIR FLOW METER
    1. Disconnect the MAF meter connector.
    2. Remove the 2 screws and MAF meter.

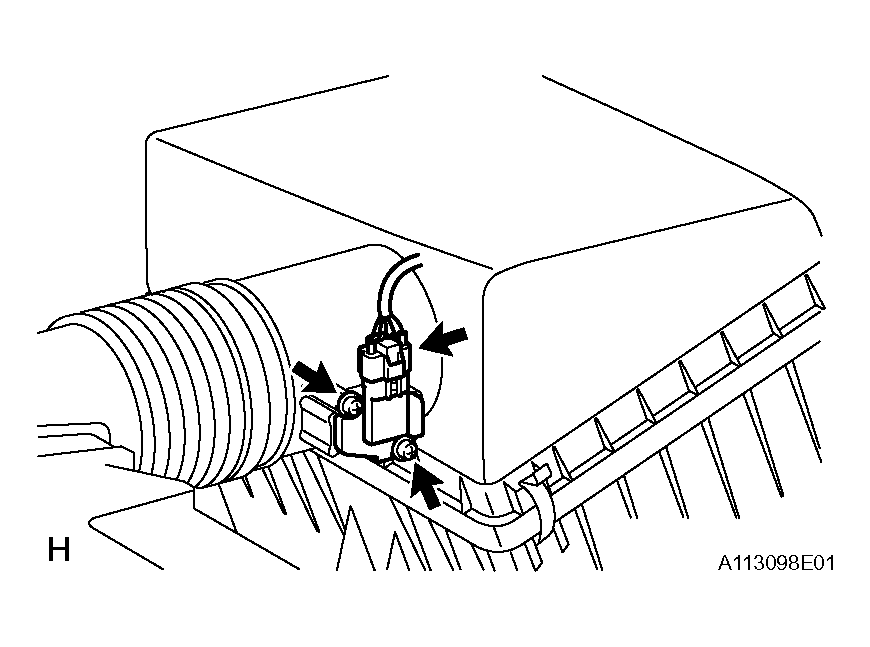

    Fig 1: Identifying Screws And MAF Meter
    G04061638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
