Mass Air Flow Meter: Installation

  1. INSTALL MASS AIR FLOW METER
    1. Install the MAF meter with the 2 screws.
    2. Connect the MAF meter connector.
  2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

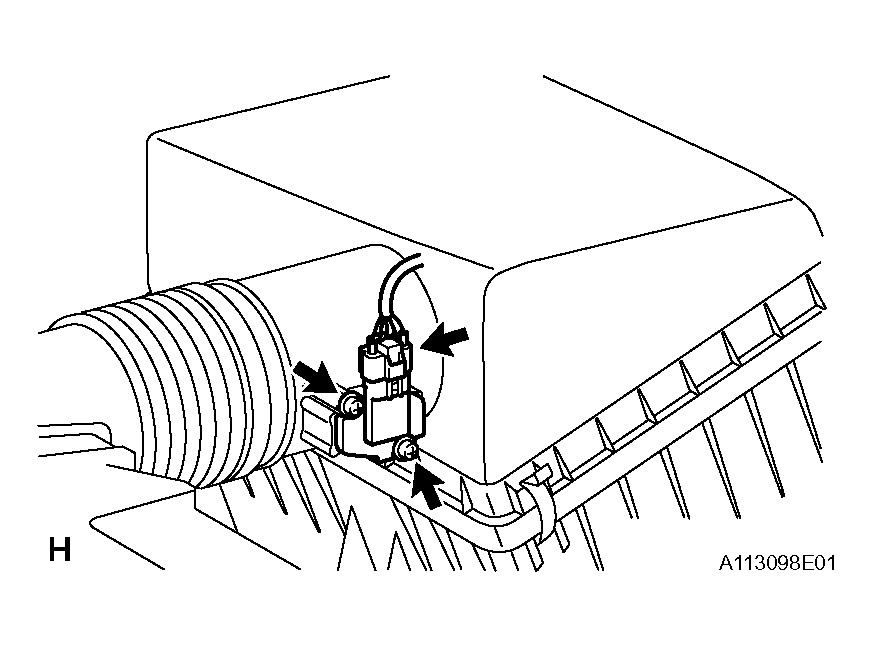

    Fig 1: Identifying Mass Air Flow Meter
    G04061640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. PERFORM INITIALIZATION
    1. Perform initialization (INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
