Camshaft Timing Oil Control Valve Assembly: Installation

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
1. Install a new O-ring to the oil control valve.
2. Apply light coat of engine oil to the O-ring.
3. Install the oil control valve with the bolt.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
4. Connect the oil control valve connector.

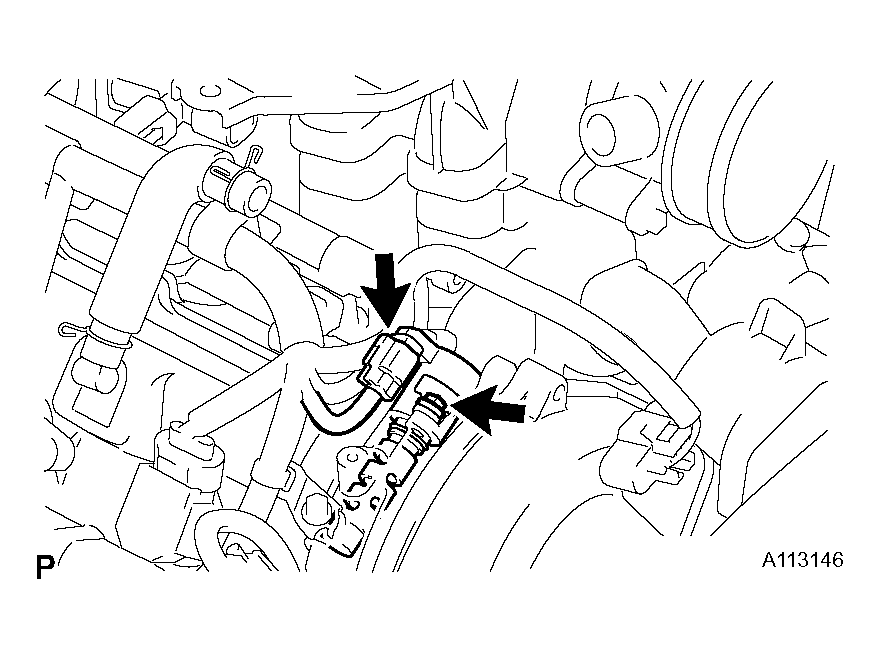

Fig 1: Identifying Oil Control Valve Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

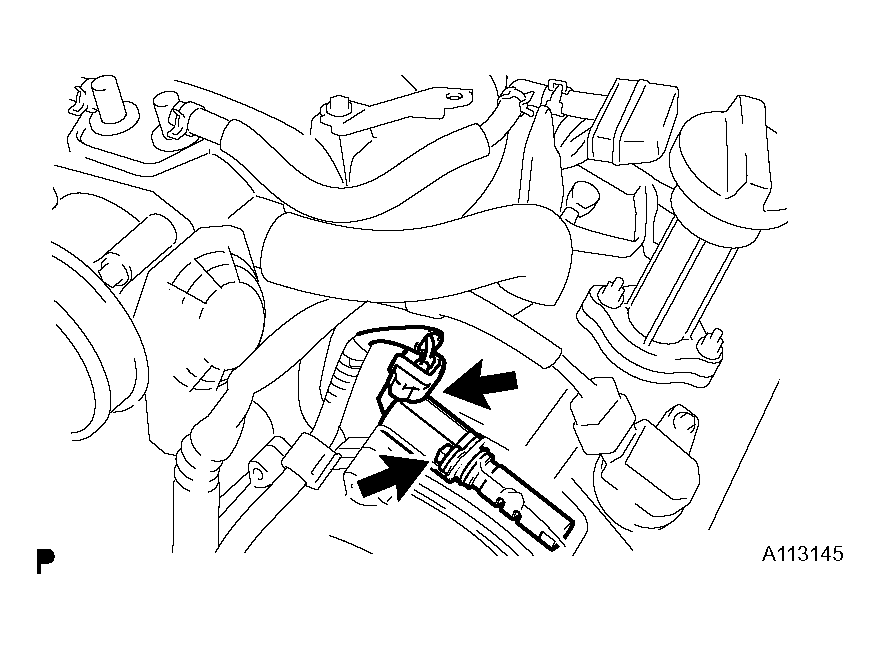

INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
1. Install a new O-ring to the oil control valve.
2. Install the oil control valve with the bolt.
  Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
3. Connect the oil control valve connector.
INSTALL INTAKE AIR CONNECTOR PIPE
1. Install the intake air connector pipe with the 2 clamp bolts and 2 bolts.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Connect the 3 hoses.
Fig 2: Identifying Intake Air Connector Pipe With Clamp Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL V-BANK COVER SUB-ASSEMBLY
1. Install the V-bank cover with the 2 nuts and 2 bolts.
Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization (INITIALIZATION ).
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
