Camshaft Position Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. DRAIN ENGINE COOLANT ( COOLANT  )
  3. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL   )
  4. REMOVE INTAKE AIR CONNECTOR PIPE (See  REMOVAL   )
  5. DISCONNECT NO. 1 RADIATOR HOSE (See  REMOVAL  )
  6. REMOVE NO. 3 TIMING BELT COVER SUBASSEMBLY BANK 1 ( REMOVAL  )
  7. REMOVE CAMSHAFT POSITION SENSOR
    1. Remove the bolt, stud bolt and camshaft position sensor.

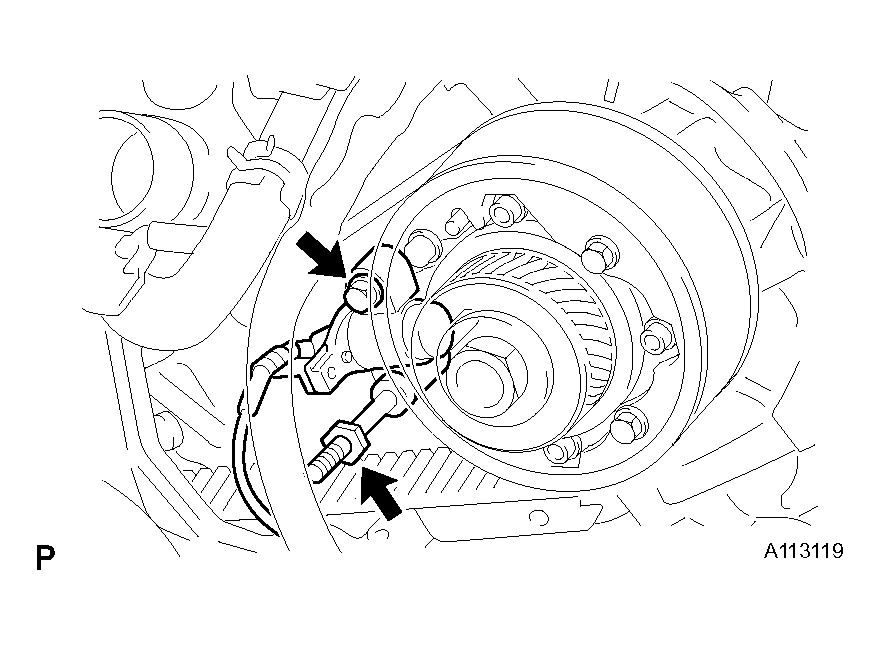

    Fig 1: Identifying Camshaft Position Sensor
    G04061651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
