Circuit Description

These DTCs are output when the power window motor rear LH is malfunctioning.

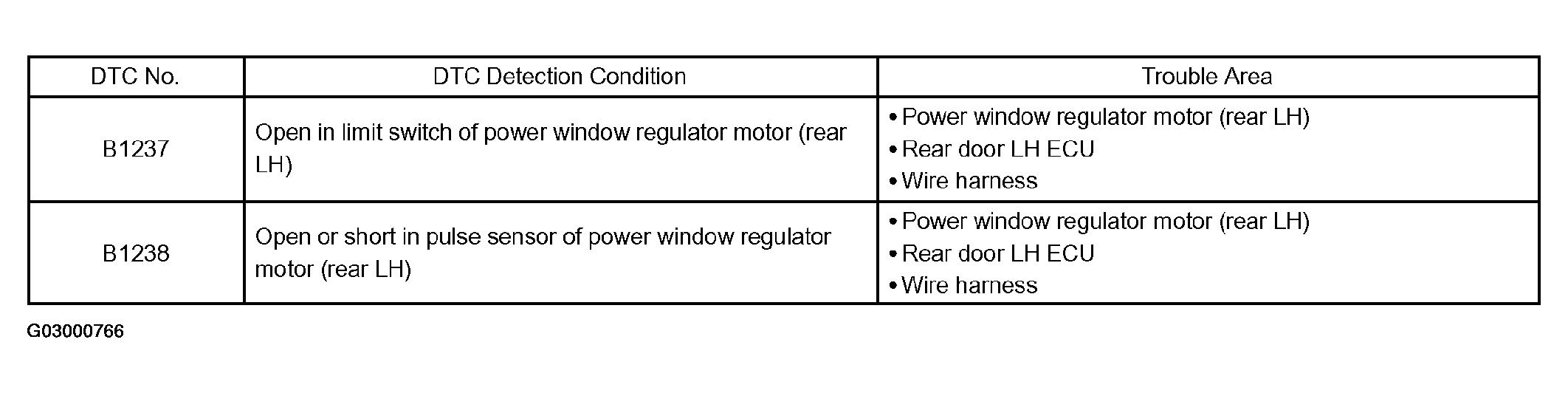

Fig 1: DTC - B1237 And B1238 Trouble Detection Chart

G03000766

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
