Pattern Select Switch: Components

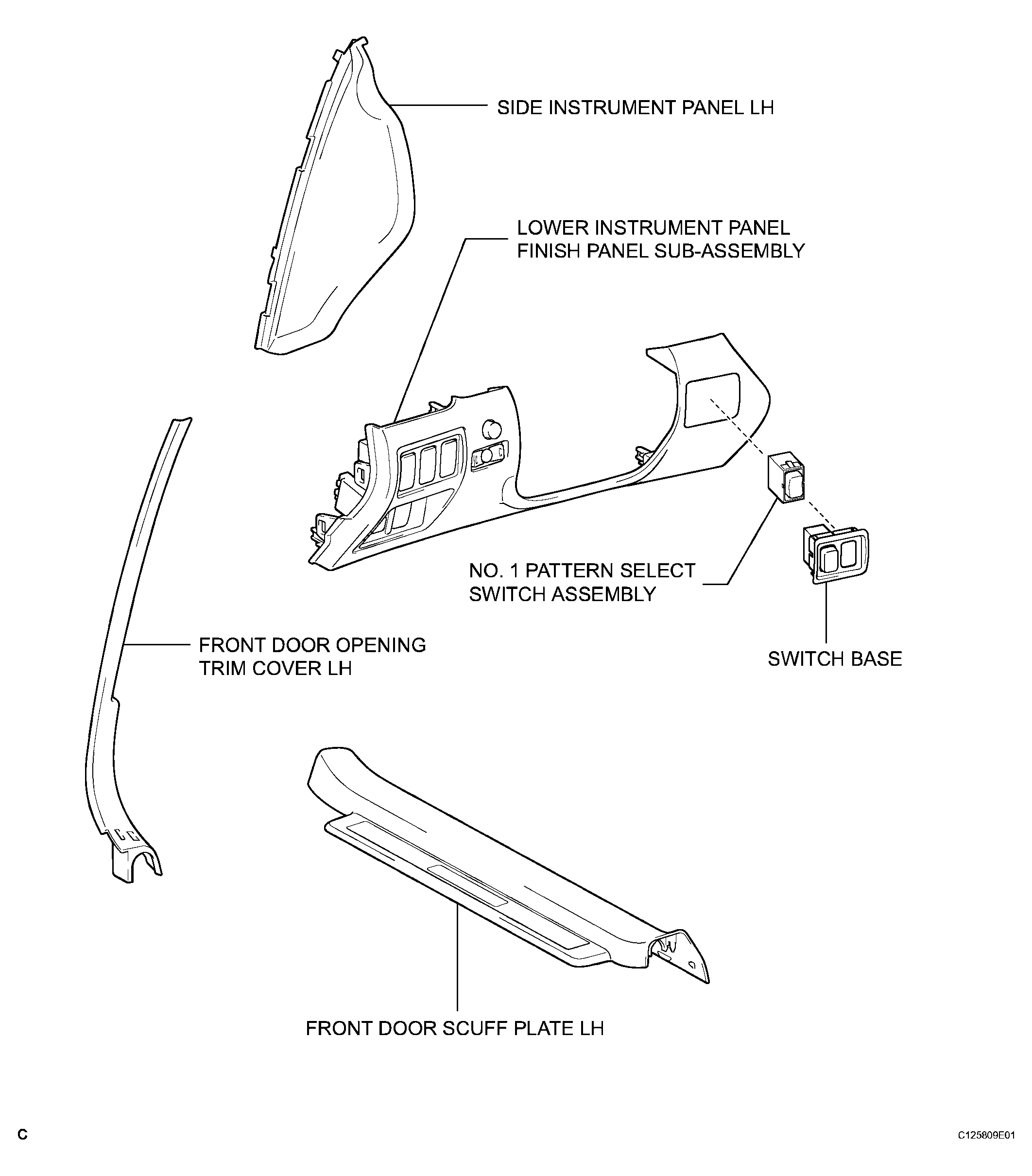

Fig 1: Identifying Pattern Select Switch Components

G04053063

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
