System Diagram

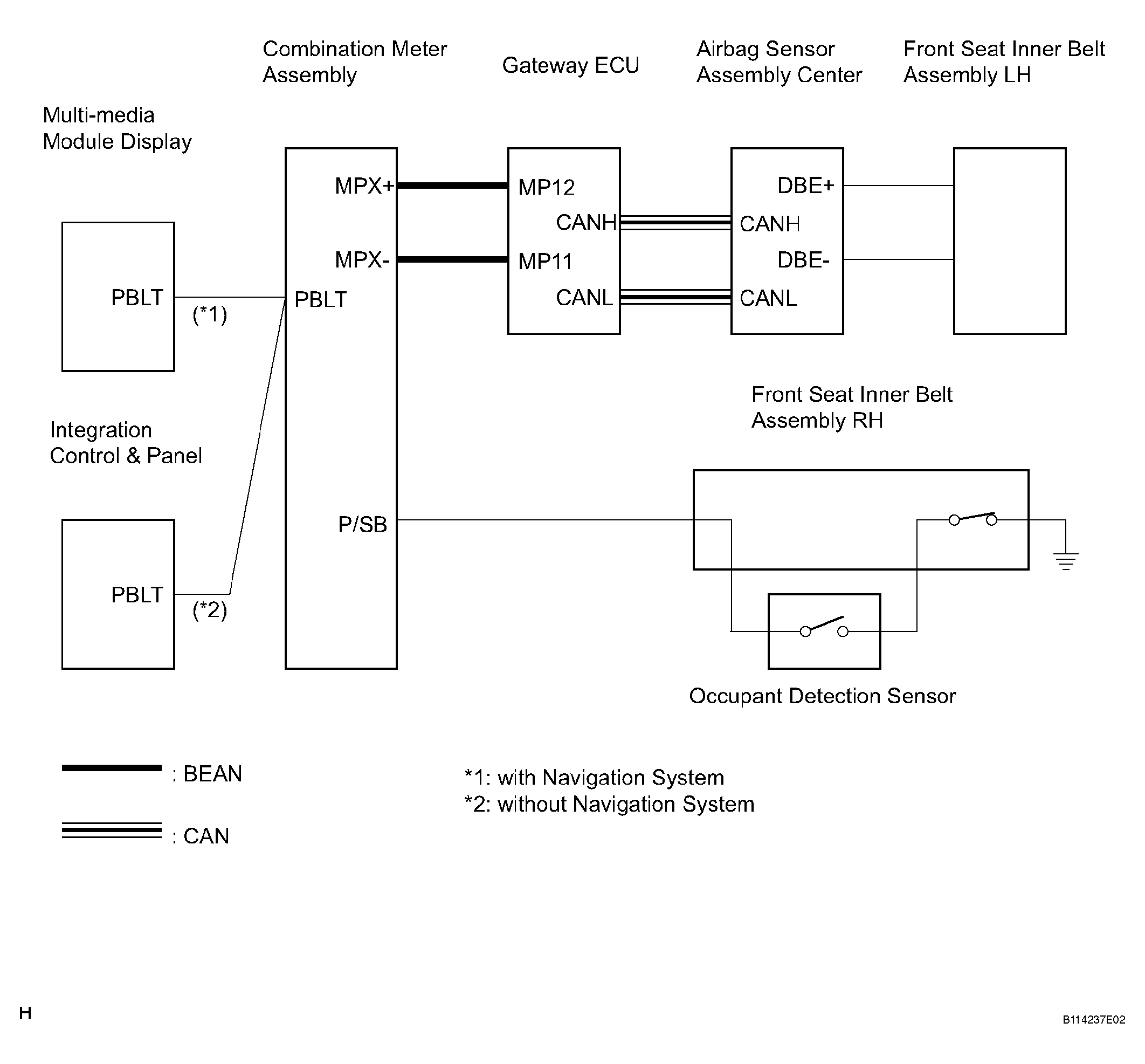

Fig 1: Seat Belt Warning System - System Diagram

G04048999

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
