Front Axle Hub Bolt: Components

WARNING: This page is about a different car, the 2006 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

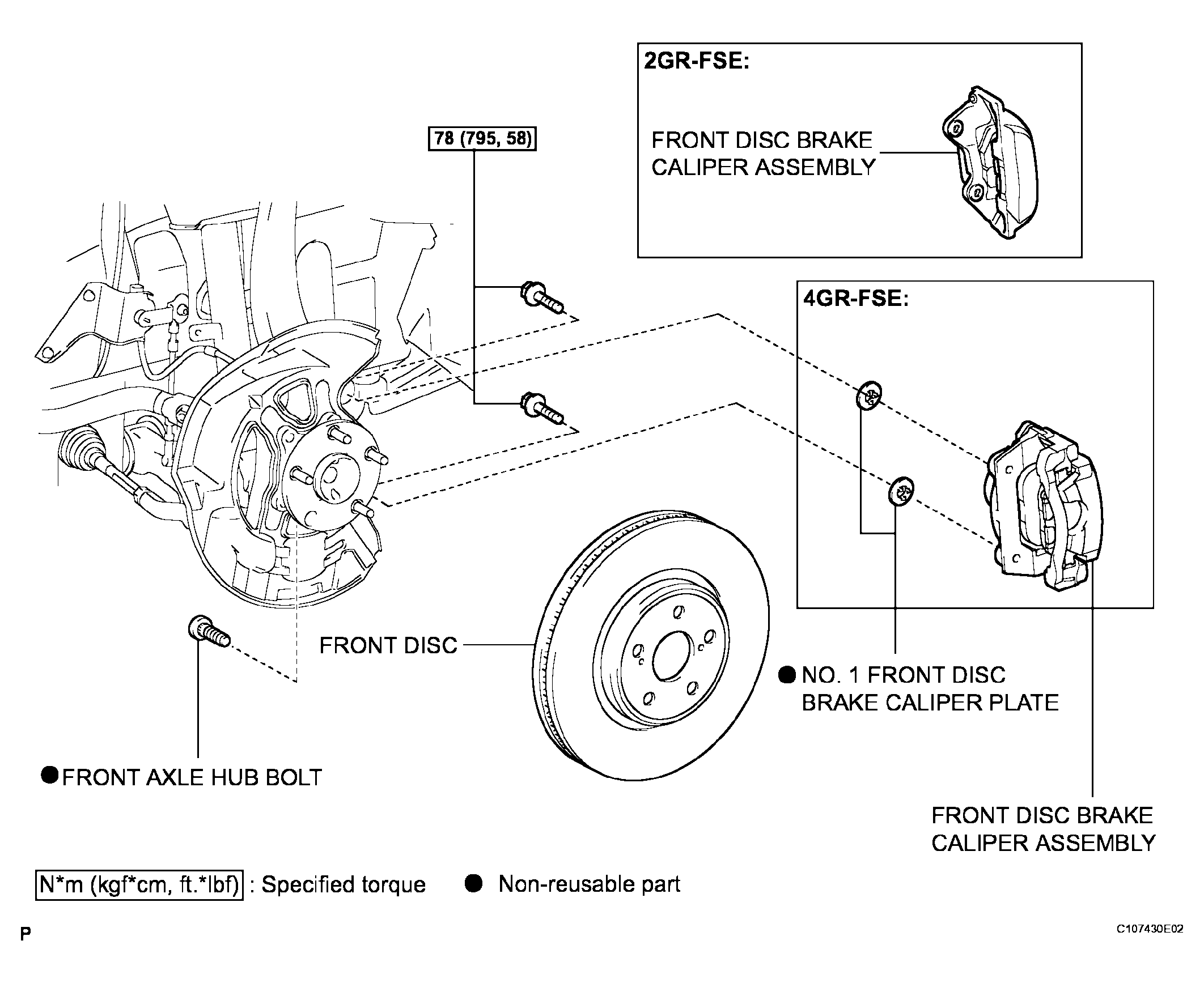

Fig 1: Front Axle Hub Bolt Replacement Components With Torque Specifications
G04047204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
