Power Seat for Front Passenger's Seat with Memory: Notes

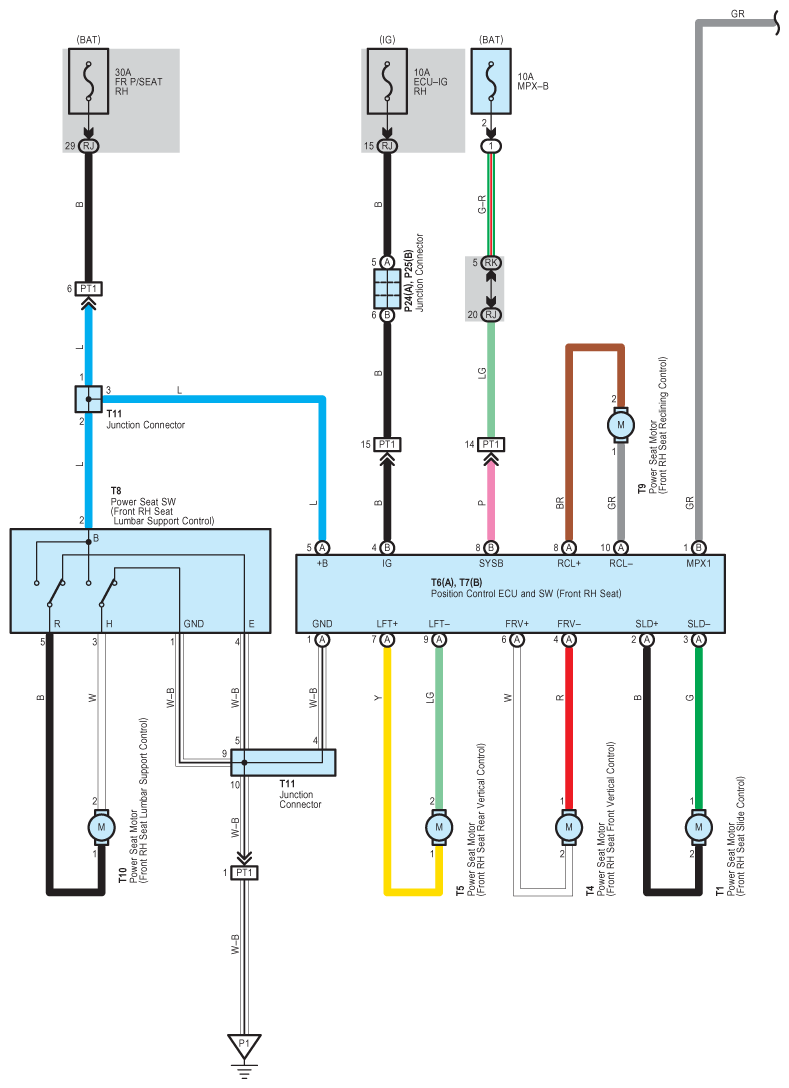

Fig 1: Power Seat For Front Passenger's Seat With Memory - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Power Seat For Front Passenger's Seat With Memory - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Seat For Front Passenger's Seat With Memory - Wiring Diagram (3 Of 4)

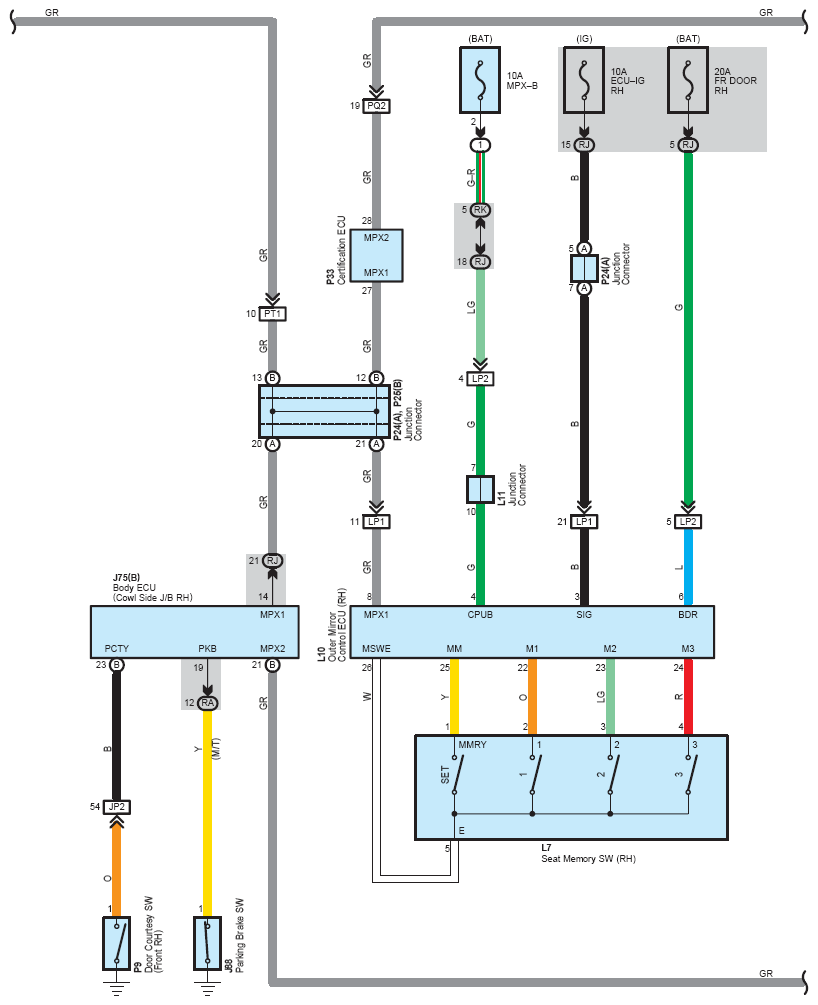

Fig 4: Power Seat For Front Passenger's Seat With Memory - Wiring Diagram (4 Of 4)
