Transfer Case Front Oil Seal: Components

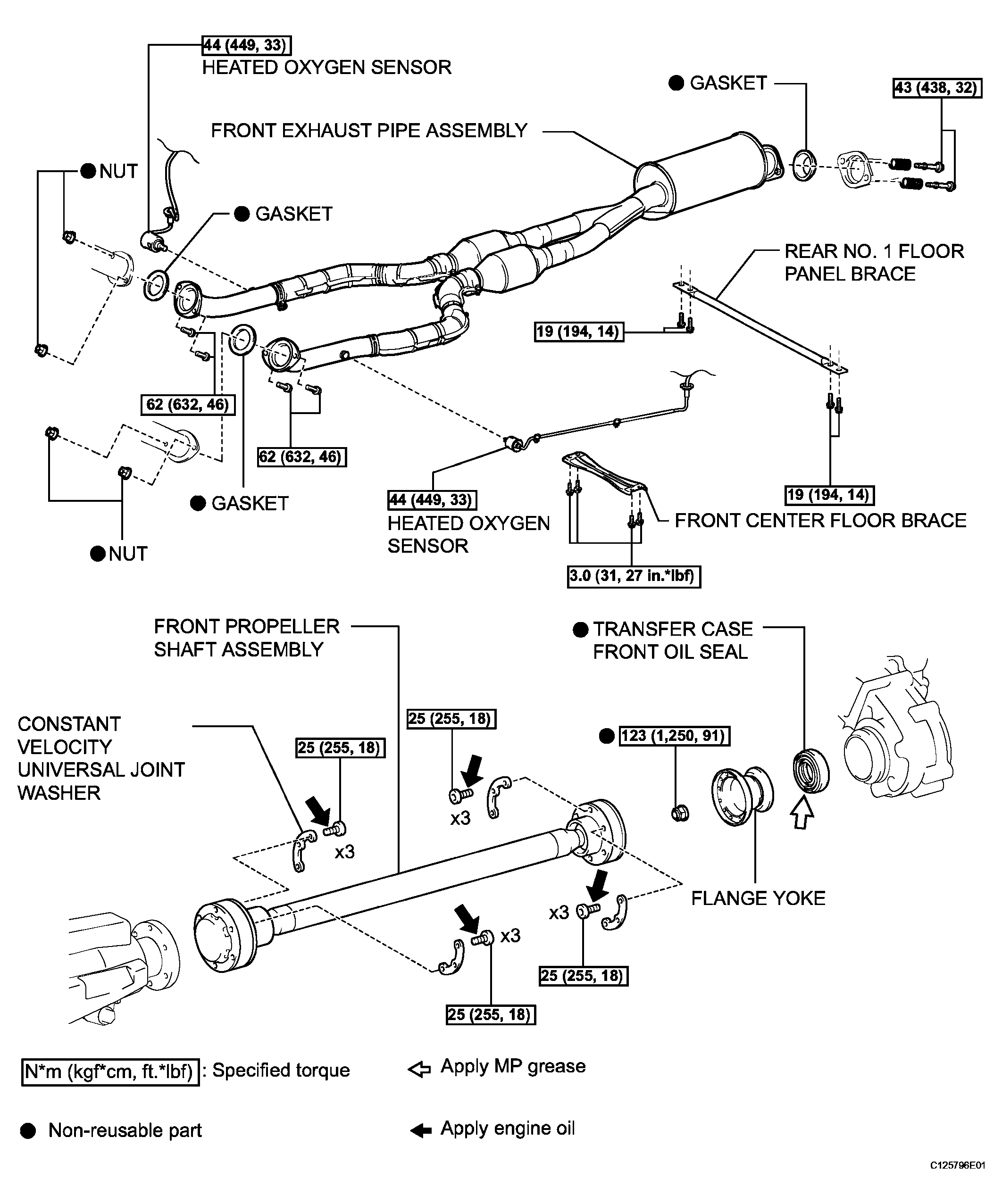

Fig 1: Transfer Case Replacement Components With Torque Specifications

G04046733

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
