Inspection Procedure

  1. INSPECT TRANSFER CONTROL SOLENOID ASSEMBLY
    1. Disconnect the transfer transmission wire connector.
    2. Measure the resistance according to the value(s) in RESISTANCE CONDITION TABLE  .

    Standard resistance

    RESISTANCE CONDITION TABLE

    Tester Connection Condition
    E54-1 - E54-2  5.0 to 5.5 ohms
    E54-1 - Body ground 10 k ohms or higher
    E54-2 - Body ground 10 k ohms or higher
    Fig 1: Identifying Transfer Transmission Wire Connector
    G04046726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to STEP  3

    OK: Go To Next Step

  2. CHECK HARNESS AND CONNECTOR (TRANSFER TRANSMISSION WIRE TO 4WD CONTROL ECU)
    1. Disconnect the 4WD control ECU connector.
    2. Measure the resistance according to the value(s) in RESISTANCE SPECIFIED CONDITION TABLE  .

      Standard resistance

      RESISTANCE SPECIFIED CONDITION TABLE

      Tester Connection Specified Condition
      A32-13 (SLC+) - E54-2  Below 1 ohms
      A32-32 (SLC-) - E54-1  Below 1 ohms
      A32-13 (SLC+) - Body ground  10 k ohms or higher
      A32-32 (SLC-) - Body ground  10 k ohms or higher

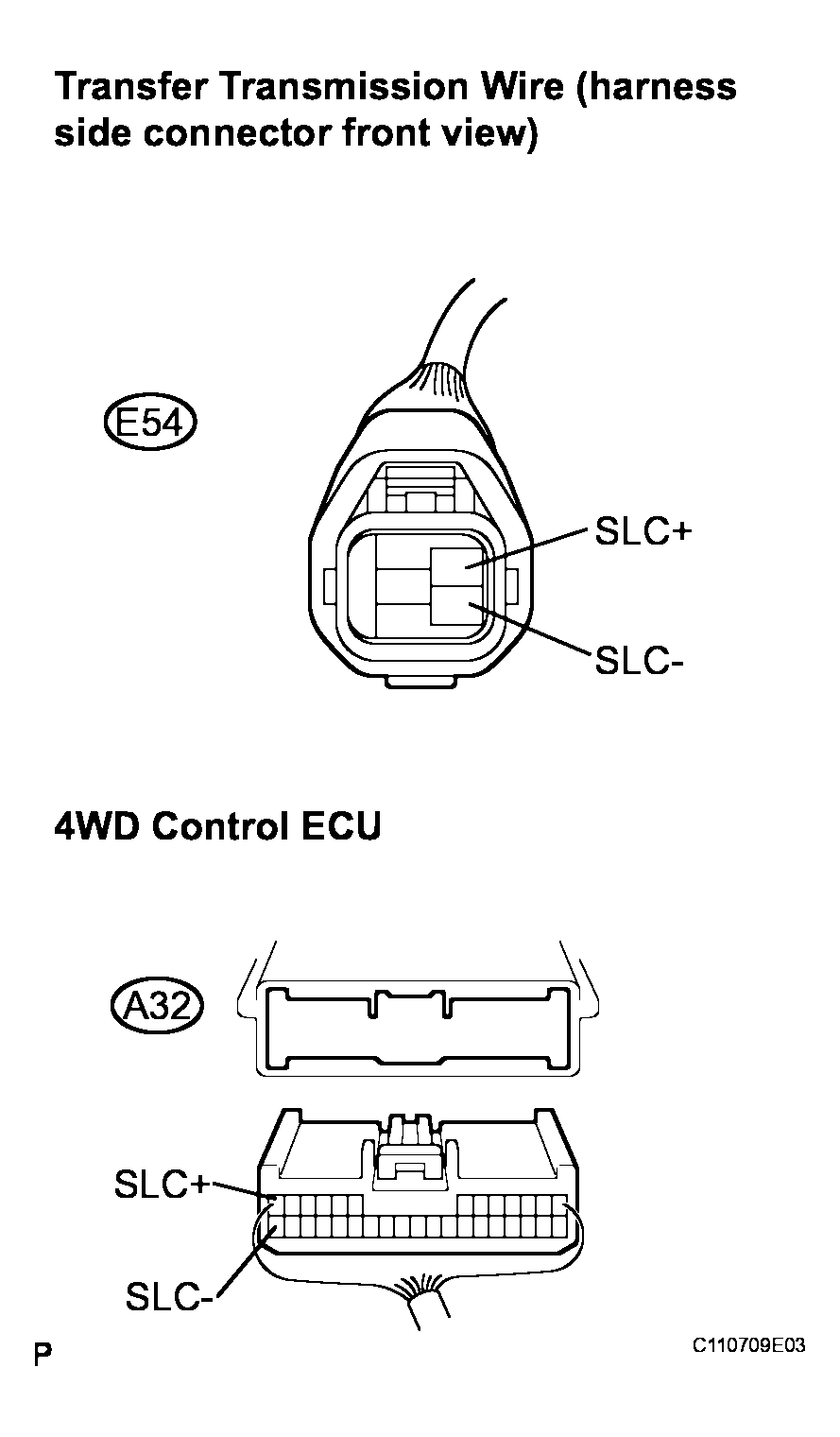

      Fig 2: Identifying Transfer Transmission Wire & 4WD Control ECU Connector Terminals
      G04046727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the transfer transmission wire connector and 4WD control ECU connector.

    Result

    RESULT

    Result Proceed to
    OK
    OK (when troubleshooting in accordance with PROBLEM SYMPTOMS TABLE)
    NG

    B: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    C: REPAIR OR REPLACE HARNESS OR CONNECTOR (SLC+, SLC- CIRCUIT)

    A: Go To Next Step: REPLACE 4WD CONTROL ECU

  3. INSPECT TRANSFER CONTROL SOLENOID ASSEMBLY
    1. Remove the transfer control solenoid assembly (See Step 12 in REMOVAL  ).
    2. Measure the resistance according to the value(s) in RESISTANCE SPECIFICATIONS TABLE  .

    Standard resistance

    RESISTANCE SPECIFICATIONS TABLE

    Tester Connection Condition
    Terminal 1 - Terminal 2 5.0 to 5.5 ohms
    Fig 3: Inspecting Transfer Control Solenoid Assembly
    G04046728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE TRANSFER CONTROL SOLENOID ASSEMBLY

    A: REPLACE TRANSFER TRANSMISSION WIRE
