DTC C1297/97 Steering Angle Sensor: Wiring Diagram

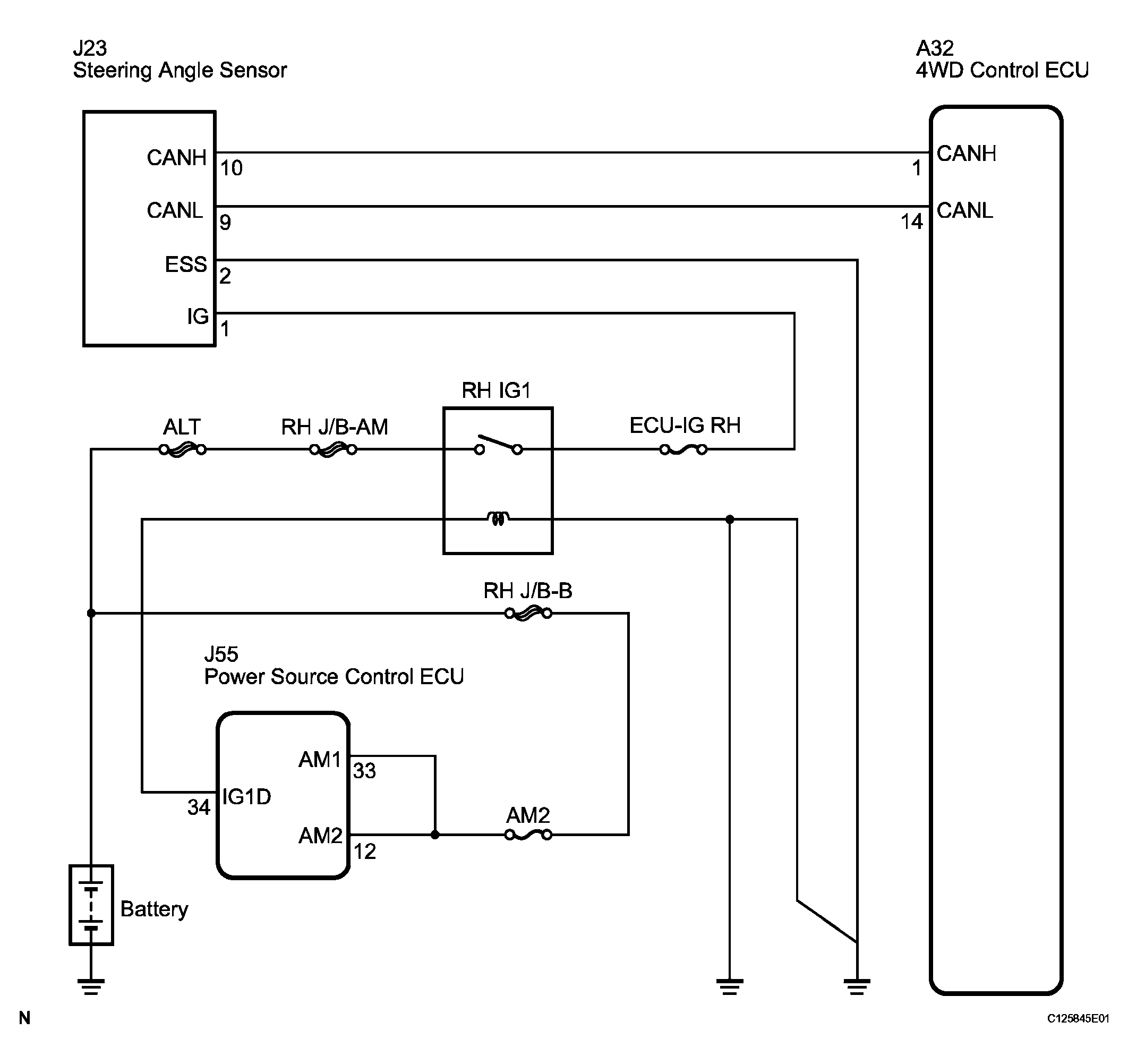

Fig 1: Steering Angle Sensor Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Check the condition of each related circuit connector before troubleshooting (See HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS ).
