Rear Seat Inner Belt Assembly: Installation

1. Check the degree of the tilt when the ELR begins to lock.
   1. Check that the belt does not lock at less than 15 degrees of tilt in any direction but locks at over 45 degrees of tilt while gently pulling the belt.
   NOTE: Do not disassemble the retractor.
   Fig 1: Checking Degree Of Tilt When ELR Begins To Lock

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the claw with the seat belt positioning hole and install the rear seat inner with center belt assembly RH with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

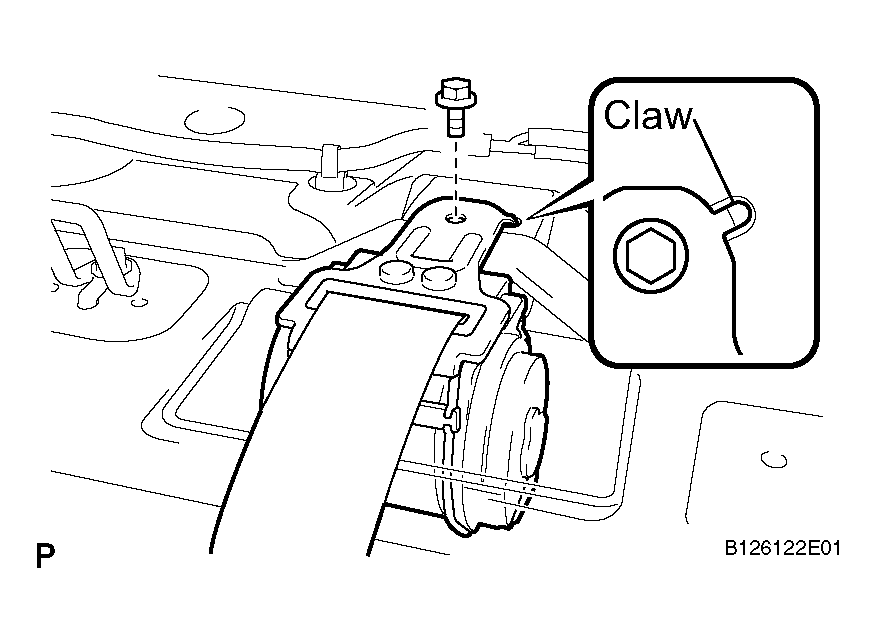

Fig 2: Aligning Claw With Seat Belt Positioning Hole

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the connector to the center stop light assembly.
2. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
3. Engage the 3 clips and 5 claws to install the package tray trim panel assembly and the center stop light assembly as a unit.

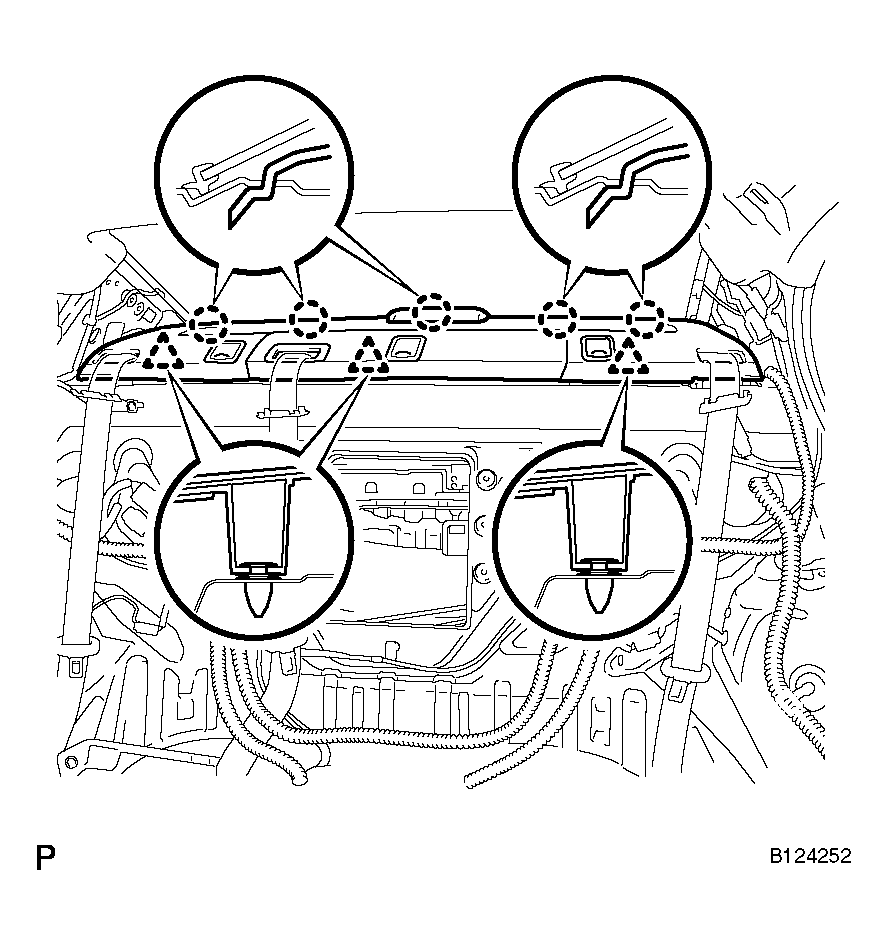

   Fig 3: Installing Package Tray Trim Panel Assembly (Without Rear Sunshade)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 4 claws to install the rear seat shoulder belt cover center.

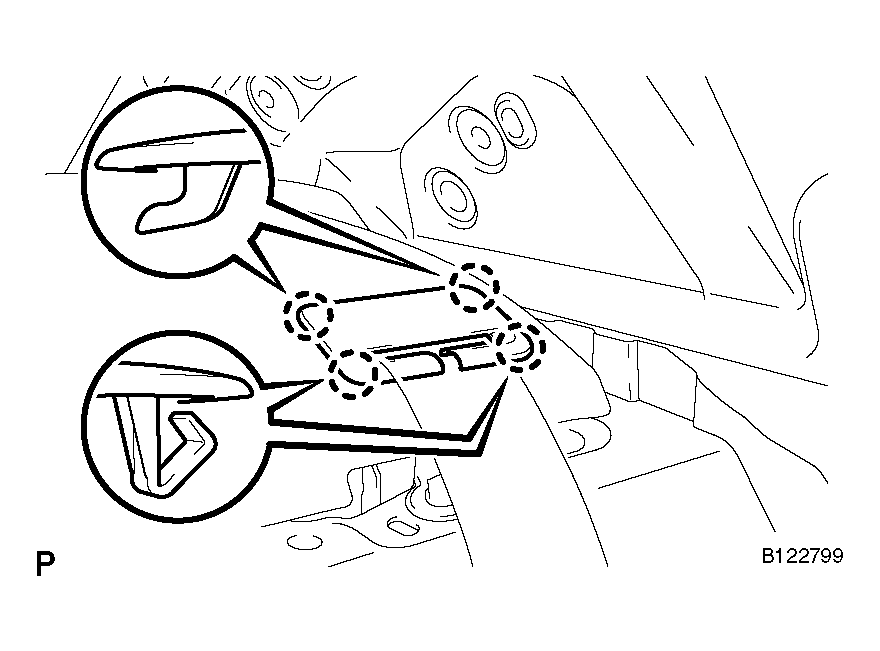

   Fig 4: Installing Rear Seat Shoulder Belt Cover Center Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Engage the 4 claws to install the rear seat shoulder belt cover LH.

   HINT:

   Use the same procedures for the RH side and the LH side.

   Fig 5: Installing Rear Seat Shoulder Belt Cover LH Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the floor end of the rear seat inner with center belt assembly RH with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   NOTE: Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.
7. Check if the ELR locks.
   NOTE: The check should be performed with the outer belt assembly installed.
   Fig 6: Installing Floor End Of Rear Seat Inner With Center Belt Assembly RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.
8. Install the floor end of the rear seat 3 point type belt assembly LH with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   NOTE: Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap protruding parts of the floor panel.

   HINT:

   Use the same procedures for the RH side and the LH side.

9. Check if the ELR locks.
   NOTE: The check should be performed with the outer belt assembly installed.
   1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.

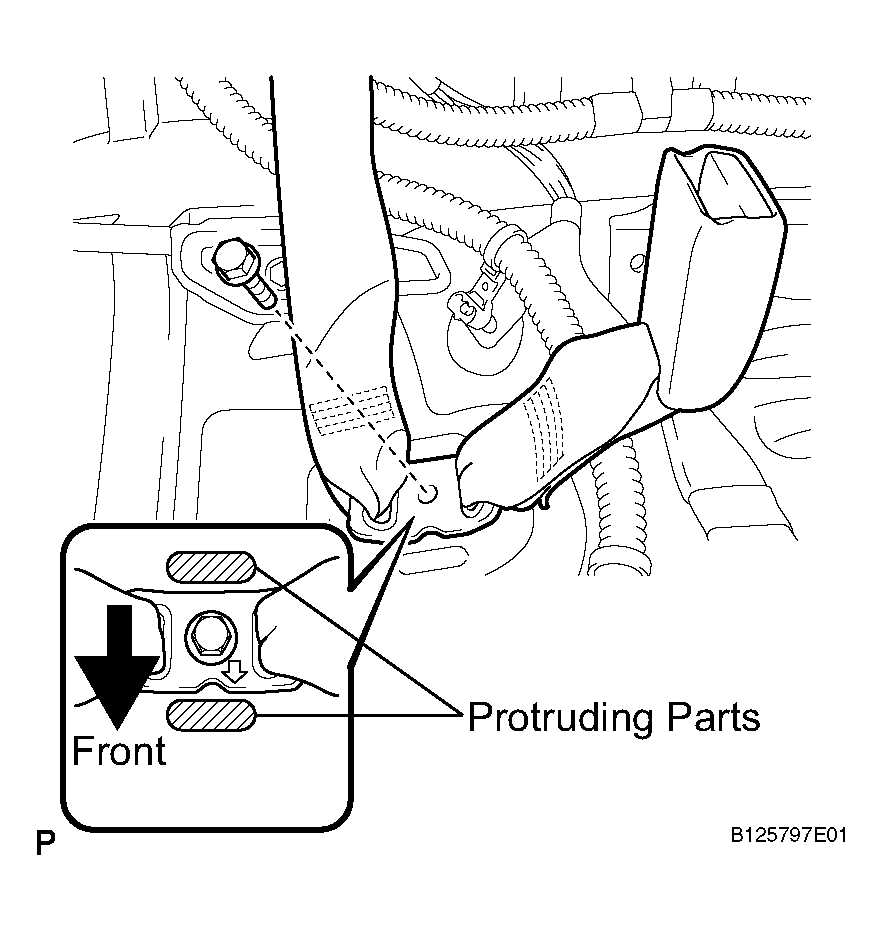

   Fig 7: Installing Floor End Of Rear Seat Point Type Belt Assembly LH With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.
2. Engage the 3 clips to install the package tray trim panel assembly.

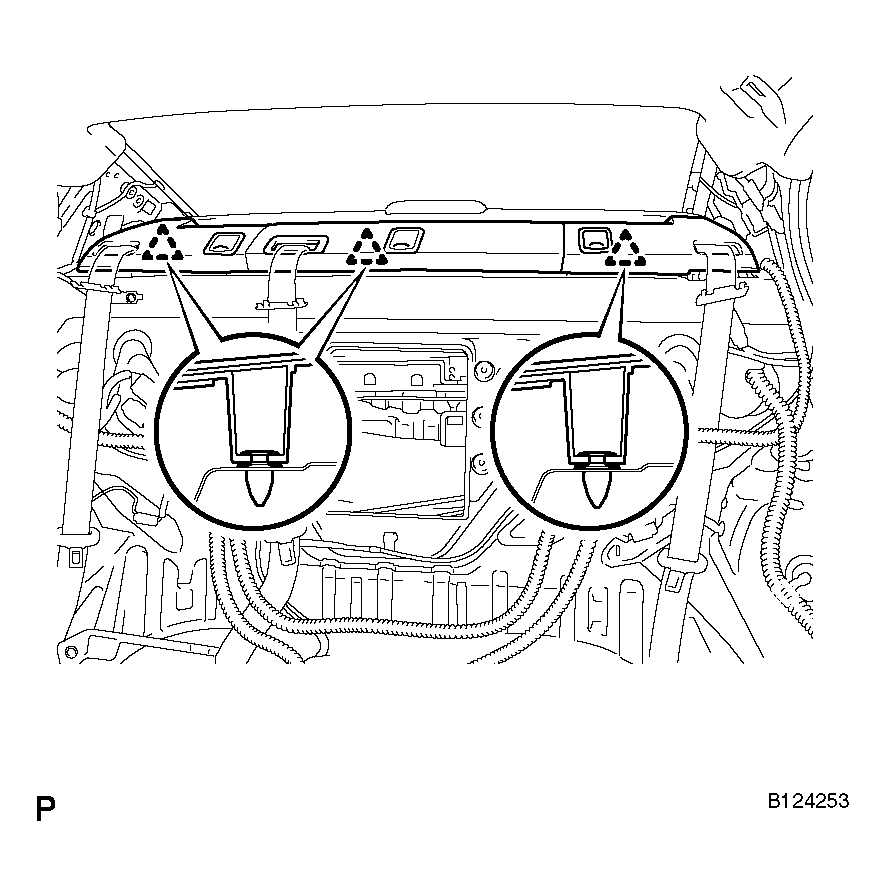

   Fig 8: Installing Package Tray Trim Panel Assembly Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws to install the rear seat shoulder belt cover center.

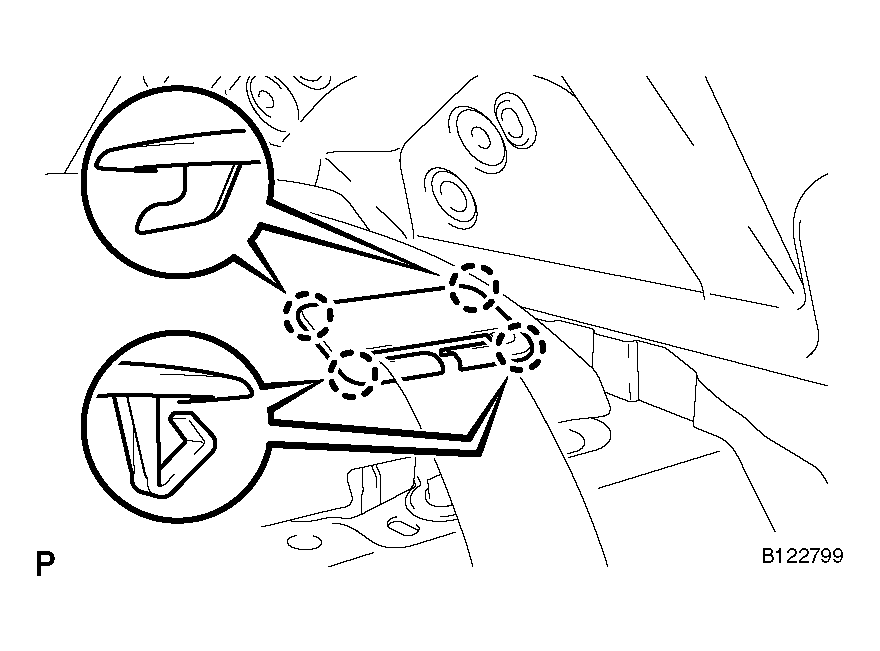

   Fig 9: Installing Rear Seat Shoulder Belt Cover Center Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 4 claws to install the rear seat shoulder belt cover LH.

   HINT:

   Use the same procedures for the RH side and the LH side.

   Fig 10: Engaging Claws To Install Rear Seat Shoulder Belt Cover LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the floor end of the rear seat inner with center belt assembly RH with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   NOTE: Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.
6. Check if the ELR locks.
   NOTE: The check should be performed with the outer belt assembly installed.
   1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.

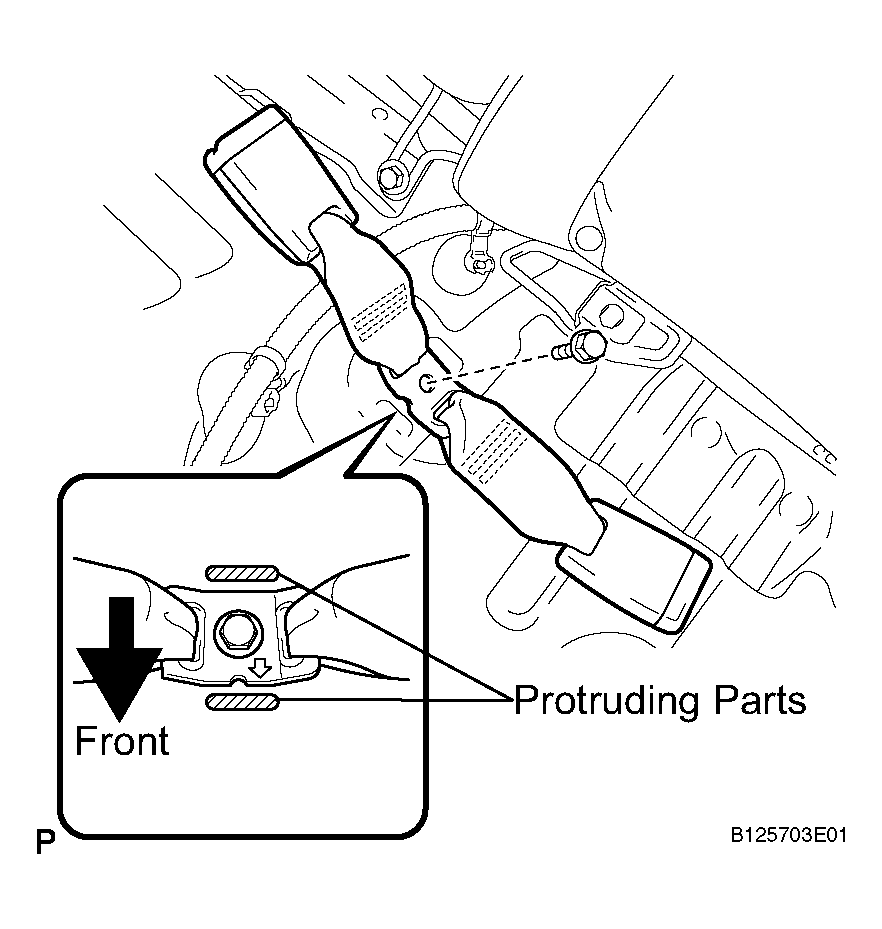

   Fig 11: Installing Floor End Of Rear Seat Inner With Center Belt Assembly RH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

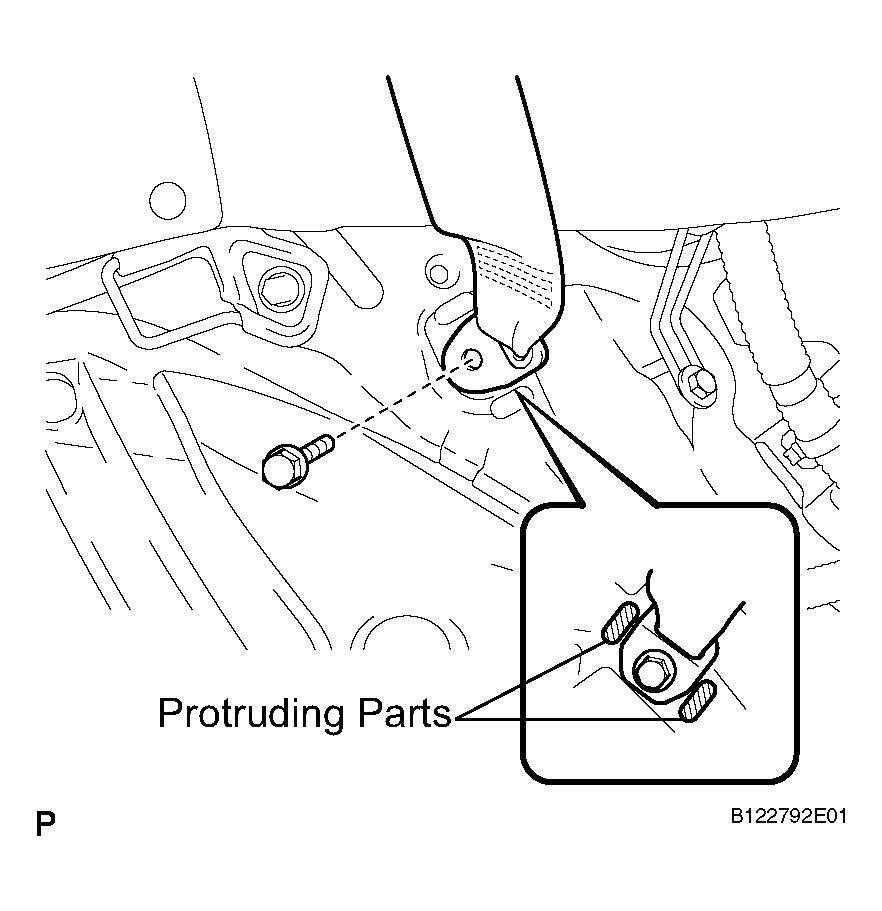

7. Install the floor end of the rear seat 3 point type belt assembly LH with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   NOTE: Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap the protruding parts of the floor panel.
   Fig 12: Installing Floor End Of Rear Seat 3 Point Type Belt Assembly LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use the same procedures for the RH side and the LH side.

8. Check if the ELR locks.

1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.

1. Install the rear seat inner with center belt assembly LH with the bolt.

Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

Fig 13: Installing Rear Seat Inner With Center Belt Assembly LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
