Throttle Body: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Using a clip remover, remove the 7 clips and duct seal.

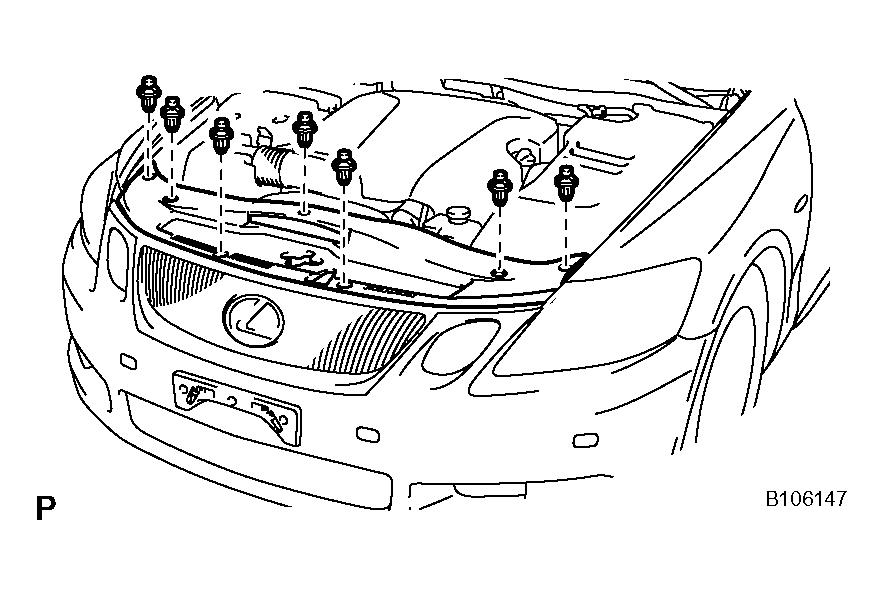

      Fig 1: Identifying Cool Air Intake Duct Seal
      G04018080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE ENGINE UNDER COVER
    1. Using a clip remover, remove the 3 clips.
    2. Remove the 10 screws and under cover.
  4. DRAIN ENGINE COOLANT (See  ON-VEHICLE INSPECTION  )
    Fig 2: Identifying Engine Under Cover
    G04018066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ENGINE ROOM SIDE COVER RH
    1. Loosen the nut and remove the 2 clips and side cover.

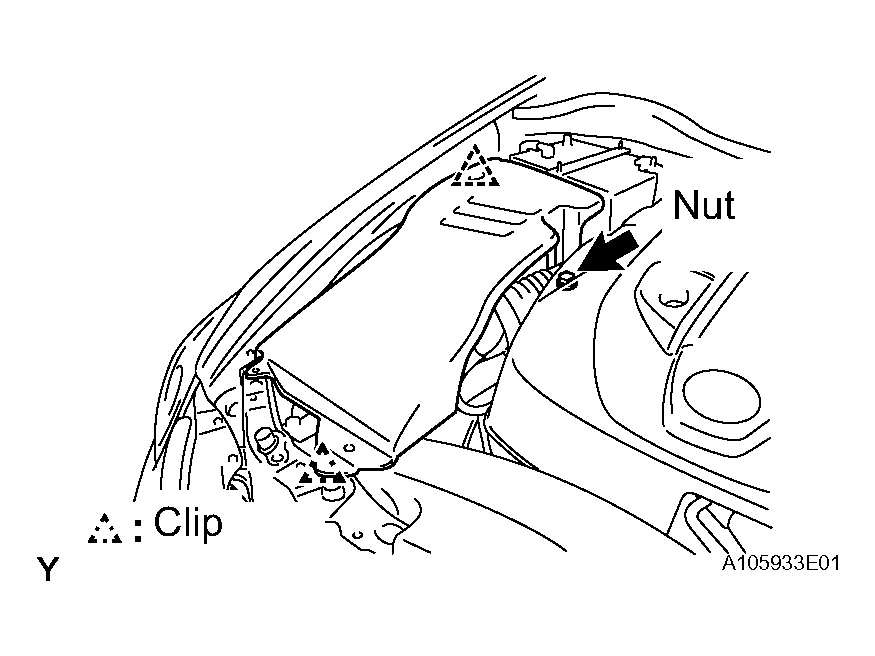

      Fig 3: Identifying Engine Room Side Cover RH
      G04018082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE V-BANK COVER
    1. Remove the 2 nuts and V-bank cover.

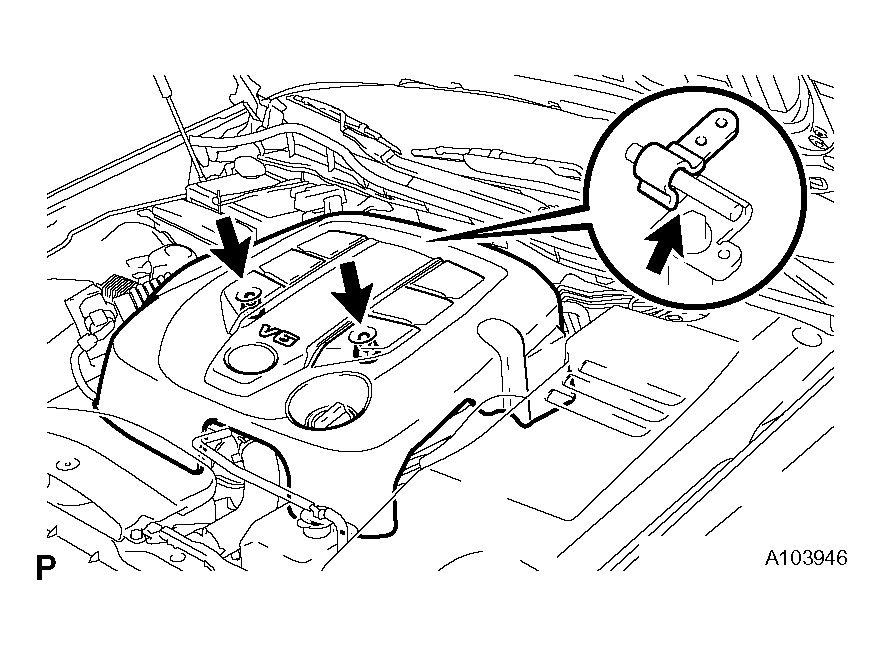

      Fig 4: Identifying V-Bank Cover
      G04018083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. DISCONNECT NO. 2 VENTILATION HOSE
    1. Disconnect the ventilation hose from the cylinder head.
      Fig 5: Locating Ventilation Hose To Cylinder Head Cover
      G04018097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
    1. Disconnect the MAF meter connector.
    2. Disconnect the clamp from the air cleaner.

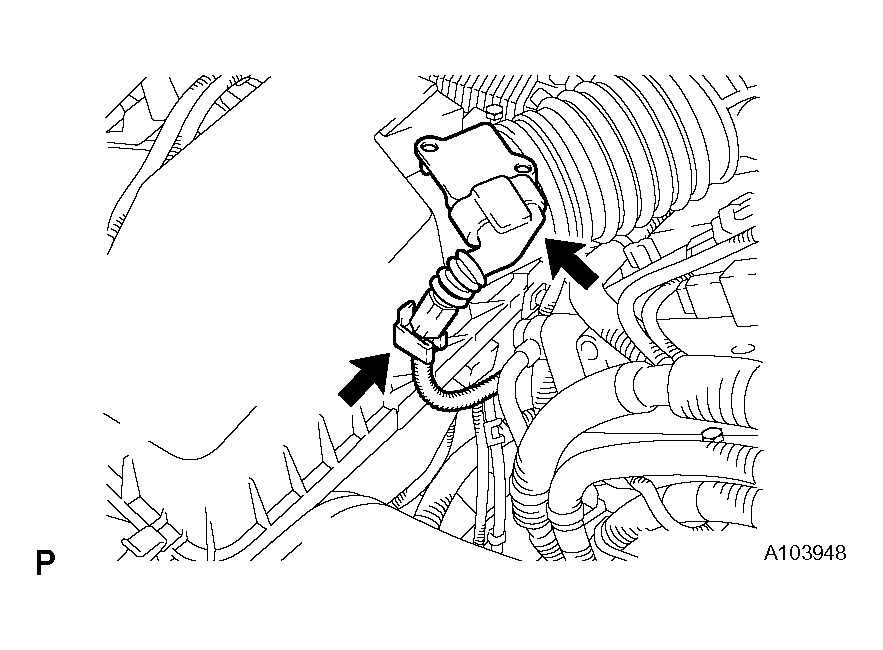

      Fig 6: Identifying Clamp From Air Cleaner
      G04018085Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the VSV (for EVAP).

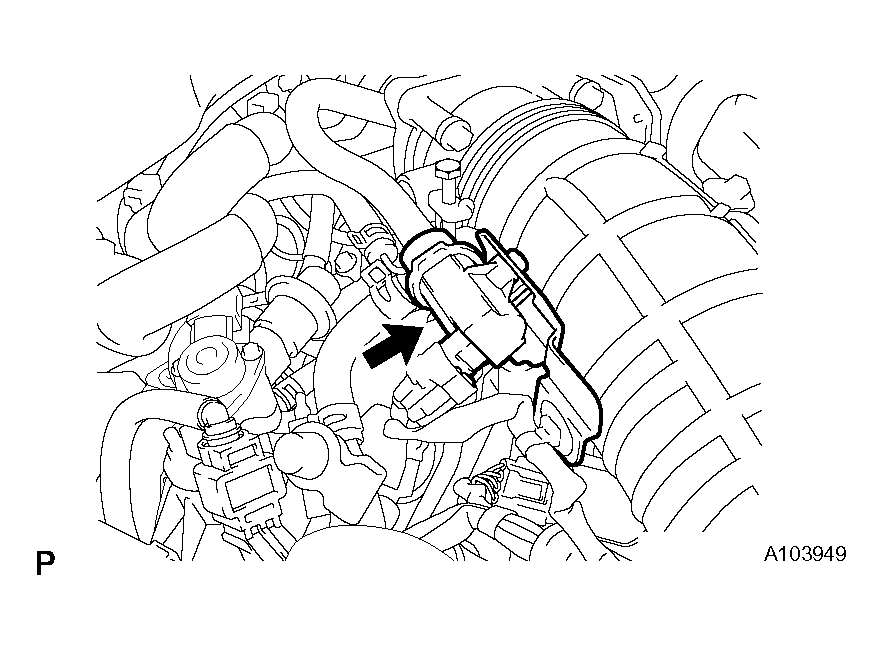

      Fig 7: Identifying VSV (For EVAP)
      G04018086Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the 4 clamps.
    5. Remove the hose clamp and air cleaner cap with air cleaner hose.

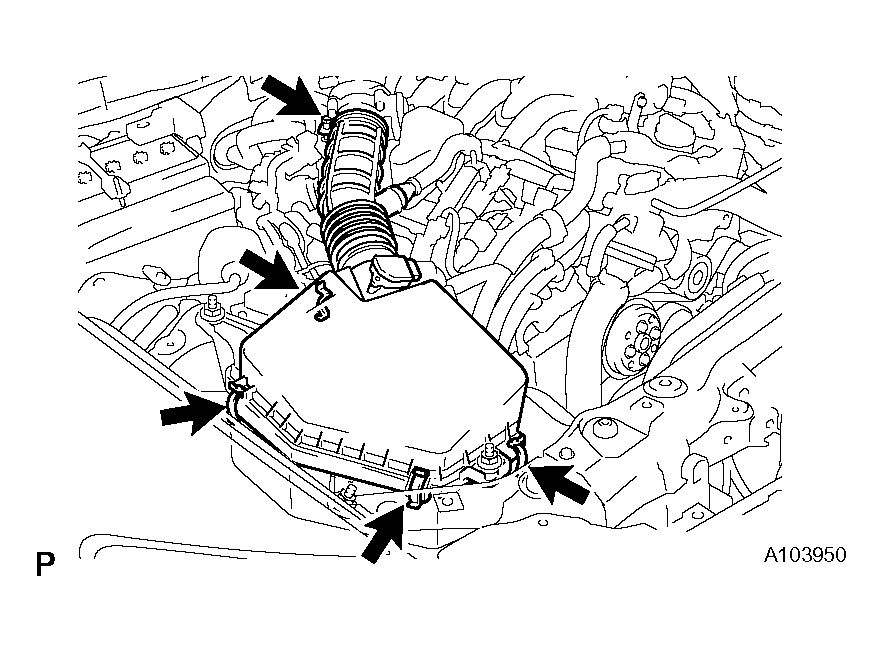

      Fig 8: Identifying Air Cleaner Cap With Air Cleaner Hose
      G04018087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE WATER BYPASS HOSE
    1. Disconnect the 2 water bypass hoses from the throttle body.

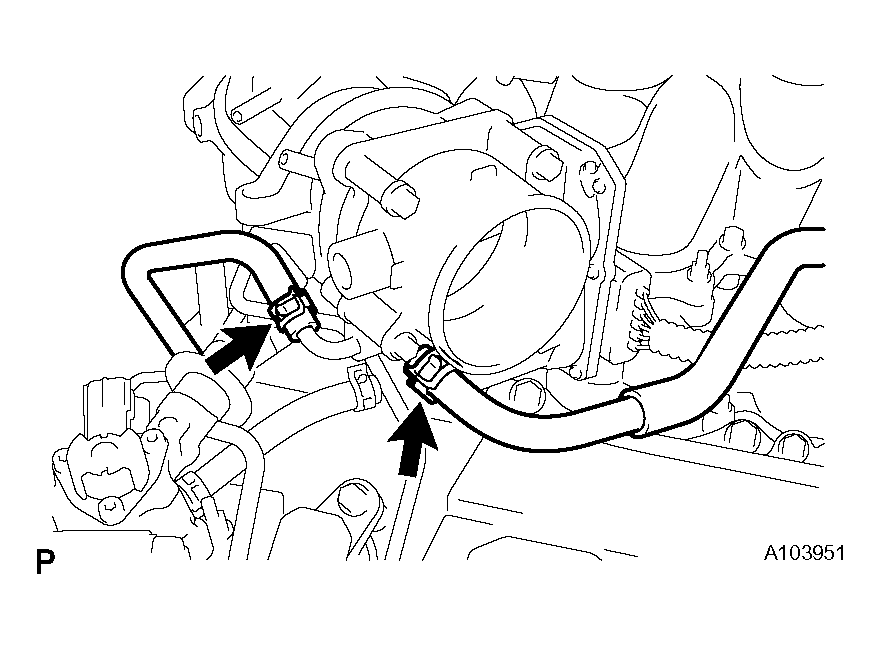

      Fig 9: Identifying Water By-Pass Hose
      G04018088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE THROTTLE BODY
    1. Disconnect the throttle motor connector.
    2. Remove the 4 bolts, throttle body and gasket.

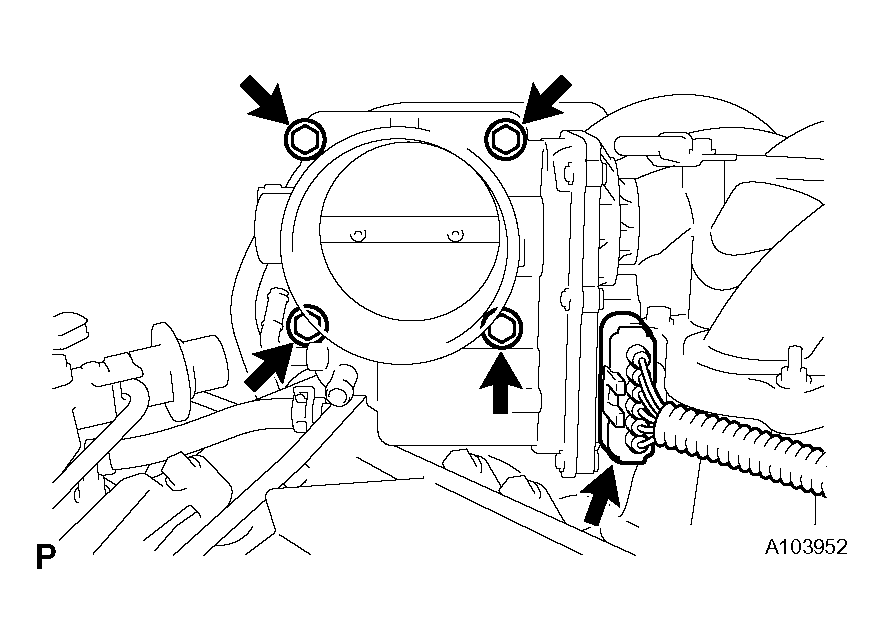

      Fig 10: Identifying Throttle Body
      G04018089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
