Camshaft Timing Oil Control Valve Assembly: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE V-BANK COVER (see  REMOVAL   )
  3. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Exhaust Side)
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
      Fig 1: Identifying Camshaft Timing Oil Control Valve (For Bank 1 Exhaust Side)
      G04018045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 1 Intake Side)
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and V-bank cover bracket.
    3. Remove the bolt and oil control valve.
    4. Remove the O-ring from the oil control valve.

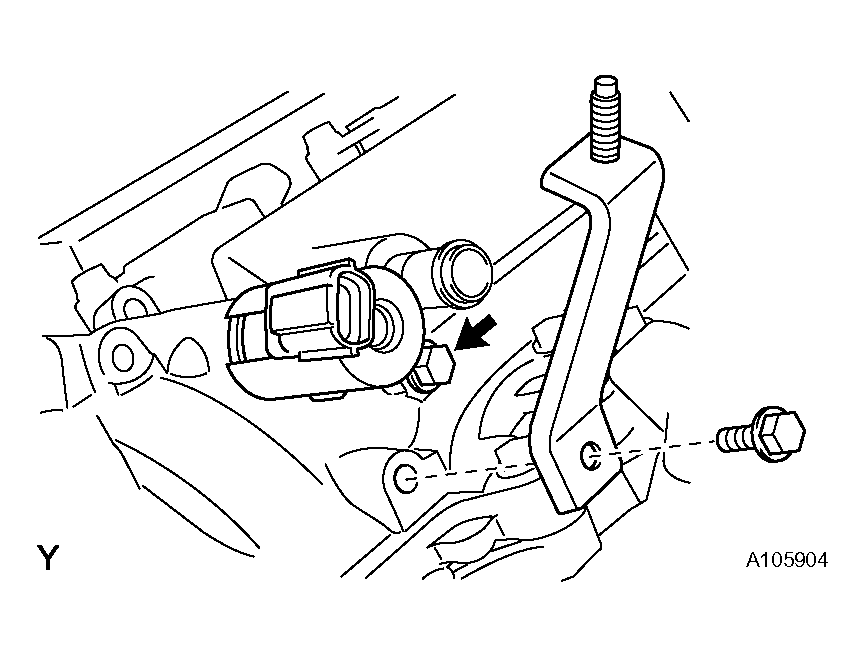

      Fig 2: Identifying Camshaft Timing Oil Control Valve (For Bank 1 Intake Side)
      G04018046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE COOL AIR INTAKE DUCT SEAL (see  REMOVAL   )
  6. REMOVE ENGINE UNDER COVER (see  REMOVAL   )
  7. DRAIN ENGINE COOLANT (See  ON-VEHICLE INSPECTION  )
  8. REMOVE ENGINE ROOM SIDE COVER RH (see  REMOVAL   )
  9. REMOVE NO. 2 VENTILATION HOSE (see  REMOVAL   )
  10. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE (see  REMOVAL   )
  11. DISCONNECT WATER BYPASS HOSE (see  REMOVAL   )
  12. DISCONNECT HEATER WATER INLET HOSE (See  REMOVAL  )
  13. DISCONNECT HEATER WATER OUTLET HOSE (See  REMOVAL  )
  14. REMOVE ENGINE REAR COVER (See  REMOVAL  )
  15. DISCONNECT UNION TO CHECK VALVE HOSE (See  REMOVAL  )
  16. REMOVE VENTILATION HOSE (See  REMOVAL  )
  17. DISCONNECT COLD START INJECTOR (See  REMOVAL  )
  18. REMOVE INTAKE AIR SURGE TANK (See  REMOVAL  )
  19. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Intake Side)
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
      Fig 3: Identifying Camshaft Timing Oil Control Valve (For Bank 2 Intake Side)
      G04018047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE (for Bank 2 Exhaust Side)
    1. Disconnect the oil control valve connector.
    2. Remove the bolt and oil control valve.
    3. Remove the O-ring from the oil control valve.
      Fig 4: Identifying Camshaft Timing Oil Control Valve (For Bank 2 Exhaust Side)
      G04018048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
