Mil Circuit: Wiring Diagram

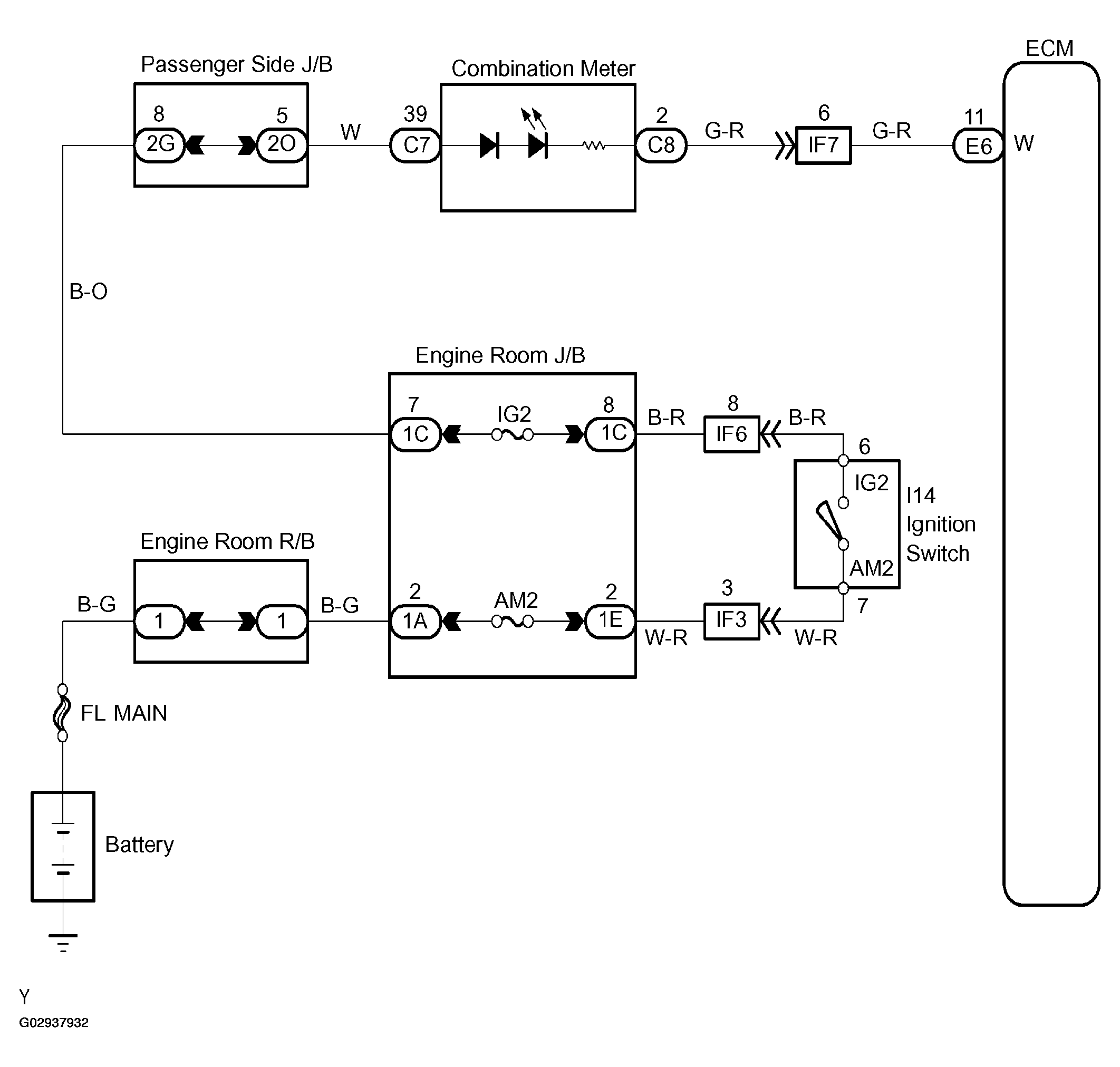

Fig 1: Wiring Diagram - MIL Circuit

G02937932

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
