Communication Circuit: Wiring Diagram

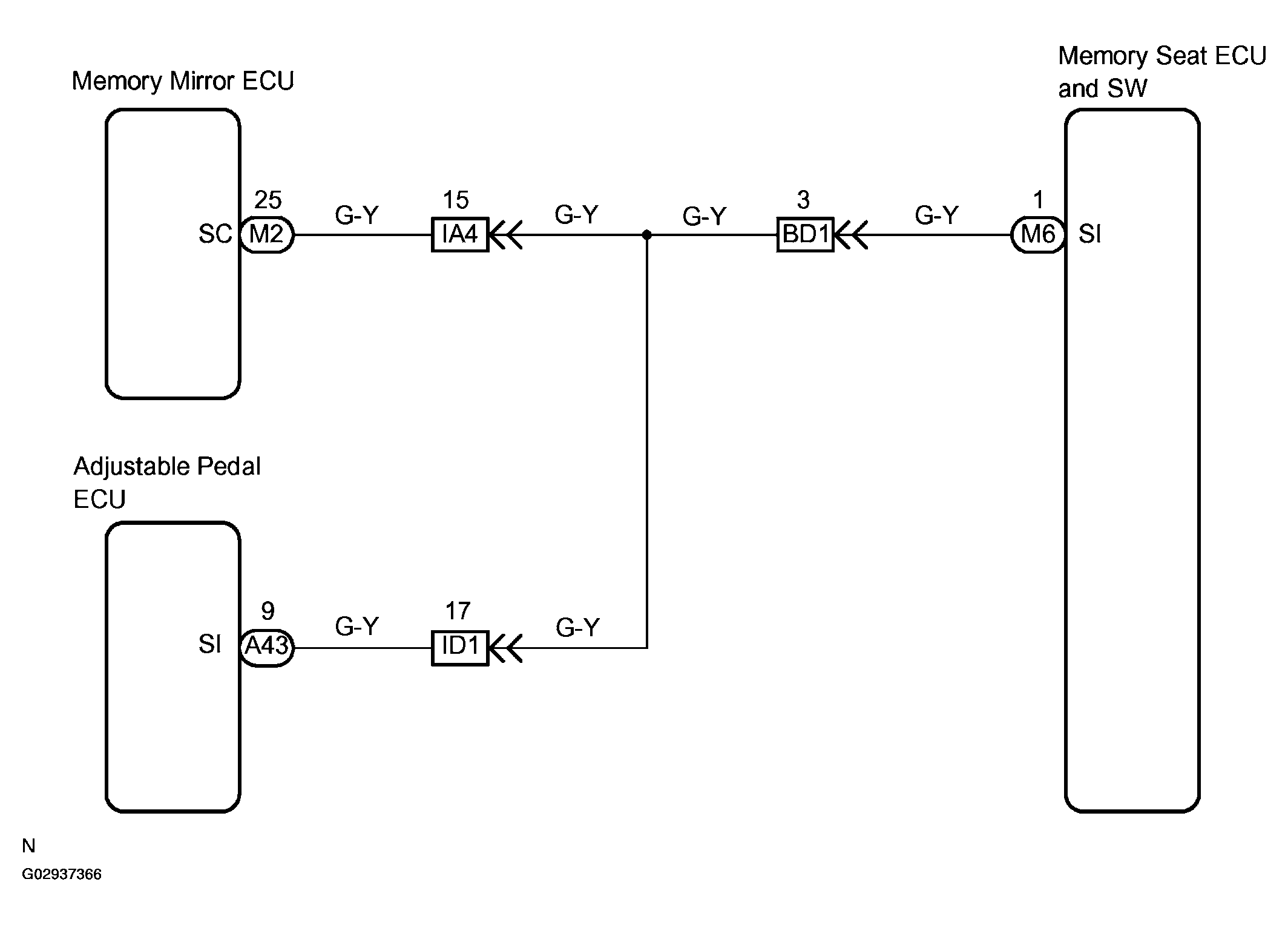

Fig 1: Communication Circuit Wiring Diagram

G02937366

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
