Mirror Motor Circuit: Wiring Diagram

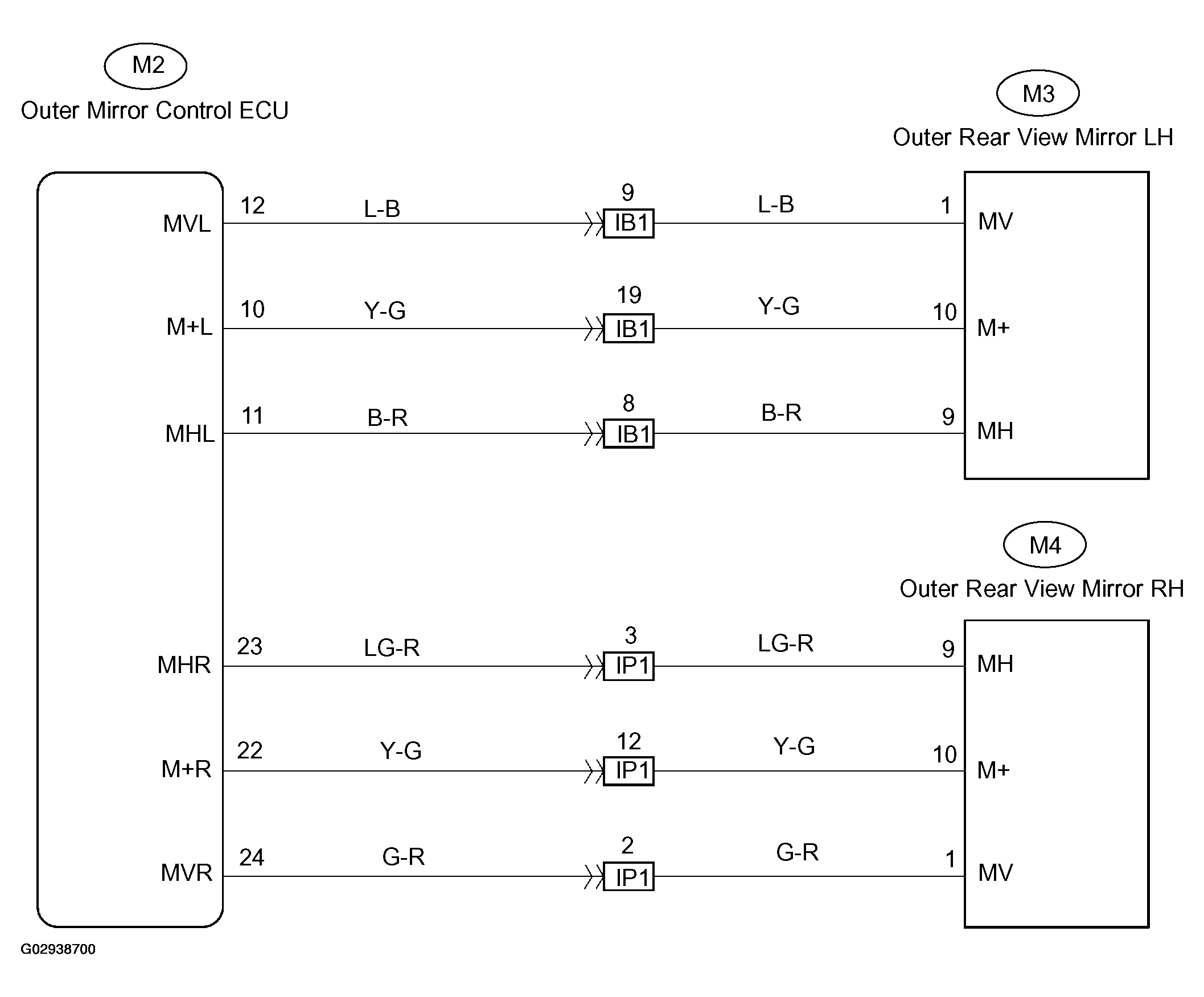

Fig 1: Mirror Motor Circuit Diagram

G02938700

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
