Cruise Control Switch Circuit: Wiring Diagram

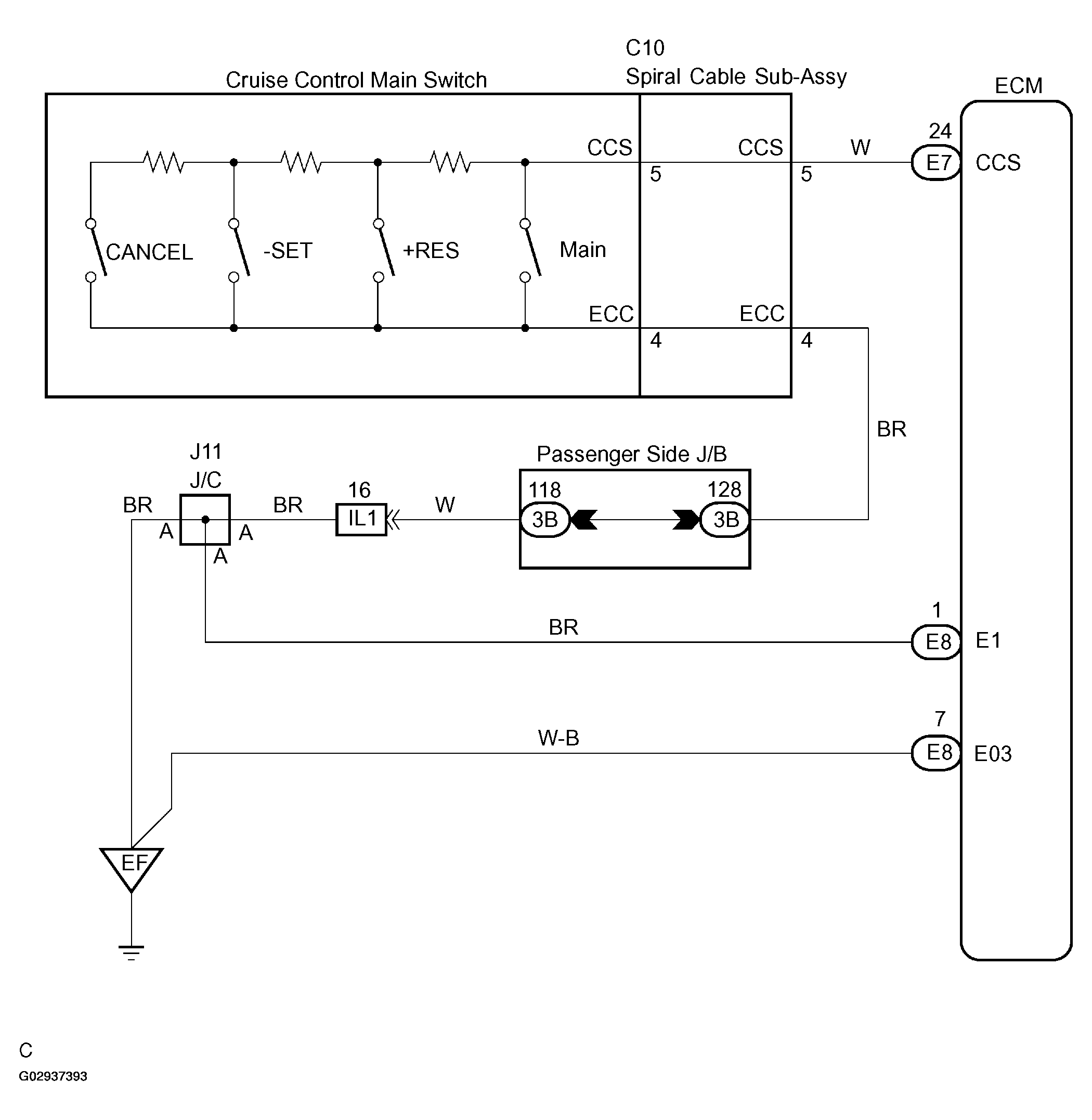

Fig 1: Cruise Control Switch Circuit Wiring Diagram

G02937393

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
