DTC P0116: Engine Coolant Temp. Circuit Range/Performance Problem: Wiring Diagram

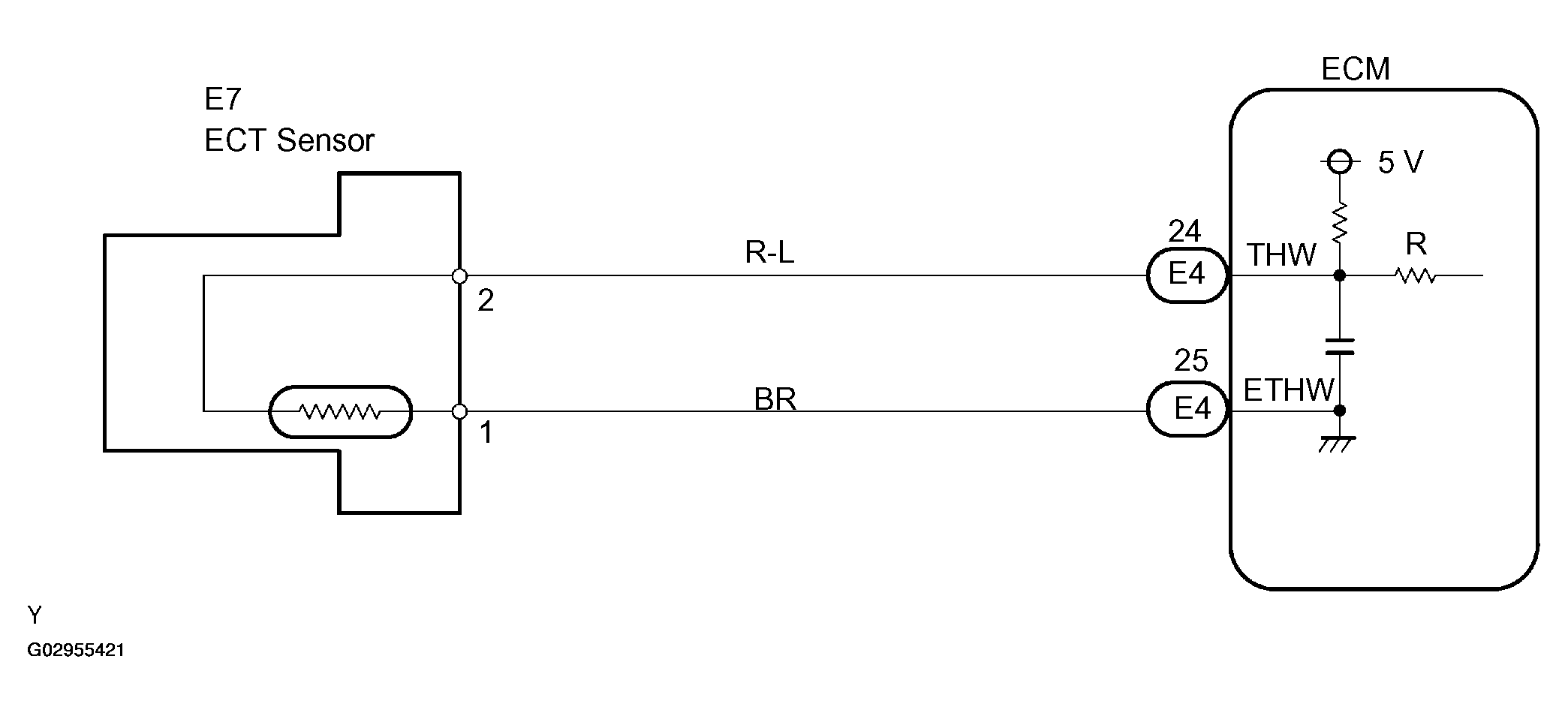

Fig 1: Engine Coolant Temperature Wiring Diagram

G02955421

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
