DTC P0101: Mass Or Volume Air Flow Circuit Range/Performance Problem: Wiring Diagram

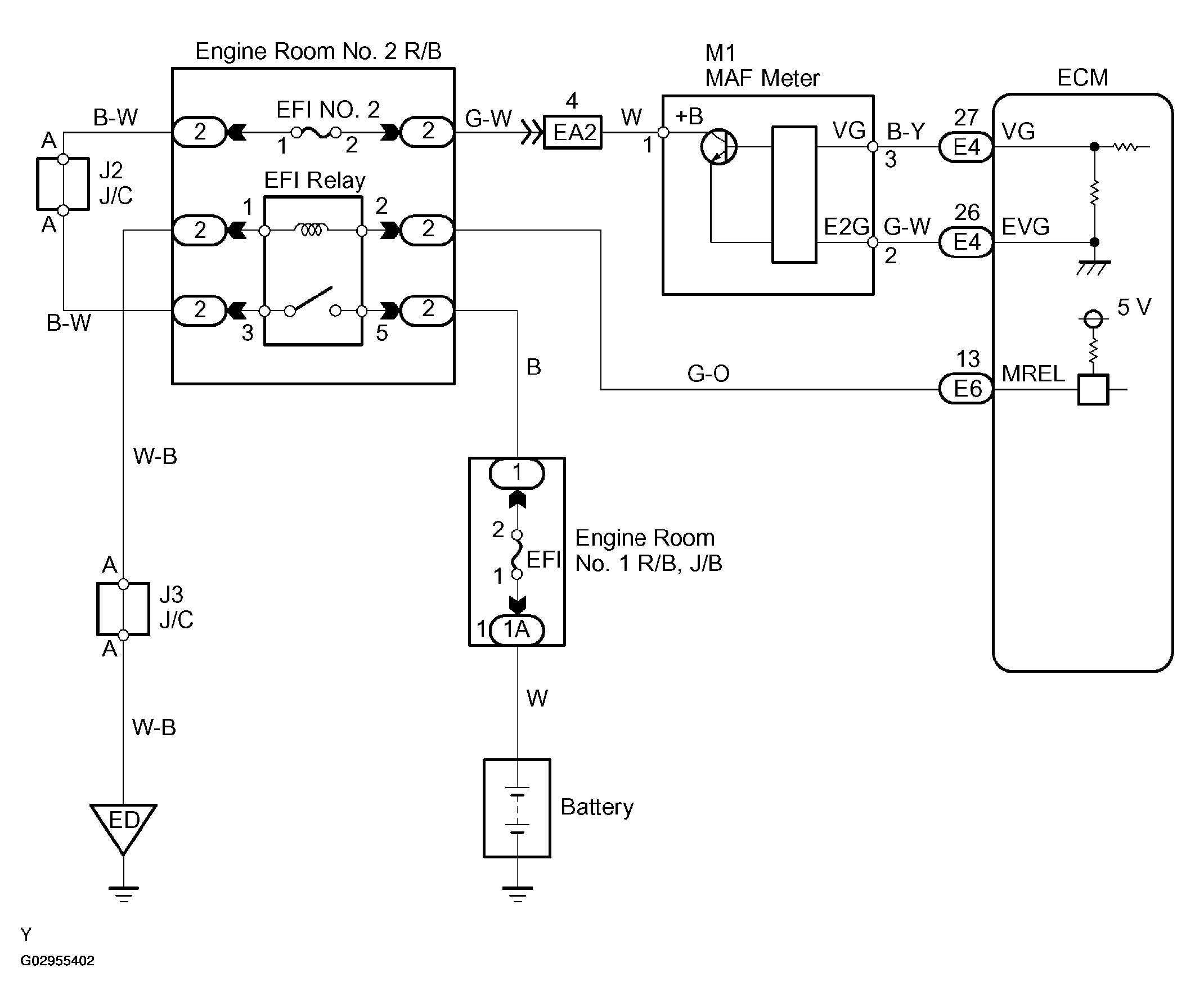

Fig 1: Mass Or Volume Air Flow Wiring Diagram

G02955402

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
