Rear Seat: Components

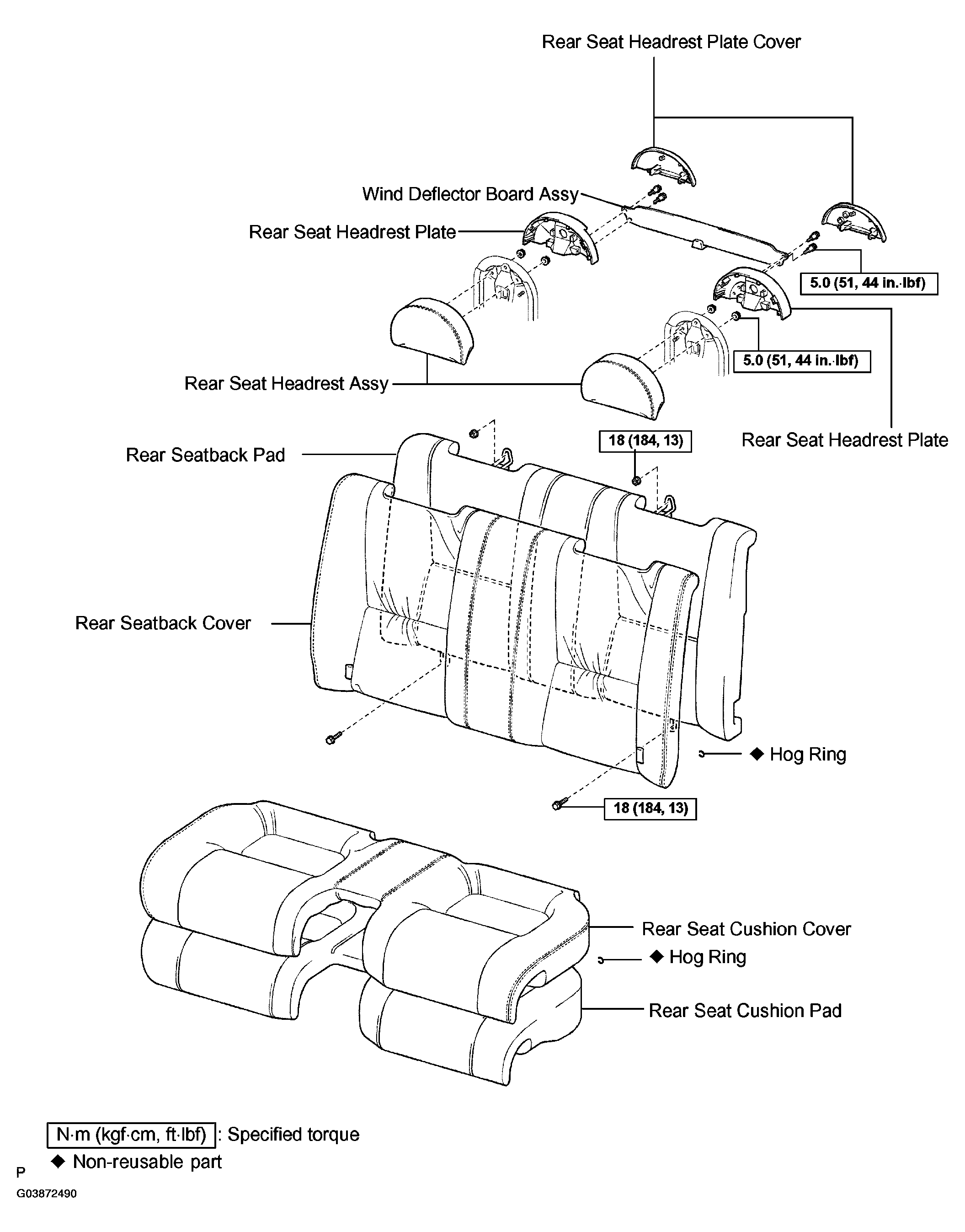

Fig 1: Identifying Rear Seat Components & Replacements

G03872490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
