TC Terminal Circuit: Wiring Diagram

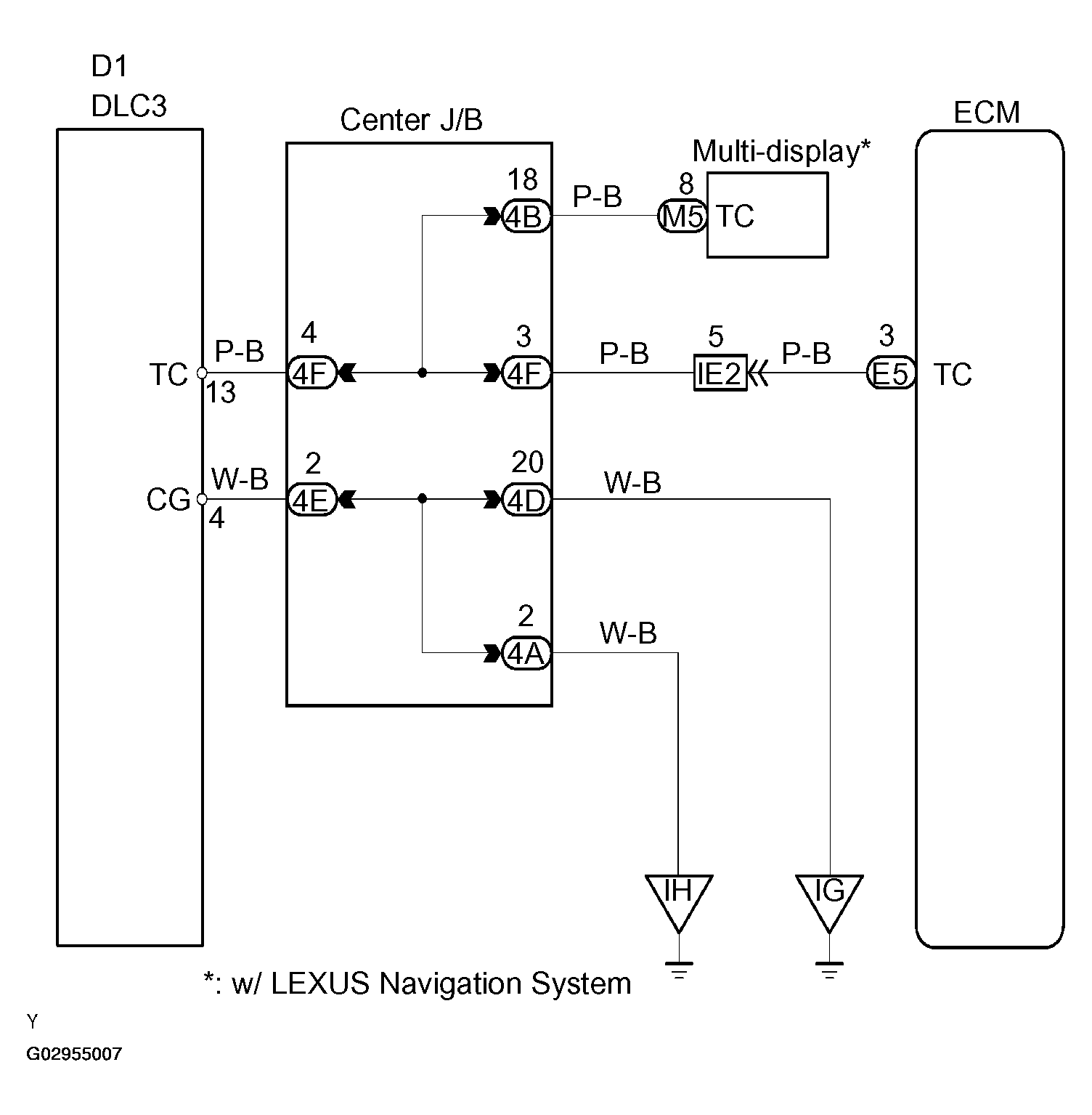

Fig 1: Wiring Diagram - TC Terminal Circuit

G02955007

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
