Cruise Control Switch Circuit: Wiring Diagram

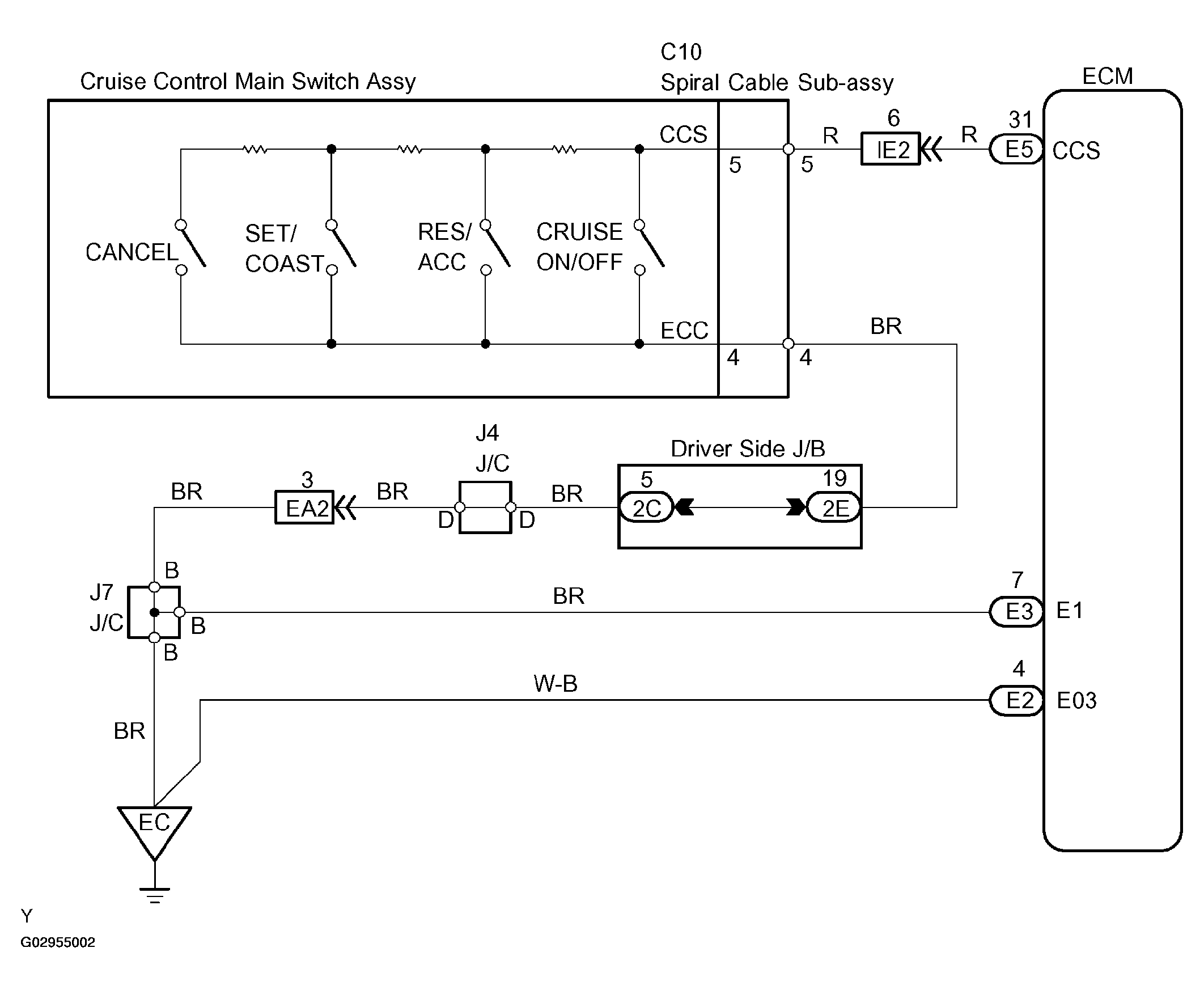

Fig 1: Wiring Diagram - Cruise Control Switch Circuit

G02955002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
