Inspection Procedure
- READ VALUE OF HAND-HELD TESTER
- Check the DATA LIST for proper functioning of the outer mirror switches.
Standard (Multiplex network body ECU):
DATA LIST REFERENCEItem Measurement Item/Display (Range) Normal Condition MIRR SEL SWITCH R Mirror selection switch signal for RH mirror/ON or OFF ON: Switch is in Right position MIRR SEL SWITCH R Mirror selection switch signal for RH mirror/ON or OFF OFF: Switch is in original or Left position MIRR SEL SWITCH L Mirror selection switch signal for LH mirror/ON or OFF ON: Switch is in Left position MIRR SEL SWITCH L Mirror selection switch signal for LH mirror/ON or OFF OFF: Switch is in original or Right position MIRR POS SWITCH R Mirror position switch signal (Right)/ON or OFF ON: Switch R is ON MIRR POS SWITCH R Mirror position switch signal (Right)/ON or OFF OFF: Any switch except R is ON or all switches are OFF MIRR POS SWITCH L Mirror position switch signal (Left)/ON or OFF ON: Switch L is ON MIRR POS SWITCH L Mirror position switch signal (Left)/ON or OFF OFF: Any switch except L is ON or all switches are OFF MIRR POS SWITCH UP Mirror position switch signal (Up)/ON or OFF ON: Switch UP is ON MIRR POS SWITCH UP Mirror position switch signal (Up)/ON or OFF OFF: Any switch except UP is ON or all switches are OFF MIRR POS SWITCH DOWN Mirror position switch signal (Down)/ON or OFF ON: Switch DOWN is ON MIRR POS SWITCH DOWN Mirror position switch signal (Down)/ON or OFF OFF: Any switch except DOWN is ON or all switches are OFF
- OK: Go to step 4
- NG: GO TO NEXT STEP.
- Check the DATA LIST for proper functioning of the outer mirror switches.
- INSPECT OUTER MIRROR SWITCH ASSY (See INSPECTION
)
- NG: REPLACE OUTER MIRROR SWITCH ASSY
- OK: Go to next step.
- CHECK WIRE HARNESS (OUTER MIRROR SWITCH ASSY - MULTIPLEX NETWORK BODY ECU) (See REMOTE CONTROL MIRROR SWITCH CIRCUIT
)
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: Go to next step.
- PERFORM ACTIVE TEST USING HAND-HELD TESTER
- Select the ACTIVE TEST, use the hand-held tester to generate a control command, and then check that the outer rear view mirrors.
Standard (OUTER MIRROR CONTROL ECU):
ACTIVE TEST REFERENCEItem Test Details MIRR UP/DOWN Mirror vertical operation UP/DOWN MIRR RIGHT/LEFT Mirror horizontal operation RIGHT/LEFT
- OK: CHECK AND REPLACE OUTER MIRROR CONTROL ECU ASSY
- NG: GO TO NEXT STEP.
- Select the ACTIVE TEST, use the hand-held tester to generate a control command, and then check that the outer rear view mirrors.
- INSPECT OUTER REAR VIEW MIRROR ASSY
- LH:
Inspect the outer rear view mirror.
- Disconnect the R23 mirror connector.
- Apply battery voltage and check operation of the mirror face.
Standard (LH):

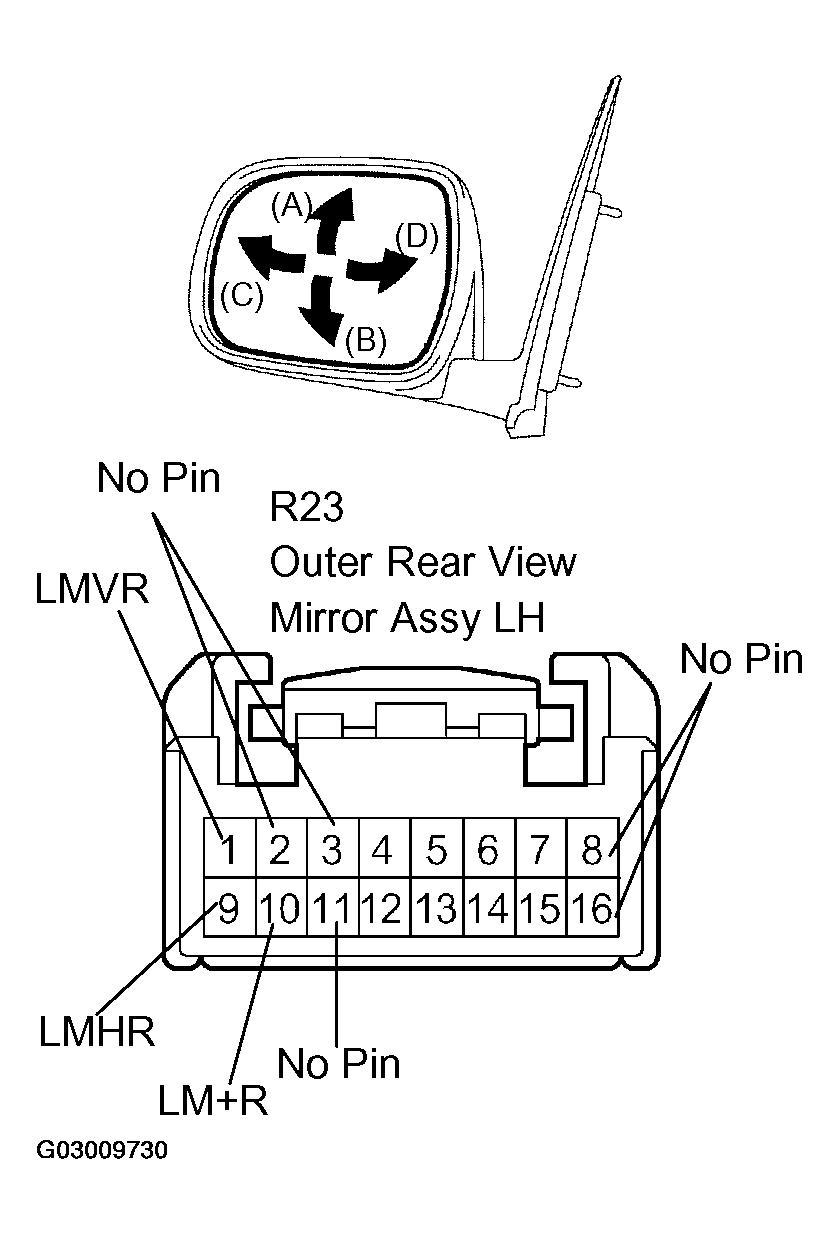

MIRROR FACE OPERATION REFERENCE (LH)Measurement Condition Mirror Operation Battery positive (+) --> R23-1 (LMVR) Battery negative (-) --> R23-10 (LM+R) Turns upward (A) Battery positive (+) --> R23-10 (LM+R) Battery negative (-) --> R23-1 (LMVR) Turns downward (B) Battery positive (+) --> R23-10 (LM+R) Battery negative (-) --> R23-9 (LMHR) Turns left (C) Battery positive (+) --> R23-9 (LMHR) Battery negative (-) --> R23-10 (LM+R) Turns right (D) If the result is not as specified, proceed to NG-A.
- RH:
Inspect the outer rear view mirror.
- Disconnect the R24 mirror connector.
- Apply battery voltage and check operation of the mirror face.
Standard (RH):

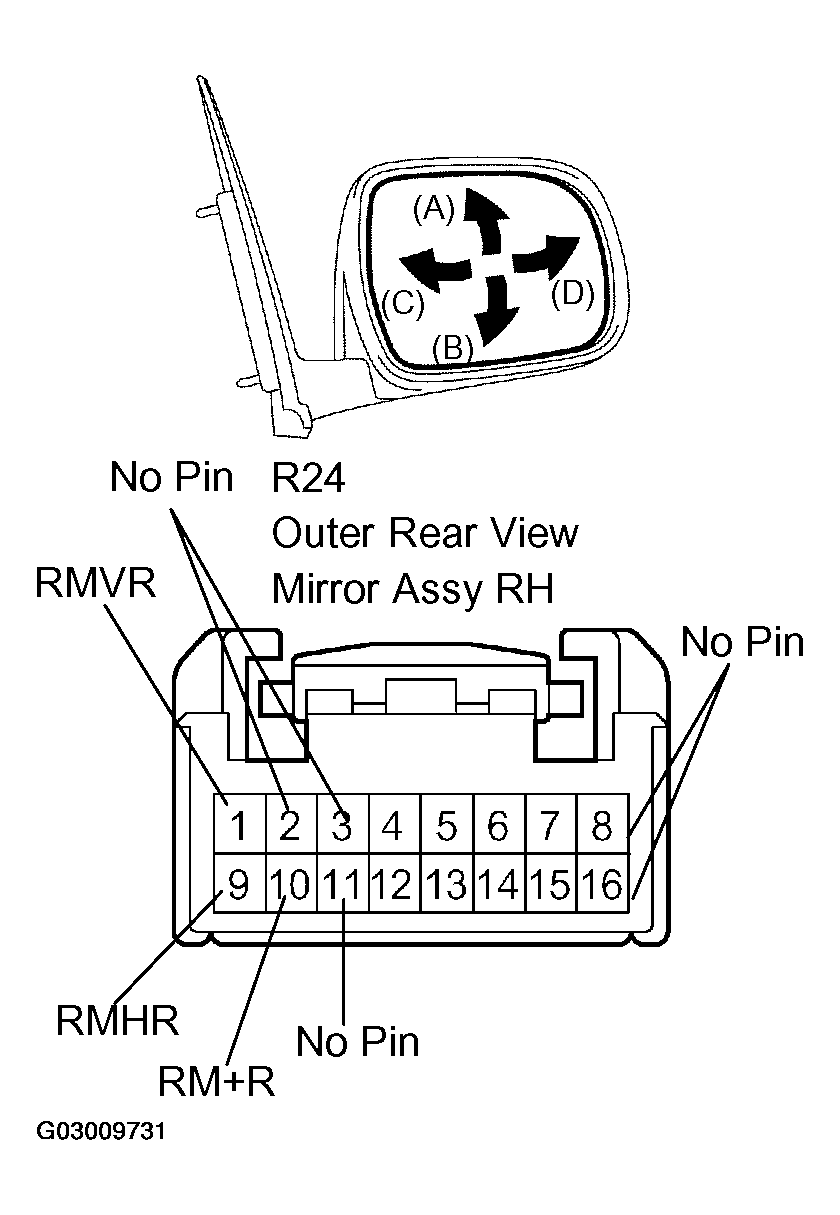

MIRROR FACE OPERATION REFERENCE (RH)Measurement Condition Mirror Operation Battery positive (+) --> R24-1 (RMVR) Battery negative (-) --> R24-10 (RM+R) Turns upward (A) Battery positive (+) --> R24-10 (RM+R) Battery negative (-) --> R24-1 (RMVR) Turns downward (B) Battery positive (+) --> R24-10 (RM+R) Battery negative (-) --> R24-9 (RMHR) Turns right (D) Battery positive (+) --> R24-9 (RMHR) Battery negative (-) --> R24-10 (RM+R) Turns left (C) If the result is not as specified, proceed to NG-B.
- NG-A: REPLACE OUTER REAR VIEW MIRROR ASSY LH
- NG-B: REPLACE OUTER REAR VIEW MIRROR ASSY RH
- OK: REPLACE OUTER MIRROR CONTROL ECU ASSY
- LH:
