Home >> Lexus >> 2005 >> RX 330 AWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Dynamic Laser Cruise Control System >> DTC U0122/64: Lost Communication With Vehicle Dynamics Control Module >> Wiring Diagram

DTC U0122/64: Lost Communication With Vehicle Dynamics Control Module: Wiring Diagram

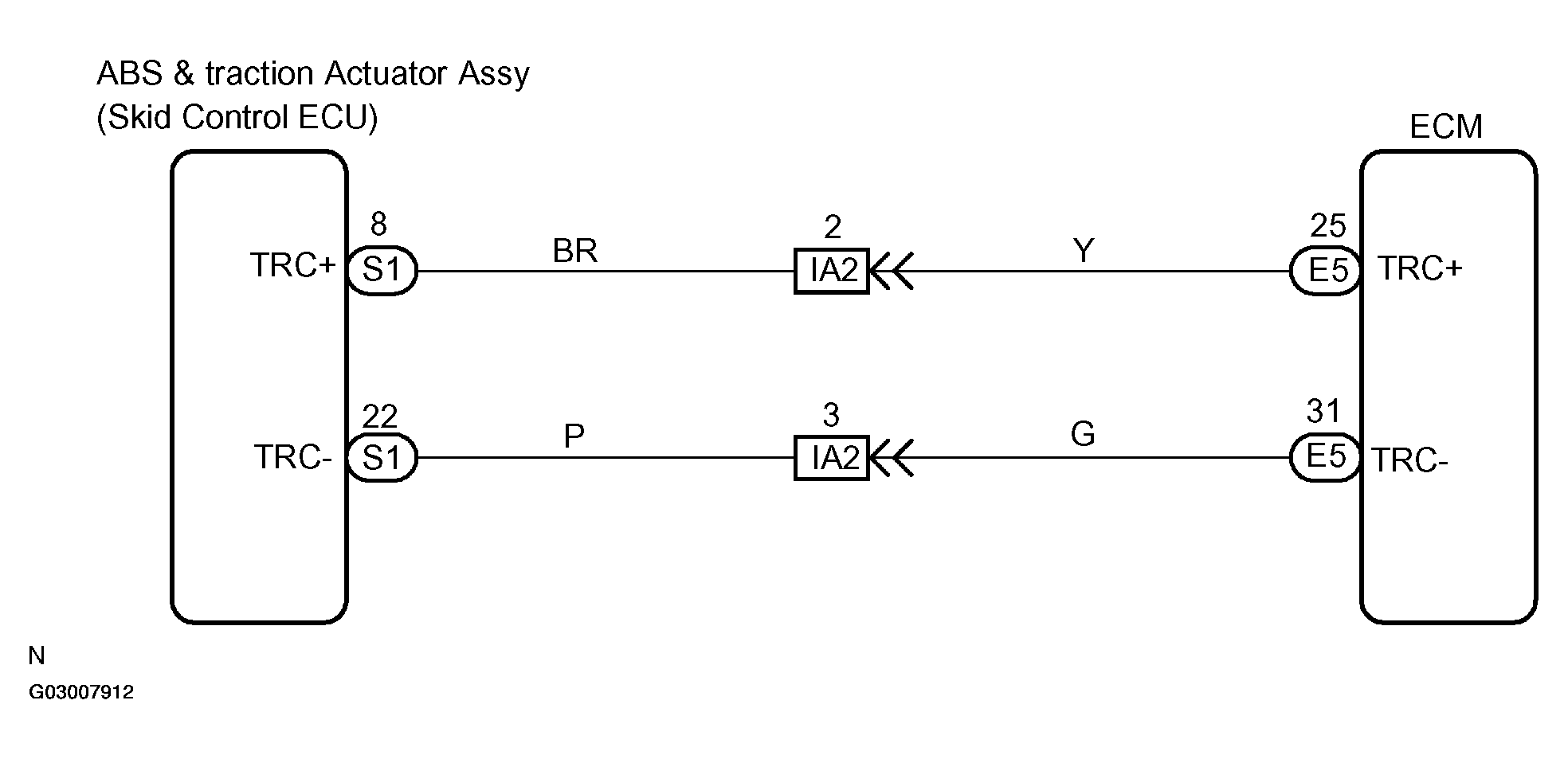

Fig 1: Lost Communication With Vehicle Dynamics Control Module - Wiring Diagram
G03007912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
