Distance Control Switch Circuit: Wiring Diagram

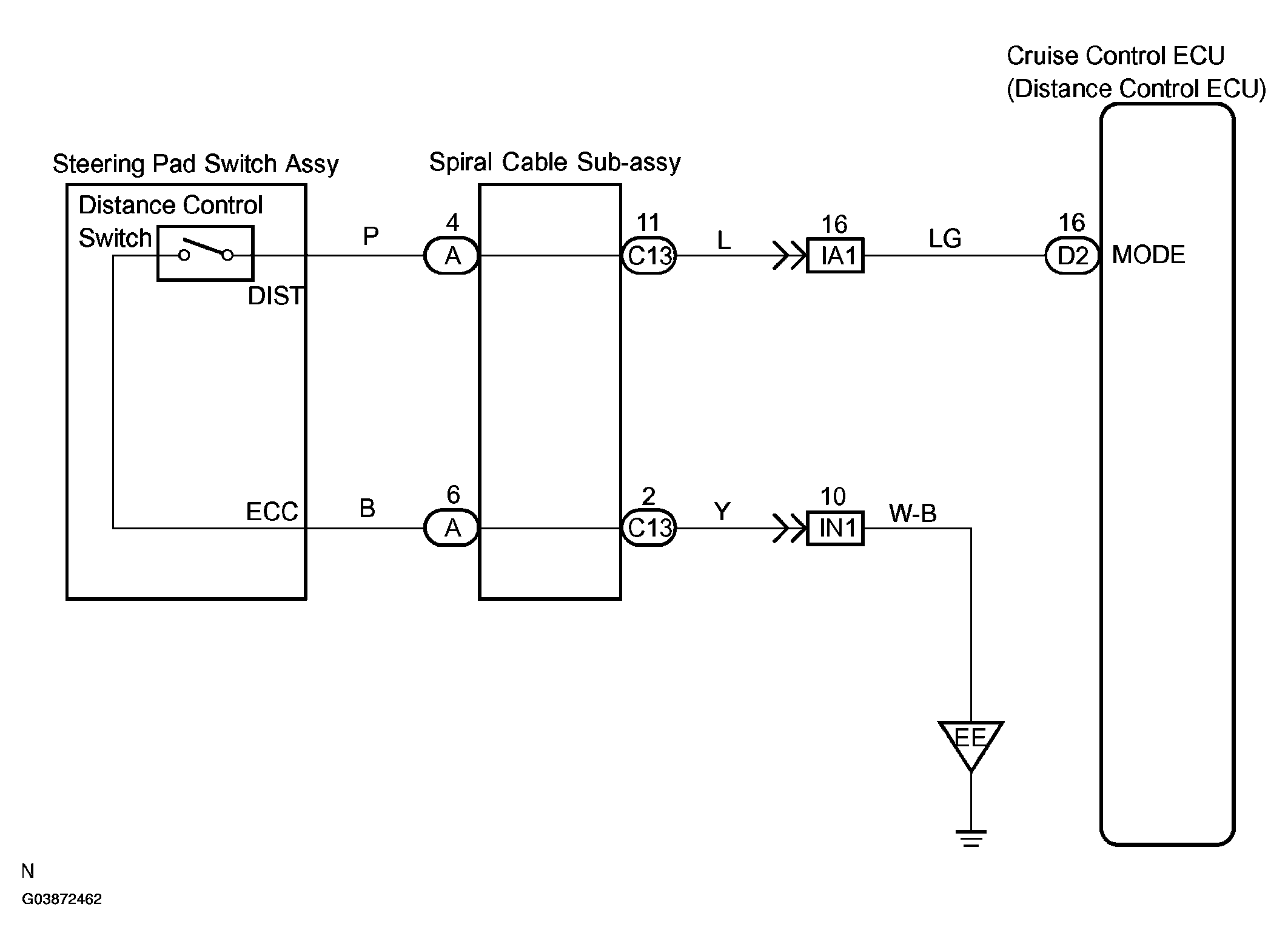

Fig 1: Distance Control Switch Wiring Diagram

G03872462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
