How To Determine Bolt Strength

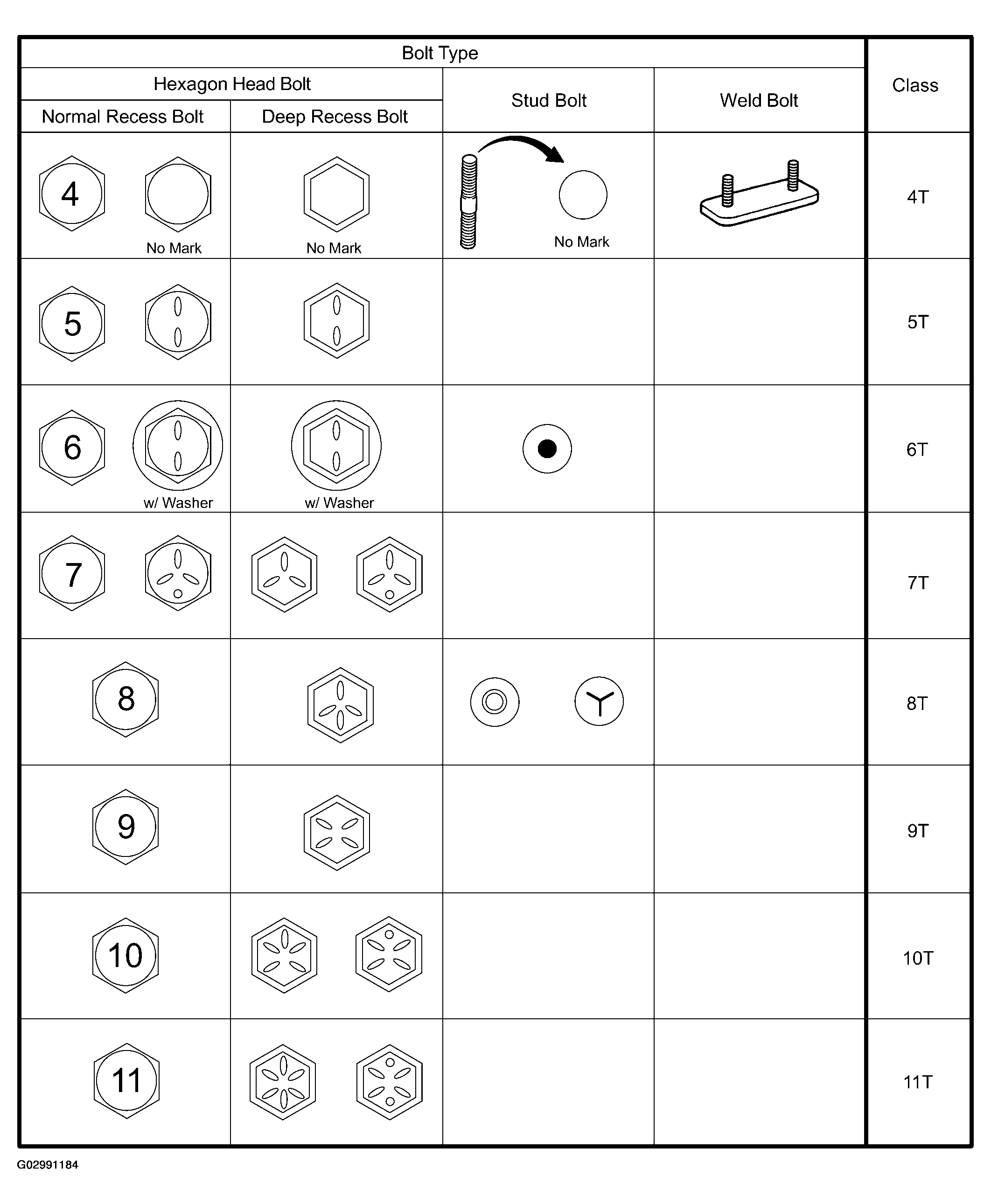

Fig 1: Standard Bolt Specifications

G02991184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
