MIL Circuit: Wiring Diagram

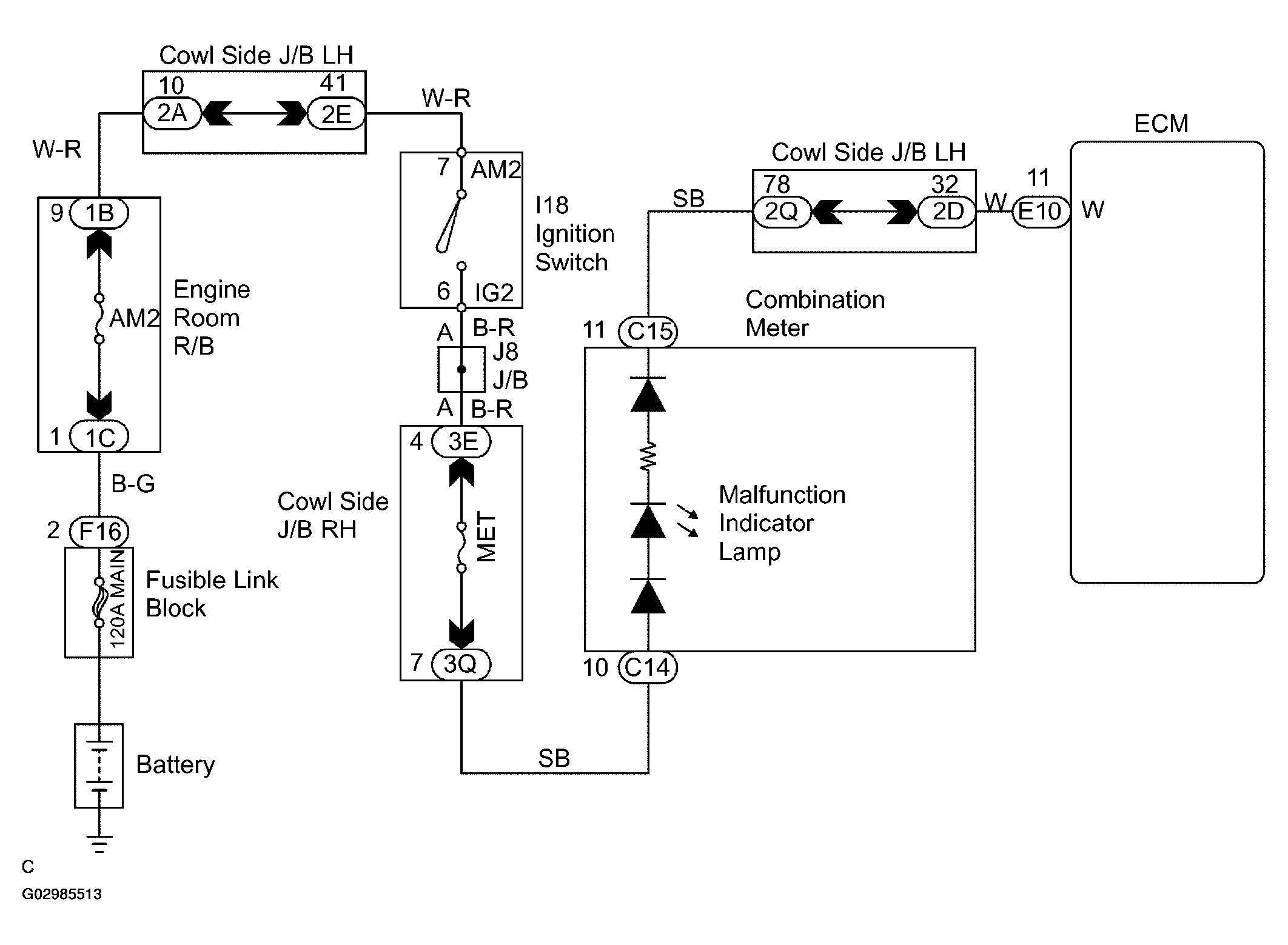

Fig 1: Wiring Diagram - MIL Circuit

G02985513

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
