Power Seat Control Switch Circuit: Wiring Diagram

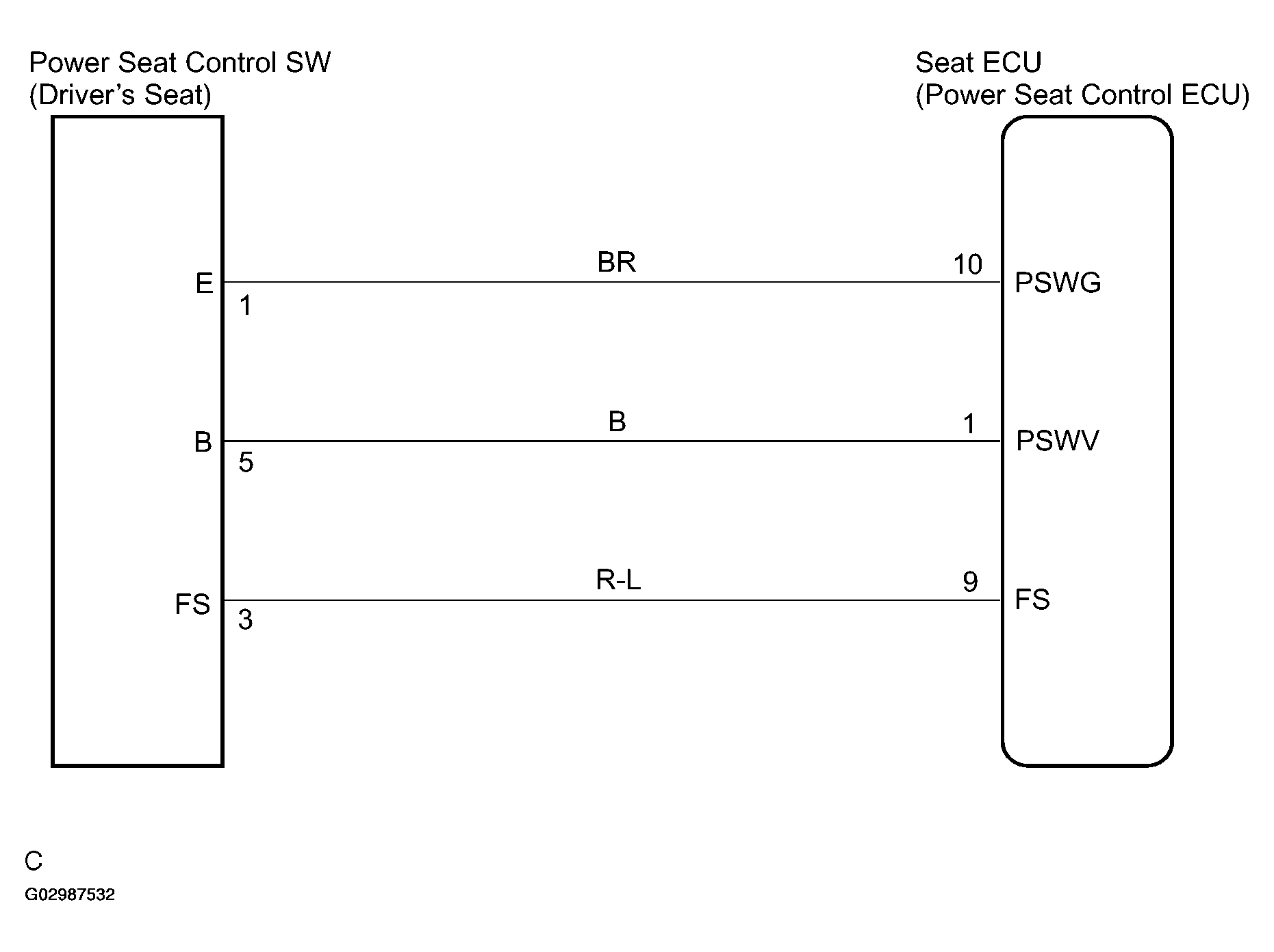

Fig 1: Wiring Diagram - Power Seat Control Switch Circuit

G02987532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
