Power Source Circuit: Wiring Diagram

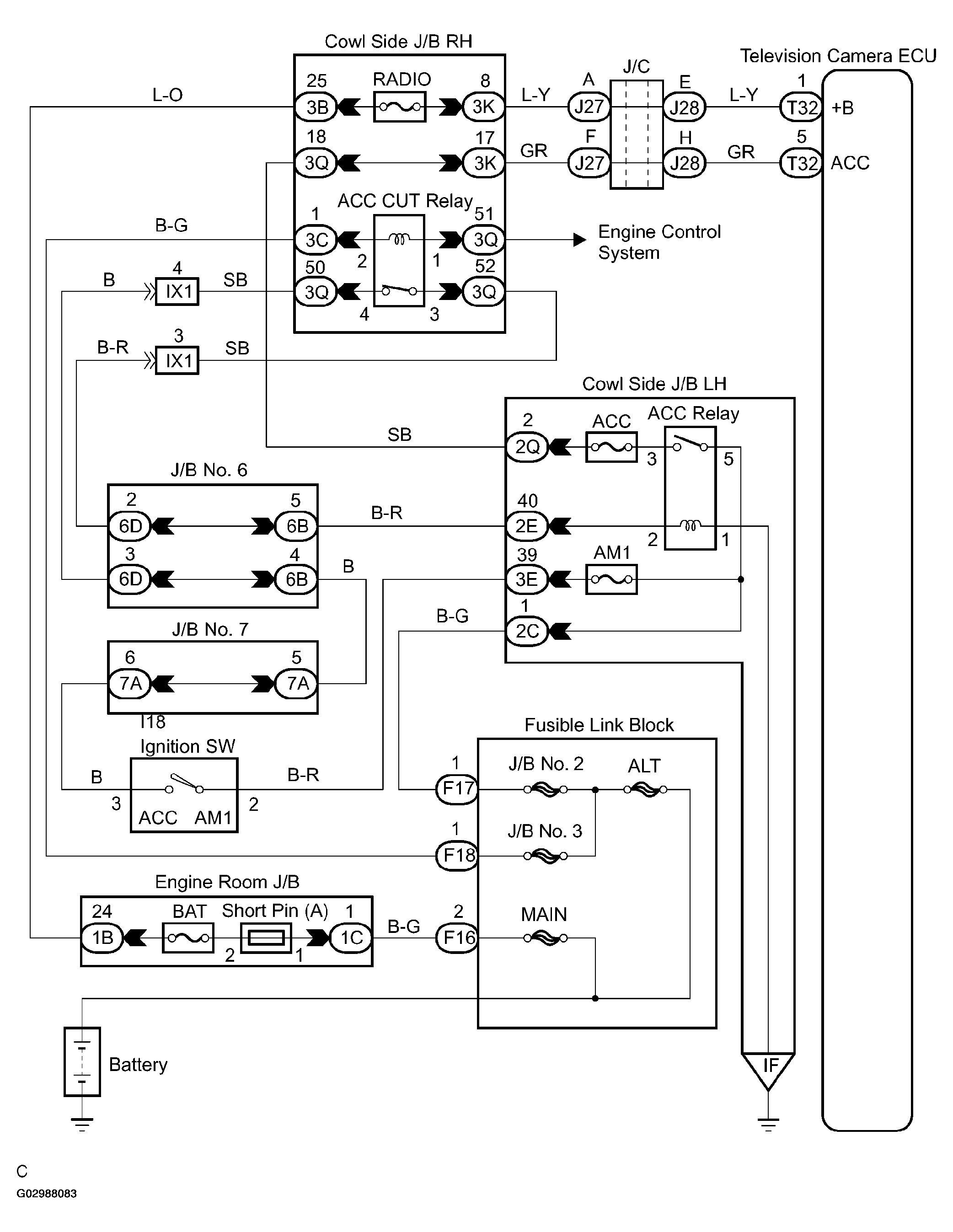

Fig 1: Power Source Circuit - Wiring Diagram

G02988083

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
