Inspection Procedure

CHECK HARNESS AND CONNECTOR (PATTERN SELECT SWITCH ASSY NO. 1 - BODY GROUND)

Disconnect the connector of pattern select switch.
Measure the resistance according to the value(s) in the table below.

Fig 1: Identifying Pattern Select Switch Connector Terminals

G03002507

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

PATTERN SELECT SWITCH NO. 1 - BODY GROUND - RESISTANCE TABLE

Tester Connection	Specified Condition
1 - Body ground	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )

OK: Go to next step

INSPECT PATTERN SELECT SWITCH ASSY NO. 1
1. Measure the resistance according to the value(s) in the table below.
Standard:

Fig 3: Pattern Select Switch Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE PATTERN SELECT SWITCH ASSY NO. 1

OK: Go to next step
CHECK HARNESS AND CONNECTOR (PATTERN SELECT SWITCH ASSY NO. 1 - MULTIPLEX NETWORK BODY ECU)
1. Connect the connector of pattern select switch.
2. Disconnect the passenger side junction block assy (multiplex network body ECU) connector.
3. Measure the resistance between terminal PWR of passenger side junction block assy (multiplex network body ECU) and body ground.
Standard:

Fig 4: Pattern Select Switch Reference Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

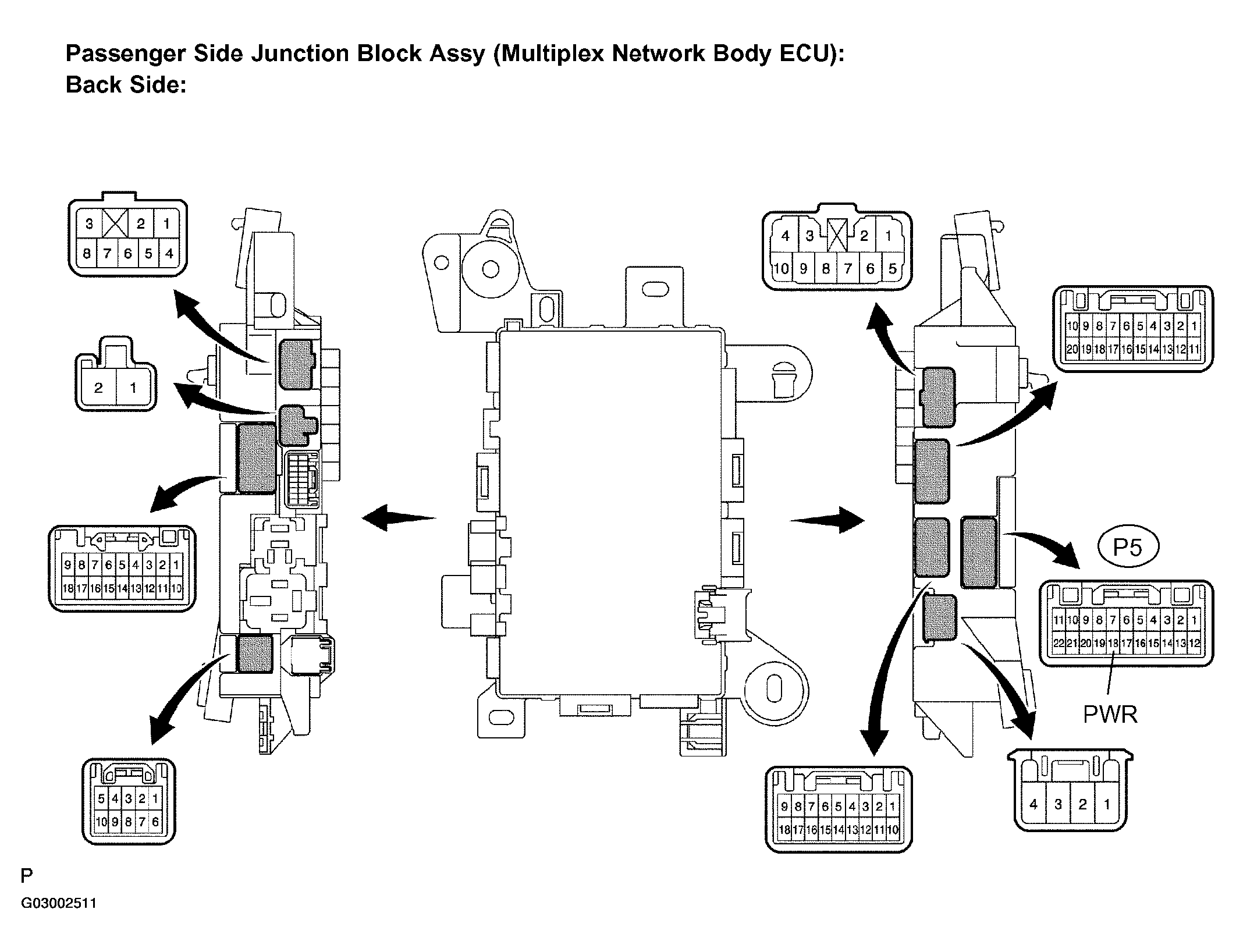

Fig 5: Identifying Passenger Side Junction Block Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE )

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
